Mobile Unit
Lockable Wheels
Disposable Cassette Filter
E12 EPA (EN 1882 Ẽ @ MPPS ≤ 99.5%)
Activated Carbon Filter
3,3 kg

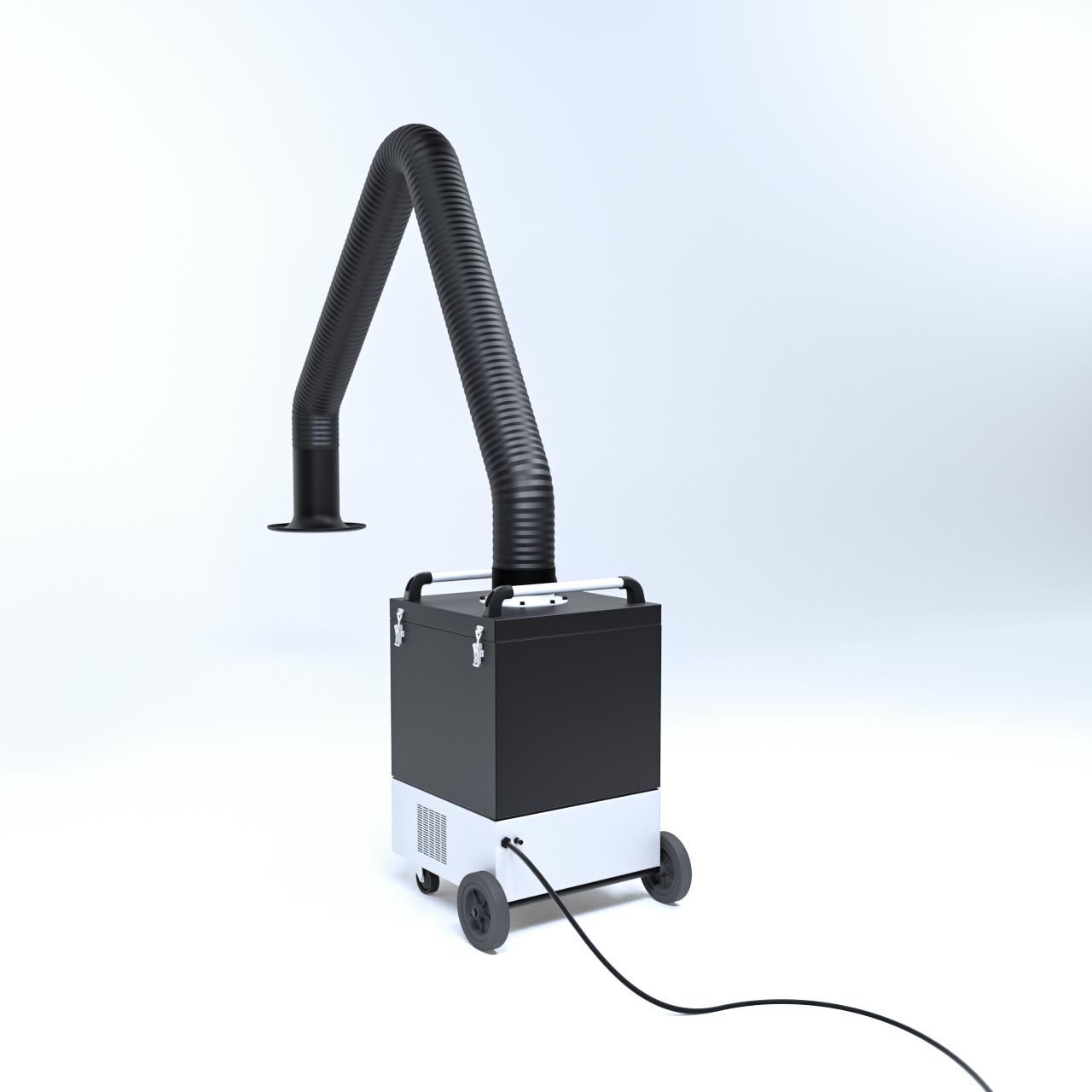

2m Single Acrobat Arm
150 mm Flange Diameter
Applications
- Suitable for filtering odors and fumes generated during processes such as industrial laser applications, laser marking, laser machining, laser cleaning, laser engraving, and laser etching.
- Filters toxic CO2 gases and micro-particles emitted during laser engraving applications (up to 150W max).
- Ensures strong suction with a high-stability, internally articulated extraction arm.
- Compatible with the processing of non-alloyed, low-alloyed, and high-alloyed steels.
- Suitable for low-level (ePM1 90%) fume filtration during laser marking.
- Provides optimal suction and filtration power for laser pantograph and dot peen marking.
- Delivers OHS / HSE-compliant fume extraction and filtration during laser welding.
- Absorbs and filters odor molecules with its Activated Carbon Filter during laser welding and laser marking etc.
Features
- Communicates with your PLC panel via the communication socket on the control panel, allowing remote control and energy-saving by preventing continuous operation.
- Operates integrated with the laser unit system like laser gun or laser welding torch, offering remote control for odor and fume filtration.

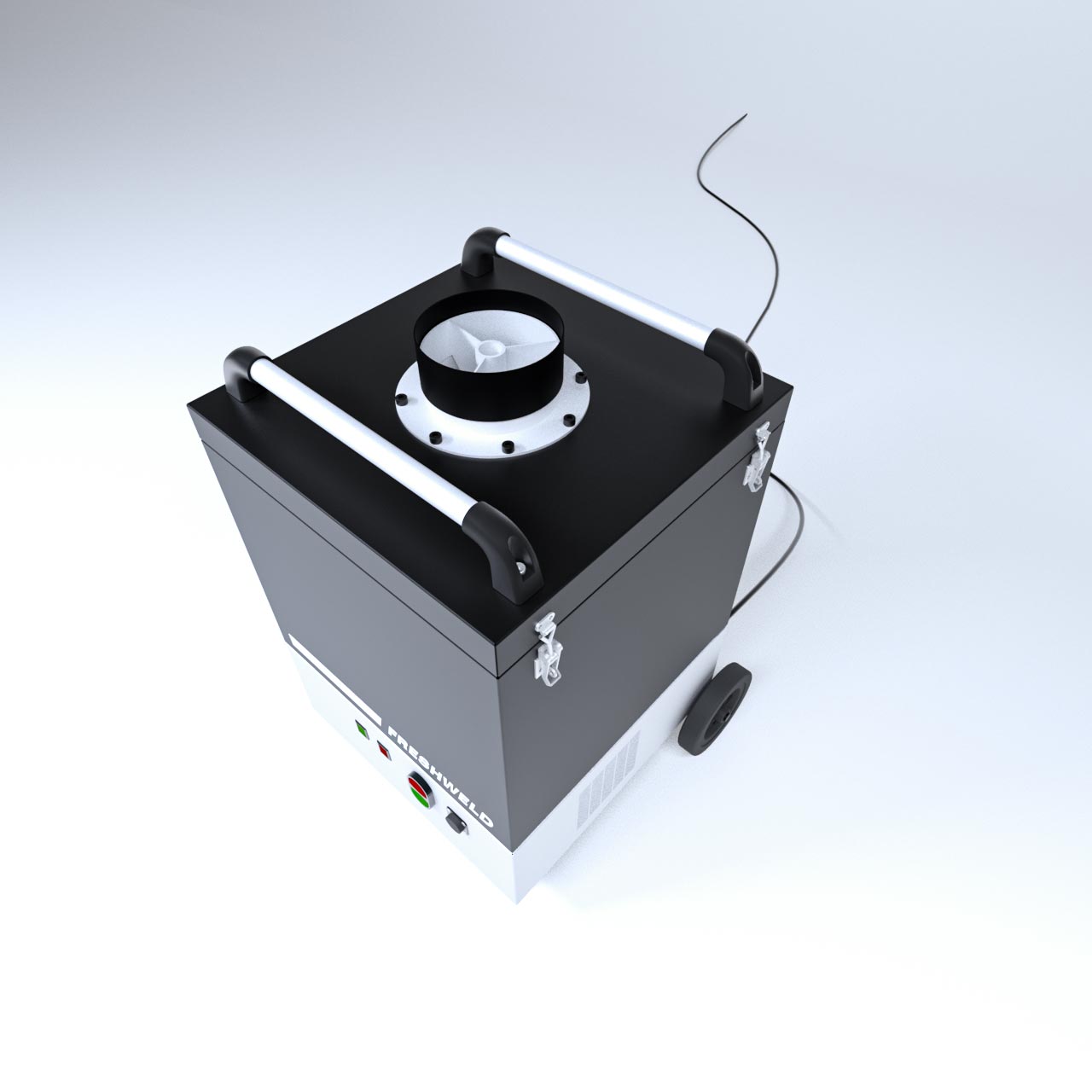

- Quick, practical, and easy filter replacement thanks to the hinged top cover.
- Maintenance is minimized with the filter dirt alert, ensuring downtime is reduced to filter changes only.
- Recirculates breathable air back into the environment without requiring additional exhaust systems.
- Minimizes fire risk caused by sparks with its washable aluminum mesh pre-filter (see Filter Maintenance Guide).
- Can be fitted with suction hoses of desired length (up to 10 meters max).
- Easily mountable with a Ø102 mm flange size.
- Equipped with swivel wheels for easy transportation.
- Lockable front wheels for stability.
- Provides quiet and flawless movement with polyamide-rimmed tires.
- Includes a 3-meter power cable.
Product Leaflet
L1/150 Content is being prepared!
| L1/150 SERIES | INLET | max. FAN CAPACITY @740 Pa | MOTOR POWER | VOLUMETRIC AIRFLOW | FILTRATION STAGE | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (Ø) -mm | (m³/h) | (kW) | (m³/h) | 1° | 2° | 3° | W | L | H | (kg) |
| 104WL11500 | 150 | 1200 | 0,55 | 850 | G1 Mesh | E12 – 14m² | Activated Carbon – 3,3 kg | 480 | 480 | 830 | 55 |
| 104WL11502 | with 2m Arm | 1200 | 0,55 | 800 | G1 Mesh | E12 – 14m² | Activated Carbon – 3,3 kg | 480 | 480 | 830 | 65 |

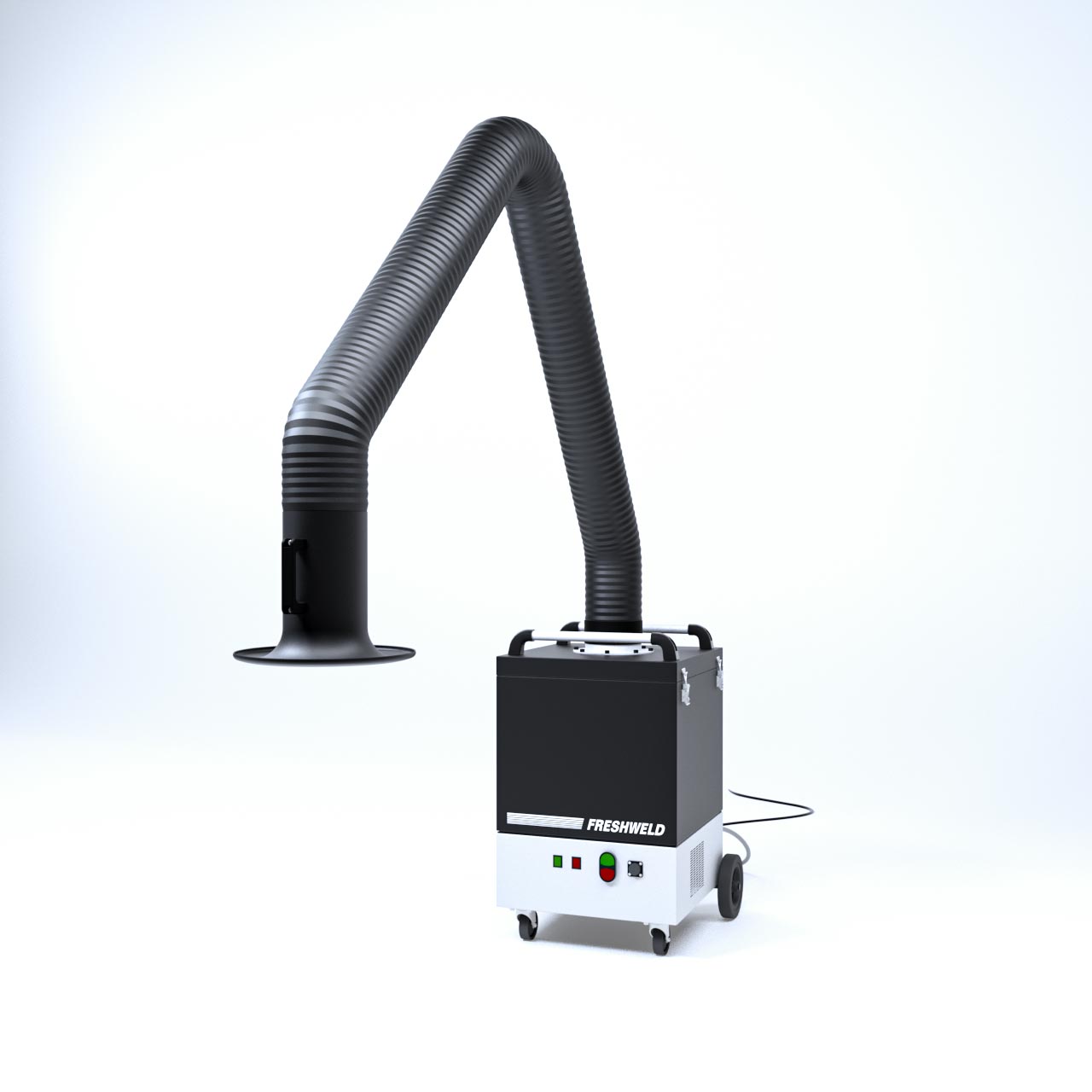

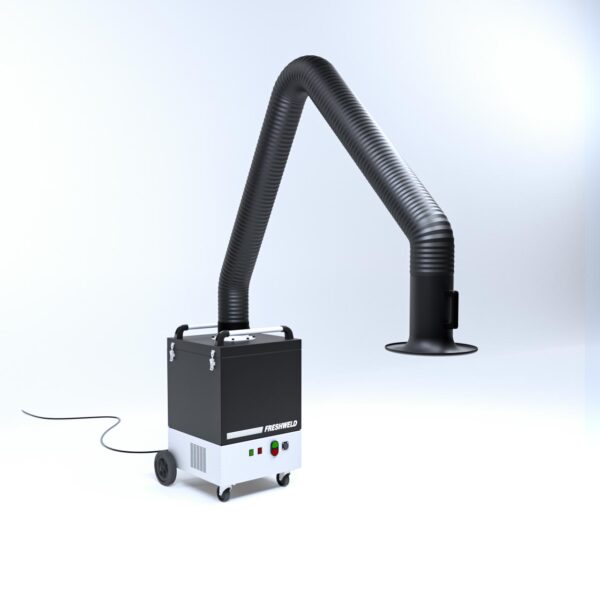

Laser Welding / Marking Filter with Fume Extraction Arm
Solution to Laser Welding Fume and / or Laser Marking Odor problems in industrial applications with acrobat arm smoke suction filter in OHS / HSE Standards!
