Stationary Unit
Provides Space Advantage
Single Acrobat Arm
Length Options
Activated Carbon Filter
Odor and Gas Retention
Usage Areas
- Stationary Fume Extractor with Activated Carbon Filter. Single Acrobat Arm
- Designed to filter fume,dust and vapour occured during welding and chemical applications
- Suitable for unalloyed,low alloyed and high alloyed steel welding
- Suitable for filtering vapour occured during light level of chemical applications
- Proper to use for suction of odor molecules as well
Specifications
- Stationary Fume Extractors are easy to use in workshops which has limited spaces
- Reachable to desired area thanks to its flexible arm structure
- Fully complies with EU Machinery Safety Regulation
- Minimizing the loss of worktime by carrying out the maintenance only during filter change time thanks to the filter indicator buttons
- Minimizing the risk of fire related to the sparks thanks to its aluminium spark arrestor
- If the phase sequence is wrong or there is a missing phase, the device will not work and the motor will be protected from burning
- If the fan turns in the opposite direction, the warning lamp comes on.
- Easy access thanks to external control panel
Product LEAFLET
SMK/910 PDF click to download file
| SMK/910 | EXTRACTION ARM LENGTH | max. FAN CAPACITY @1250 Pa | MOTOR POWER | VOLUMETRIC AIRFLOW | FILTRATION STAGE | DIMENSIONS (mm) | WEIGHT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m) | (m³/h) | (kW) | (m³/h) | 1° | 2° | 3° | 4° | W | L | H | (kg) |
| 221SMK9100 | w/o Arm | 3500 | 1,5 | 1600 | G2 Mesh | G4 Coarse | F9 – 25m² | Activated Carbon – 12 kg | 650 | 750 | 1285 | 122 |
| 221SMK9102 | 1 x 2 | 3500 | 1,5 | 1400 | G2 Mesh | G4 Coarse | F9 – 25m² | Activated Carbon – 12 kg | 650 | 750 | 1285 | 132 |
| 221SMK9103 | 1 x 3 | 3500 | 1,5 | 1400 | G2 Mesh | G4 Coarse | F9 – 25m² | Activated Carbon – 12 kg | 650 | 750 | 1285 | 139 |
| 221SMK9104 | 1 x 4 | 3500 | 1,5 | 1300 | G2 Mesh | G4 Coarse | F9 – 25m² | Activated Carbon – 12 kg | 650 | 750 | 1285 | 143 |
| 222SMK9100 | w/o Arm | 3500 | 1,5 | 1600 | G2 Mesh | G4 Coarse | E12 – 40m² | Activated Carbon – 12 kg | 650 | 750 | 1285 | 122 |
| 222SMK9102 | 1 x 2 | 3500 | 1,5 | 1400 | G2 Mesh | G4 Coarse | E12 – 40m² | Activated Carbon – 12 kg | 650 | 750 | 1285 | 132 |
| 222SMK9103 | 1 x 3 | 3500 | 1,5 | 1400 | G2 Mesh | G4 Coarse | E12 – 40m² | Activated Carbon – 12 kg | 650 | 750 | 1285 | 139 |
| 222SMK9104 | 1 x 4 | 3500 | 1,5 | 1300 | G2 Mesh | G4 Coarse | E12 – 40m² | Activated Carbon – 12 kg | 650 | 750 | 1285 | 143 |
You can review this model in real-world with using AR mode. Use your phone or tablet for better and realistic performance.

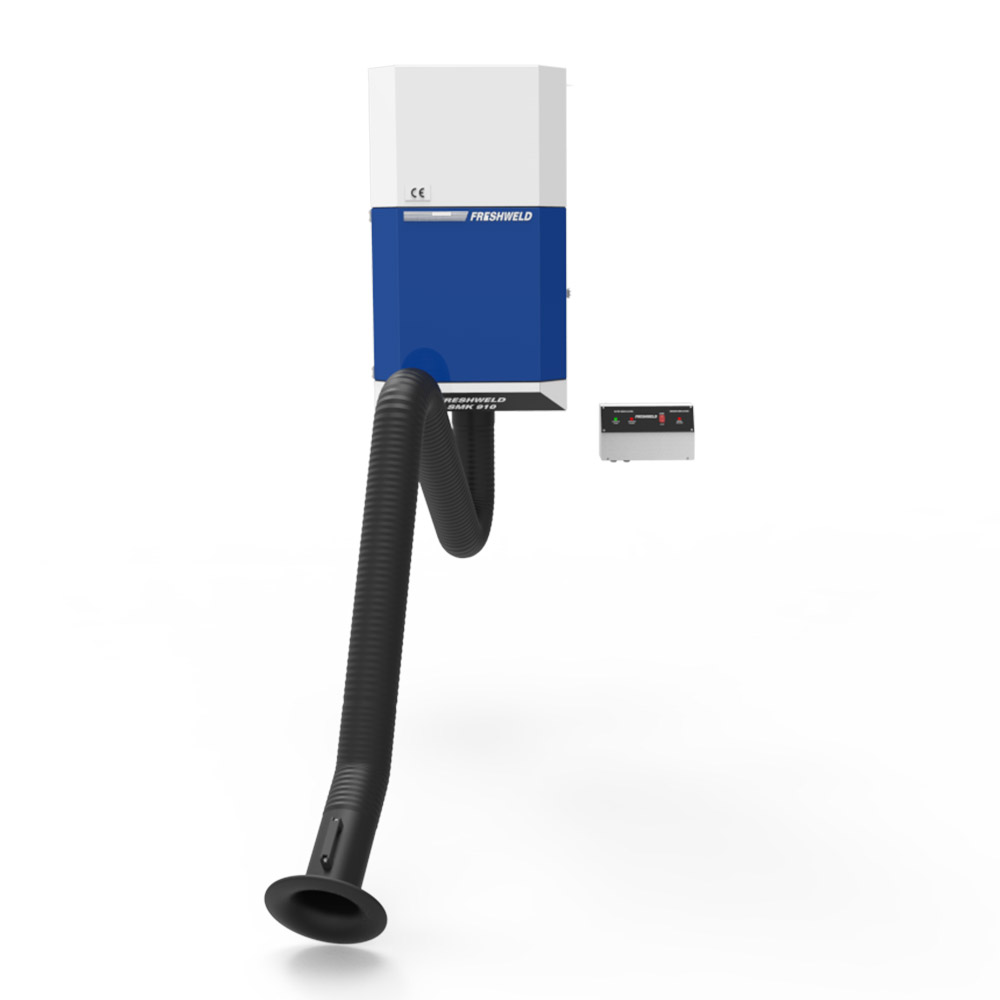

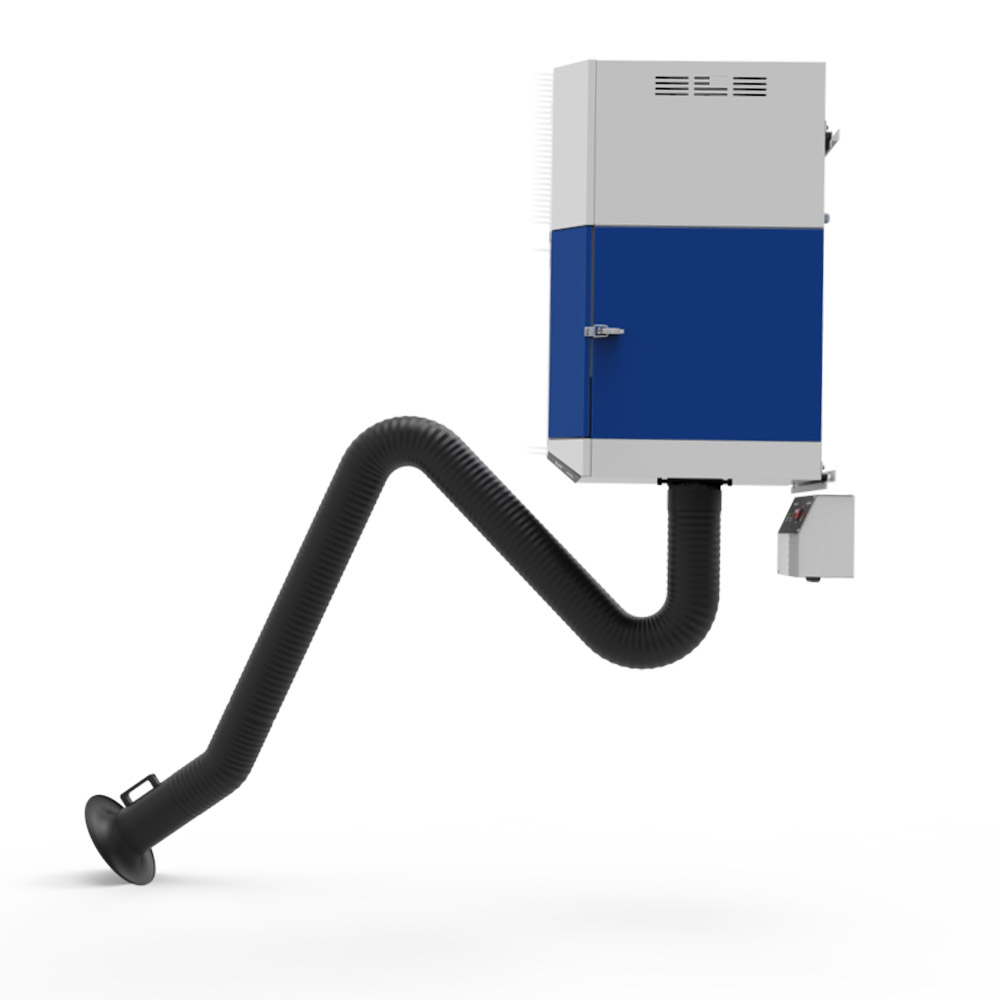

SMK/910 Stationary Fume Extractor with Activated Carbon Filter – 2025 – FRESHWELD
Stationary Fume Extractor with Active Carbon Filter. Single Acrobat Arm. Designed to filter the fume, dust and vapour occured during welding and chemical applications. Suitable for filtering vapour occured during light level of chemical applications Proper to use for suction of odour molecules as well.
Product SKU: -
Product Brand: FRESHWELD
Product Currency: EUR
Product Price: 0.00
Product In-Stock: PreOrder
