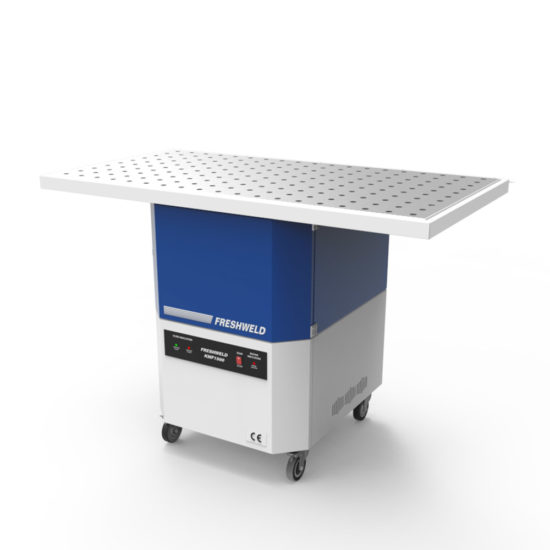

Welding Table
Downdraft Table, Size Options Available
Mobile Unit
Lockable Wheels
Disposable Cassette Filter
F9 Fine Filter • 95 ≤ Em (EN 779)
Usage Areas
- Mobile, Disposable Filtered Downdraft Extraction Tables for welding fumes, Grinding and Leveling dust and more.
- Designed for filtering fume occured during welding applications
- Possible to use to prevent spreading fine dust occured during grinding applications to the area
- Suitable for filtering low and medium level of fume
Specifications
- Movable thanks to its wheeled structure
- Fume and dust are extracted before reaching to operator’s respiratory tract thanks to downdraft extraction table
- Fully complies with European Machinery Safety Regulation
- Minimizing the loss of worktime by carrying out the maintenance only during filter change time thanks to the filter indicator buttons
- Minimizing the risk of fire related to the sparks thanks to its washable aluminium mesh pre filter
- If the phase sequence is wrong or there is a missing phase, the downdraft extraction table will not work and the motor will be protected from burning
- If the fan turns in the opposite direction, the warning lamp comes on
- 3 m feeding cable
Product LEAFLET
KMF Series PDF click to download file
| KMF SERIES | TABLE DIMENSIONS | AIRFLOW | MOTOR POWER | FILTRATION STAGES | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (mm) | (m³/h) | (kW) | 1° | 2° | 3° | W | L | H | (kg) |
| 301KMF1000 | 800×1000 | 1300 | 1,5 | G2 Mesh | G4 Coarse | F9 – 25m² | 800 | 1000 | 1030 | 120 |
| 301KMF1250 | 800X1200 | 1300 | 1,5 | G2 Mesh | G4 Coarse | F9 – 25m² | 800 | 1200 | 1030 | 125 |
| 301KMF1500 | 800×1500 | 1300 | 1,5 | G2 Mesh | G4 Coarse | F9 – 25m² | 800 | 1500 | 1030 | 130 |
| 302KMF1000 | 800×1000 | 1300 | 1,5 | G2 Mesh | G4 Coarse | E12 – 40m² | 800 | 1000 | 1030 | 120 |
| 302KMF1250 | 800X1200 | 1300 | 1,5 | G2 Mesh | G4 Coarse | E12 – 40m² | 800 | 1200 | 1030 | 125 |
| 303KMF1500 | 800×1500 | 1300 | 1,5 | G2 Mesh | G4 Coarse | E12 – 40m² | 800 | 1500 | 1030 | 130 |
| SHIELD OPTIONS | INTEGRATED | SHIELD TYPE | SHIELD HEIGHT | DIMENSIONS (mm) | |||
|---|---|---|---|---|---|---|---|
| FW CODE | VERSION | VERSION FW CODE | (mm) | W | L | H | |
| 311SPR1040 | KMF/1000 | 301KMF1000 | BLACK SHIELD | 400 | 800 | 1000 | 400 |
| 31SPRP1040 | KMF/1000 | 301KMF1000 | SHIELD WITH RED PLEXI WINDOW | 400 | 800 | 1000 | 400 |
| 311SPR1065 | KMF/1000 | 301KMF1000 | BLACK SHIELD | 650 | 800 | 1000 | 650 |
| 31SPRP1065 | KMF/1000 | 301KMF1000 | SHIELD WITH RED PLEXI WINDOW | 650 | 800 | 1000 | 650 |
| 311SPR1240 | KMF/1250 | 301KMF1250 | BLACK SHIELD | 400 | 800 | 1200 | 400 |
| 31SPRP1240 | KMF/1250 | 301KMF1250 | SHIELD WITH RED PLEXI WINDOW | 400 | 800 | 1200 | 400 |
| 311SPR1265 | KMF/1250 | 301KMF1250 | BLACK SHIELD | 650 | 800 | 1200 | 650 |
| 31SPRP1265 | KMF/1250 | 301KMF1250 | SHIELD WITH RED PLEXI WINDOW | 650 | 800 | 1200 | 650 |
| 311SPR1540 | KMF/1500 | 301KMF1500 | BLACK SHIELD | 400 | 800 | 1500 | 400 |
| 31SPRP1540 | KMF/1500 | 301KMF1500 | SHIELD WITH RED PLEXI WINDOW | 400 | 800 | 1500 | 400 |
| 311SPR1565 | KMF/1500 | 301KMF1500 | BLACK SHIELD | 650 | 800 | 1500 | 650 |
| 31SPRP1565 | KMF/1500 | 301KMF1500 | SHIELD WITH RED PLEXI WINDOW | 650 | 800 | 1500 | 650 |
KMF Downdraft Extraction Table with Disposable Filter – 2024 – FRESHWELD
Mobile, Disposable Filtered Downdraft Extraction Tables for welding fumes, Grinding and Leveling dust and more. Possible to use to prevent spreading fine dust occured during grinding applications to the area
