Mobile Unit
Lockable Wheels
Single Acrobat Arm
Length Options
Disposable Filter
ePM1 65% (F8 – Cassette)
Usage Areas

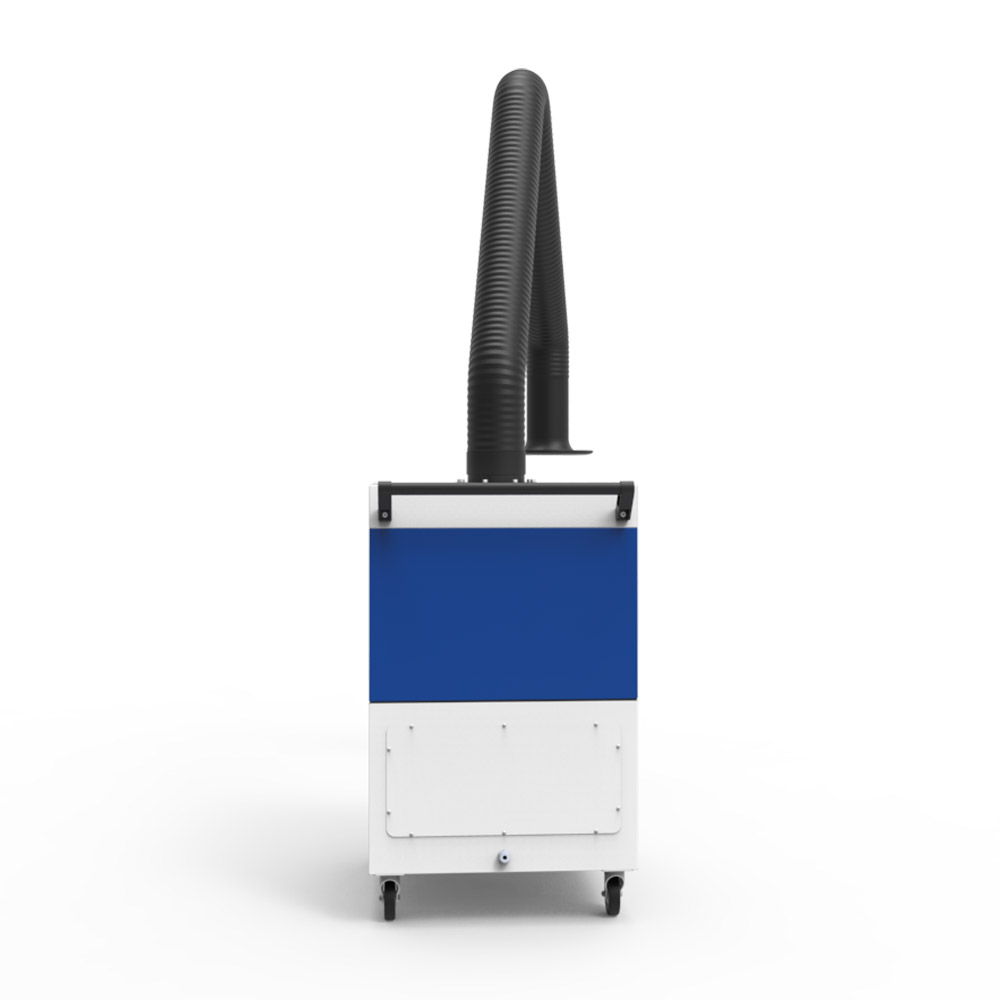

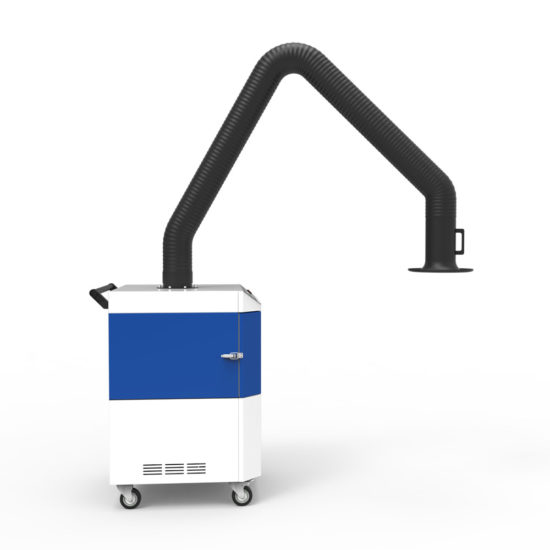

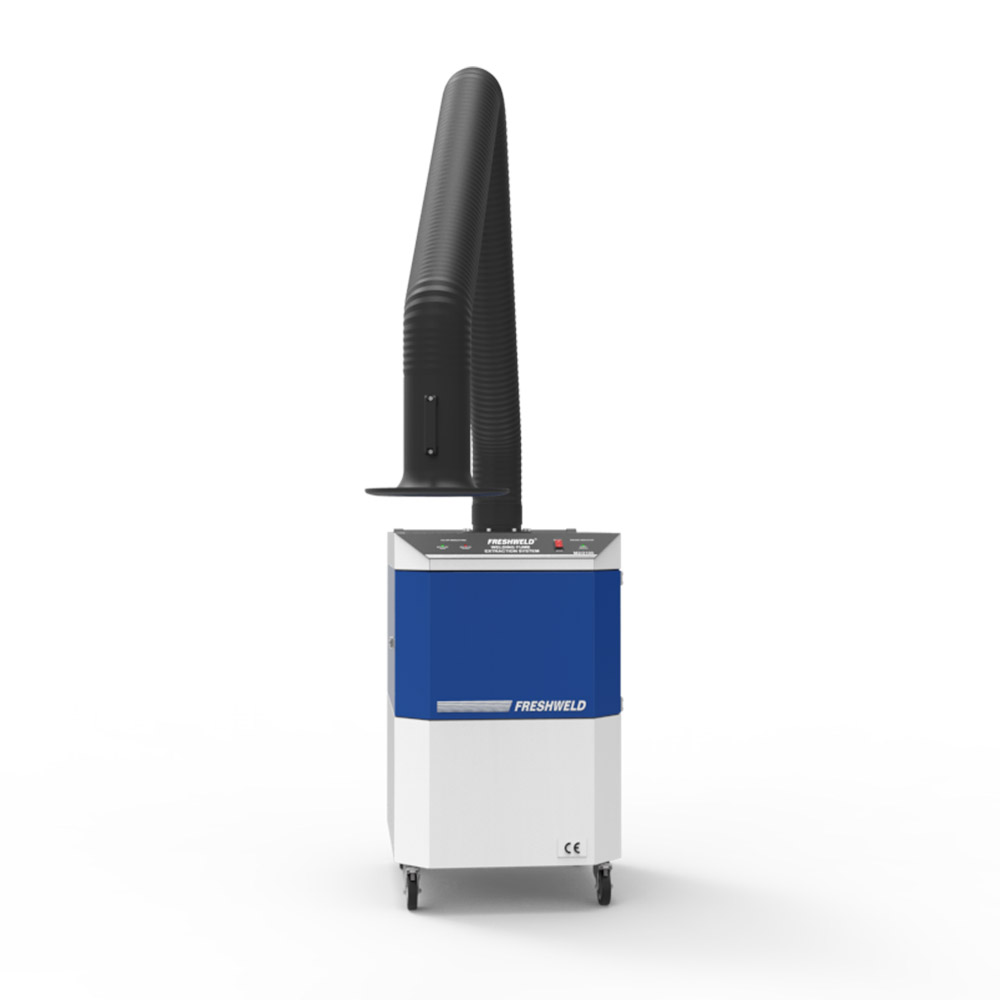

- Mobile Fume Extractor with Disposable Filter. Single Acrobat Arm
- Designed for filtering fume and fine dust occured during welding process
- Suitable for processing unalloyed and low-alloy steel
- Suitable for filtering low and medium level of fume and dust
Specifications
- Movable thanks to its wheeled structure
- Reachable to desired area thanks to its flexible arm structure
- Fully complies with European Machinery Safety Regulation
- Minimizing the loss of worktime by carrying out the maintenance only during filter change time thanks to the filter indicator buttons
- Minimizing the risk of fire related to the sparks thanks to its aluminium spark arrestor
- If the phase sequence is wrong or there is a missing phase, the device will not work and the motor will be protected from burning
- If the fan turns in the opposite direction, the warning lamp comes on.
- 3m feeding cable
Product LEAFLET
M2/2100 PDF click to download file
| M2/2100 SERIES | EXTRACTION ARM LENGTH | AIRFLOW | MOTOR POWER | FILTRATION STAGES | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m) | (m³/h) | (kW) | 1° | 2° | 3° | W | L | H | (kg) |
| 111M221000 | w/o Arm | 1300 | 1,1 | G2 Mesh | G4 Coarse | F9 – 25m² | 650 | 750 | 1125 | 96 |
| 111M221002 | 1 x 2 | 1300 | 1,1 | G2 Mesh | G4 Coarse | F9 – 25m² | 650 | 750 | 1125 | 106 |
| 111M221003 | 1 x 3 | 1300 | 1,1 | G2 Mesh | G4 Coarse | F9 – 25m² | 650 | 750 | 1125 | 113 |
| 111M221004 | 1 x 4 | 1300 | 1,1 | G2 Mesh | G4 Coarse | F9 – 25m² | 650 | 750 | 1125 | 117 |
| 112M221000 | w/o Arm | 1300 | 1,1 | G2 Mesh | G4 Coarse | E12 – 40m² | 650 | 750 | 1125 | 96 |
| 112M221002 | 1 x 2 | 1300 | 1,1 | G2 Mesh | G4 Coarse | E12 – 40m² | 650 | 750 | 1125 | 106 |
| 112M221003 | 1 x 3 | 1300 | 1,1 | G2 Mesh | G4 Coarse | E12 – 40m² | 650 | 750 | 1125 | 113 |
| 112M221004 | 1 x 4 | 1300 | 1,1 | G2 Mesh | G4 Coarse | E12 – 40m² | 650 | 750 | 1125 | 117 |
M2/2100 Disposable Filter with Mobile Fume Extractor – 2024
Mobile Fume Extractor with Disposable Filter. Single Acrobat Arm. Suitable for filtering fine dust and fume occured during welding process. Suitable for filtering low or medium level of dust and fume
