Self Cleaning Filter
Double ePM1 90% (F9) Cartridge
Single Acrobat Arm
Inner Joint or Outer Joint
Mobile Unit
Lockable Wheels
Usage Areas
- Self Cleaning Welding Fume Extractor Jet-Pulse F9 Cartridge Filter, Single Acrobatic Arm, Mobile Fume Extraction Unit
- Suitable for the collection of harmful dust released during welded manufacturing applications and for filtering welding fumes containing toxic gases.
- Suitable for toxic gases released during the processing of unalloyed and low alloy steels.
- Suitable for medium density dust and fume filtration.
- It has ideal suction and filtering power.
Features
- 2 pcs, subject to EN779 standard, F9 Cartridge Filter in Precision Filters class for particles between 0.3 ~ 1 μm
- Thanks to the main filter contamination warning, maintenance is performed only during filter change and downtime is minimised.

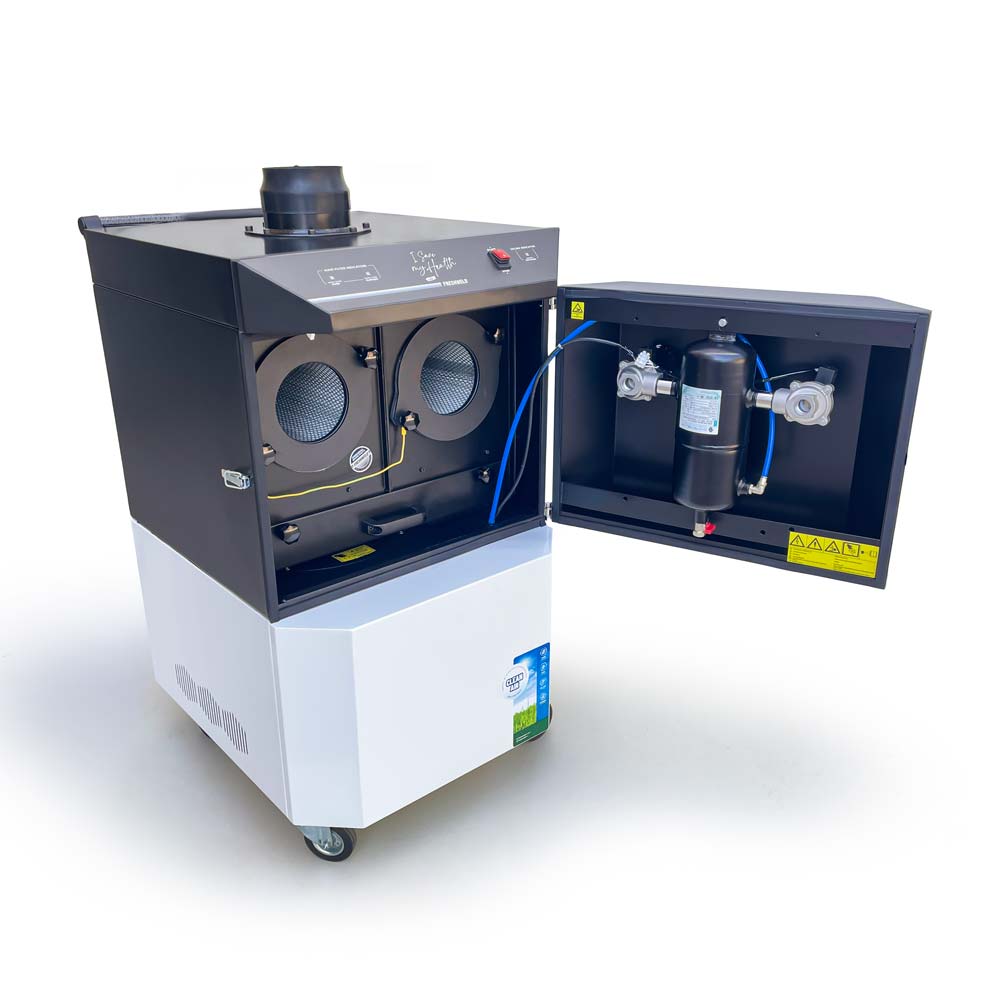

- With Self Cleaning Welding Fume Extractor Jet-Pulse, the filters can be cleaned without removing the filters from the housing and without opening the cover (see: Filter Maintenance Guide)
- The system can clean itself automatically with pressurised air inlet.
- With the waste drawer where dust particles are collected, practical dust disposal is provided without harming the environment.
- Patented front protective cover for fast, practical and easy filter cleaning, filter replacement and waste discharge.
- 10 + 10 = 20m² filter face area with high dust retention rate. (*)

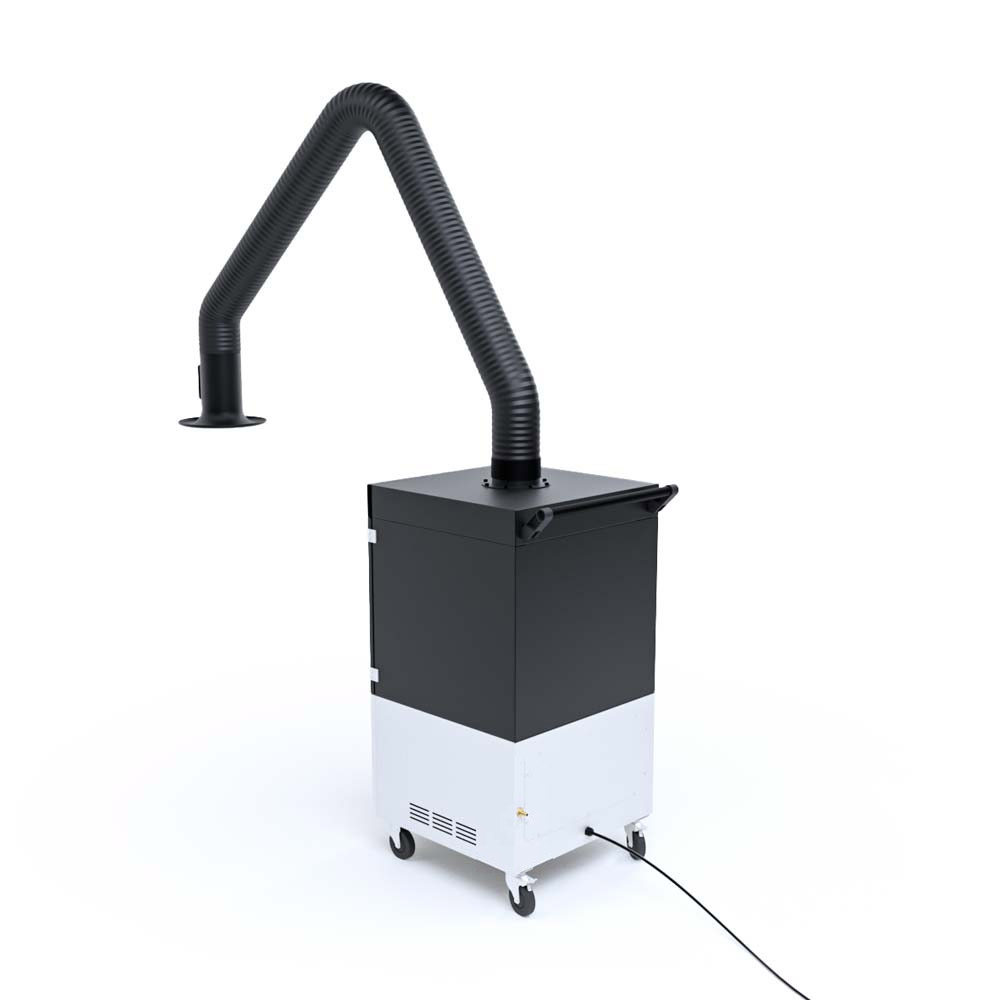

- Acrobatic suction arm with internal articulation up to a maximum length of 4 metres can be ordered
- It can be easily transported to the desired area with its swivelling wheel structure.
- Stability is provided with lockable wheels.
- It provides quiet and smooth driving with Polyamide Rim Tyres.
- 3m supply cable
Product LEAFLET
M5/2100 Content is in preparation
| M5/2100 SERIES | EXTRACTION ARM LENGTH | max. FAN CAPACITY @1250 Pa | MOTOR POWER | VOLUMETRIC AIRFLOW | EXTRACTION ARM | FILTER INFORMATIONS | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m) | (m³/h) | (kW) | (m³/h) | Joint type | Filter type | Class – Area | Cleaning Method | W | L | H | (kg) |
| 151M521000 | w/o Arm | 3000 | 1,1 | 1500 | w/o Arm | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 122 |
| 151M521IJ2 | 1 x 2 | 3000 | 1,1 | 1300 | Internal | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 132 |
| 151M521IJ3 | 1 x 3 | 3000 | 1,1 | 1300 | Internal | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 139 |
| 151M521IJ4 | 1 x 4 | 3000 | 1,1 | 1200 | Internal | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 143 |
| 151M521EJ2 | 1 x 2 | 3000 | 1,1 | 1500 | External | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 134 |
| 151M521EJ3 | 1 x 3 | 3000 | 1,1 | 1500 | External | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 141 |
| 151M521EJ4 | 1 x 4 | 3000 | 1,1 | 1400 | External | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 145 |

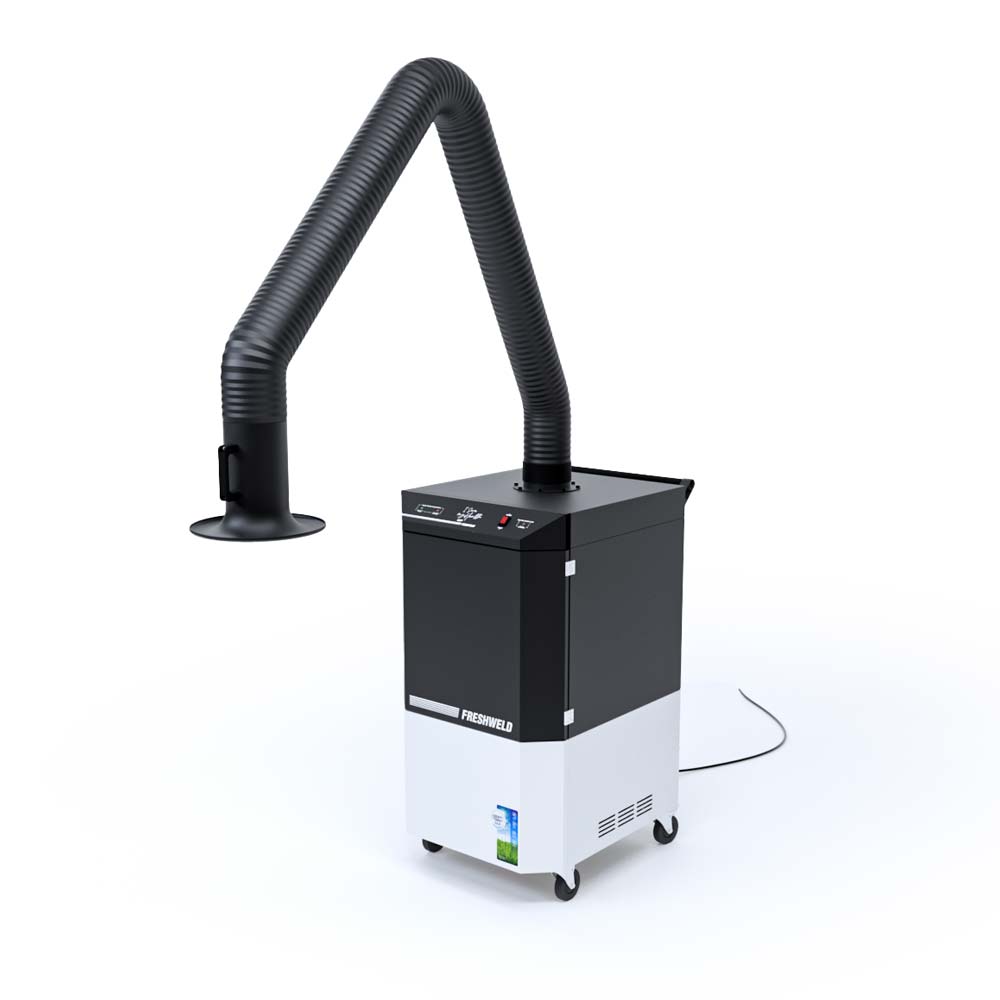

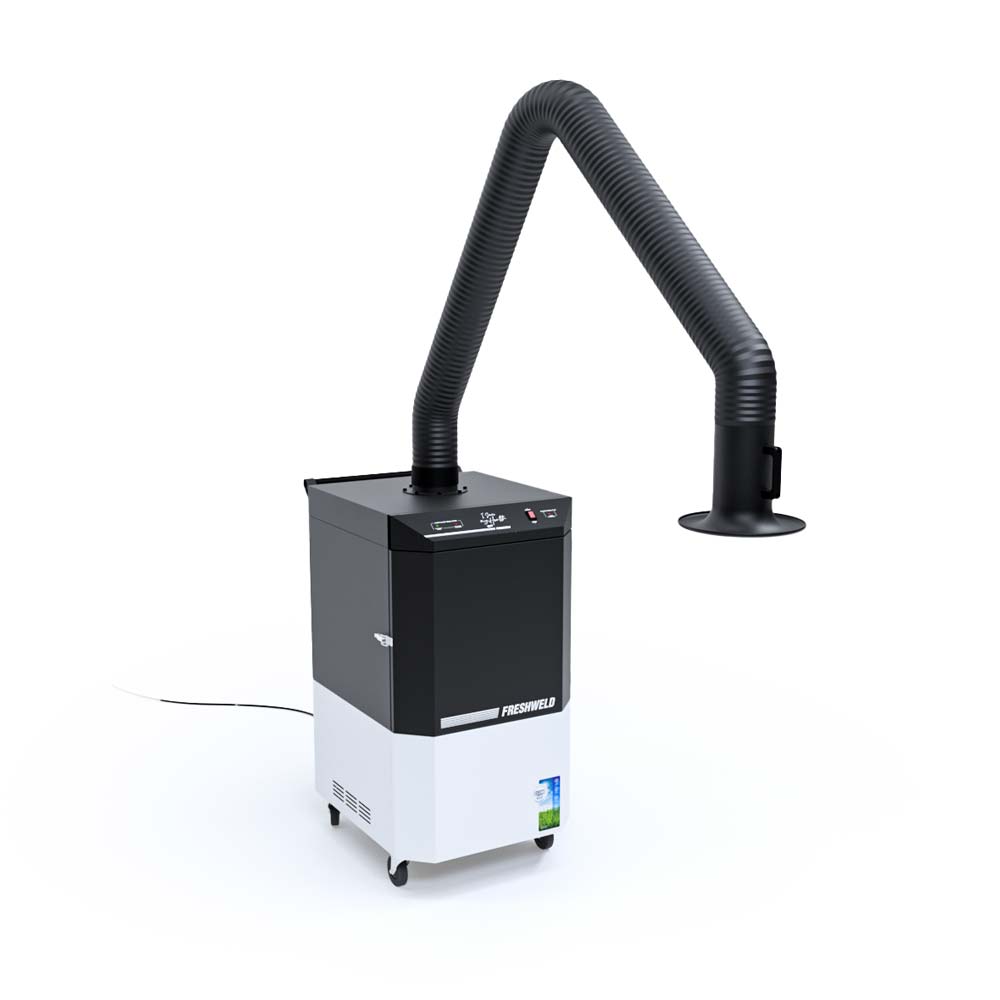

Self Cleaning Welding Fume Extractor M5/2100 (Jet Pulse)
With Jet-Pulse Automatic Self Cleaning Welding Fume Extractor, the filters can be cleaned without removing the filters from the housing and without opening the cover
