Welding and Grinding
Downdraft Workstation
Integrated with Central System
Working Table Without Filter and Fan Motor
Usage Areas
- Stationary, Downdraft Workstation for welding fumes, Grinding Extraction and Leveling dust applications
- Manufactured for Central Workstations with Filtration Systems. No filter and fan systems include in this working table
- Designed for suction of dust occured during grinding applications of small metal parts
- Suitable to use for welding applications
- Suitable for light and coarse level of grinding
Specifications
- Fume and dust are sucked before reaching to operator’s respiratory tract thanks to downdraft extraction
- It supplies safe working environment thanks to its durable material structure
- Easy to clean collected particules thanks to integrated dust tray
- It is comfortable to work with its ergonomic design
- It has long-life with its thick and crom-coated grille
- Could be connected to the central ventilation system
- External filter or fan system could be connected
- Shield options prevent the particules to spread around
Product LEAFLET
KTM Series PDF click to download file
| KTM SERIES | TABLE DIMENSIONS | RECOMMENDED AIRFLOW | PRESSURE DROP | DIMENSIONS (mm) | INLET | ||
|---|---|---|---|---|---|---|---|
| FW SİP. KODU | (mm) | (m³/h) | (Pa) | E | B | Y | (Ø) – mm |
| 321KTM1000 | 850×1000 | 3000 | 500 | 850 | 1000 | 750 | 150-200 |
| 321KTM1250 | 850X1200 | 3500 | 500 | 850 | 1200 | 750 | 150-200 |
| 321KTM1500 | 850×1500 | 4000 | 500 | 850 | 1500 | 750 | 150-200 |
| SHIELD OPTIONS | INTEGRATED | SHIELD TYPE | SHIELD HEIGHT | DIMENSIONS (mm) | |||
|---|---|---|---|---|---|---|---|
| FW CODE | VERSION | VERSION FW CODE | (mm) | W | L | H | |
| 331SPR1040 | KTM/1000 | 321KTM1000 | BLACK SHIELD | 400 | 850 | 1000 | 400 |

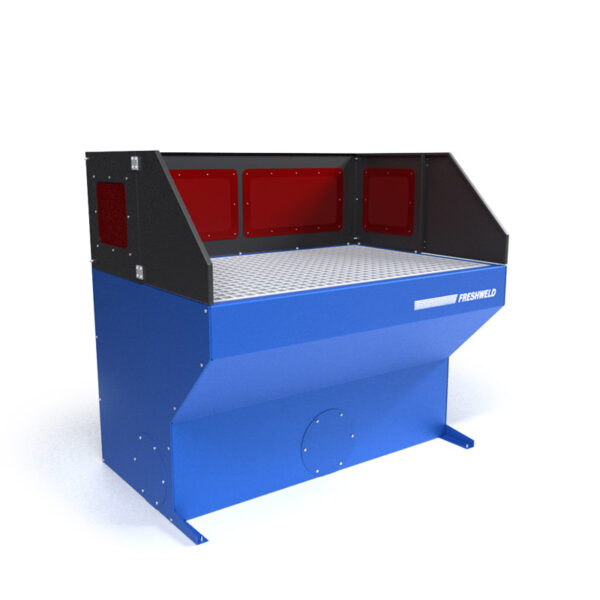

| 33SPRP1040 | KTM/1000 | 321KTM1000 | SHIELD WITH RED PLEXI WINDOW | 400 | 850 | 1000 | 400 |
| 331SPR1065 | KTM/1000 | 321KTM1000 | BLACK SHIELD | 650 | 850 | 1000 | 650 |
| 33SPRP1065 | KTM/1000 | 321KTM1000 | SHIELD WITH RED PLEXI WINDOW | 650 | 850 | 1000 | 650 |
| 331SPR1240 | KTM/1250 | 321KTM1250 | BLACK SHIELD | 400 | 850 | 1200 | 400 |
| 33SPRP1240 | KTM/1250 | 321KTM1250 | SHIELD WITH RED PLEXI WINDOW | 400 | 850 | 1200 | 400 |
| 331SPR1265 | KTM/1250 | 321KTM1250 | BLACK SHIELD | 650 | 850 | 1200 | 650 |
| 33SPRP1265 | KTM/1250 | 321KTM1250 | SHIELD WITH RED PLEXI WINDOW | 650 | 850 | 1200 | 650 |
| 331SPR1540 | KTM/1500 | 321KTM1500 | BLACK SHIELD | 400 | 850 | 1500 | 400 |
| 33SPRP1540 | KTM/1500 | 321KTM1500 | SHIELD WITH RED PLEXI WINDOW | 400 | 850 | 1500 | 400 |
| 331SPR1565 | KTM/1500 | 321KTM1500 | BLACK SHIELD | 650 | 850 | 1500 | 650 |
| 33SPRP1565 | KTM/1500 | 321KTM1500 | SHIELD WITH RED PLEXI WINDOW | 650 | 850 | 1500 | 650 |
KTM Downdraft Workstation for Central Systems – 2024
Stationary, Downdraft Workstation for welding fumes, Grinding and Leveling dust applications. Manufactured for Central Filtration Systems. No filter and fan systems include in this wokstation
