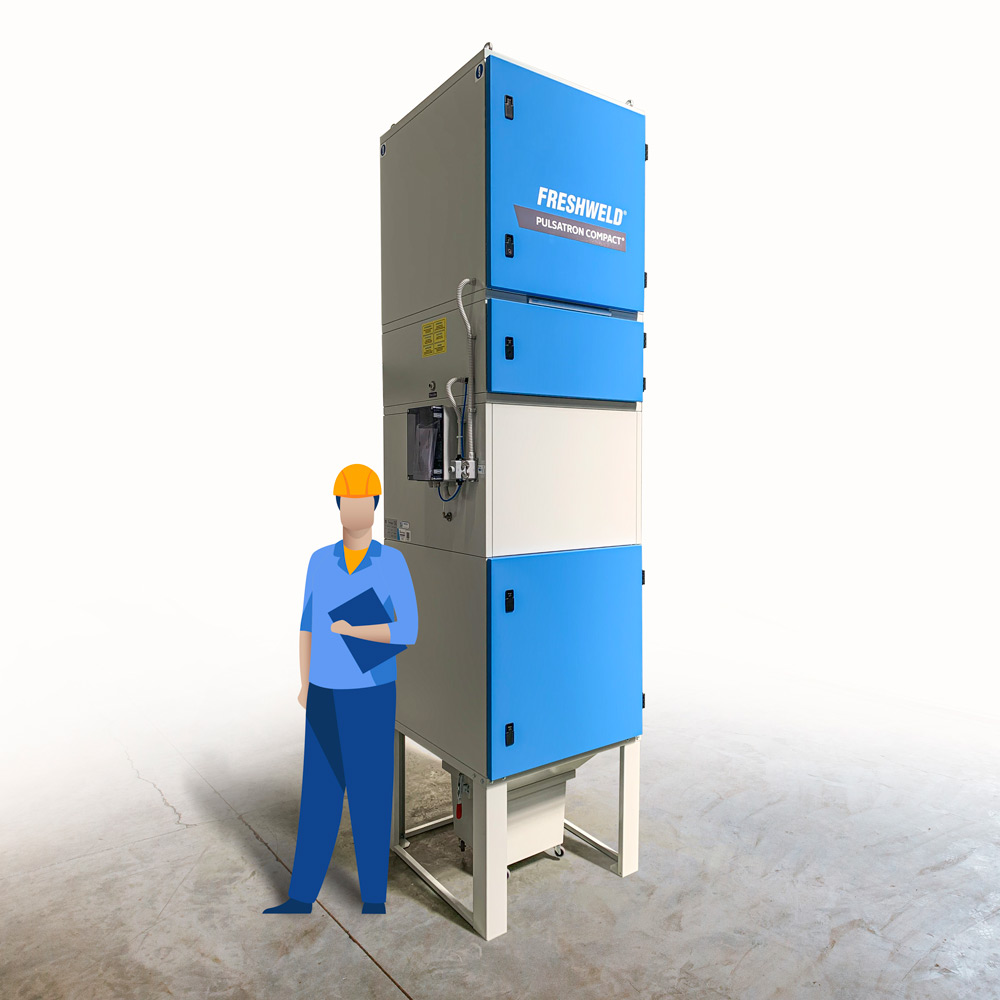

Pulsatron Compact Central Filtration System

Central Filtration System
Pulsatron Compact Dust Collector
Pulsatron Compact Dust Collector
Pulsatron Compact Con Ventilatore Integratocon Dp Led
1.Filtro A Cartucce Con Ventilatore Integrato 2

Central Filtration System

Central Filtration System

Dry Smoke and Dust

Jet-Pulse Filter

Jet-Pulse

Automatic Filter Cleaning

Kartuş Filtre

Cartridge

Cleanable Filter

Hepa Filter

HEPA Filter

High Efficiency Filtration

Usage Areas

  • Designed for Central Filtration Systems of smoke and dust generated during industrial applications
  • Suitable for welding, grinding, sandblasting, laser cutting, plasma cutting and polishing applications.

Generally Usage for:

  • Laser Cutting Systems
  • Sandblasting
  • Trimming
  • Welding Fumes
  • Grinding
  • Dry Machining in Tool Machines
  • Chemical Applications
  • Epoxy Painting
  • Pharmaceutical Applications
  • Plastic Material Processing
  • Coal Processing
  • Silo Ventilation
  • Metal Polishing
  • Cement Production, Processing
  • In Dusty Material Transportation
  • Plasma Cutting Applications
  • Polishing Operations

Specifications

  • Commits emission value as ≤ 5 mg/Nm³
  • Low noise level of 68 – 75 dBA
  • With integrated Jet-Pulse automatic Central Filtration System, it cleans own filters with compressed air.
  • Adds aesthetics to your business with its modular structure
  • It can be produced with a minimum capacity of 1000 m³/h and a maximum of 48000 m³/h

Options

  • Silencers
  • 3-color LED filter pollution indicator
  • Integrated HEPA filter for absolute filtration
  • Automatic dust discharge system
  • Mechanical shaking system to clean the cartridges
  • Start & Stop or frequency adjustable electrical panel
  • Horizontal spark arresting cyclone for special applications

Pulsatron Compact Certification



Download As Pdf

Product LEAFLET

HF Pulsatron Compact PDF click to download file

GET OFFER NOW FOR THIS PRODUCT
Categories: , , Tags: , , ,
PULSATRON TV SERİSİHAVA DEBİSİSTATİK BASINÇMOTOR GÜCÜFİLTRASYON YÜZEY ALANIFİLTRASYON HIZIBAĞLANTILAR (mm)EBATLAR (mm)
FW SİP. KODU(m³/h)(Pa)(kW)(m²)(m²/m³/dk)GİRİŞÇIKIŞEBY
511PCTV0031500 - 25002700 - 21003401,04Ø250Ø3009308502815
511PCTV0042000 - 40003200 - 21004401,66Ø250Ø3009308502815
511PCTV0055000 - 58001800 - 15004801,21Ø320Ø3009308502815
511PCTV0064500 - 55003500 - 30007,5801,142 x Ø250405 x 36293017002425
511PCTV0076000 - 70002000 - 16505,5801,452 x Ø250405 x 36293017002425
511PCTV0087000 - 80002800 - 26507,5801,662 x Ø250405 x 36293017002425
511PCTV0098000 - 90002650 - 21507,51201,253 x Ø250405 x 36293025502425
511PCTV0109000 - 110002450 - 22002 x 5,51601,144 x Ø2502 x (405 x 362)93034002425
511PCTV01111000 - 140003050 - 28002 x 7,51601,454 x Ø2502 x (405 x 362)93034002425
PULSATRON TVXL SERİSİHAVA DEBİSİSTATİK BASINÇMOTOR GÜCÜFİLTRASYON YÜZEY ALANIFİLTRASYON HIZIBAĞLANTILAR (mm)EBATLAR (mm)
FW SİP. KODU(m³/h)(Pa)(kW)(m²)(m²/m³/dk)GİRİŞÇIKIŞEBY
513TVXL0031500 - 25002700 - 21003800,52Ø250Ø3009308503415
513TVXL0042000 - 40003200 - 21004800,83Ø250Ø3009308503415
513TVXL0054000 - 50002100 - 18004801,04Ø300Ø3009308503415
513TVXL0065000 - 58001800 - 150041601,61Ø320Ø3009308503415
513TVXL0076000 - 70002000 - 16505,51601,942 x Ø250405 x 36293017003025
513TVXL0087000 - 80002800 - 26507,51600,832 x Ø250405 x 36293017003025
513TVXL0098000 - 90002650 - 21507,52400,623 x Ø250405 x 36293025503025
513TVXL0109000 - 110002450 - 22002 x 5,53200,574 x Ø2502 x (405 x 362)93034003025
513TVXL01111000 - 140003050 - 28002 x 7,53200,734 x Ø2502 x (405 x 362)93034003025
PULSATRON TSXL SERİSİHAVA DEBİSİFİLTRASYON YÜZEY ALANIKOMBİNASYONBAĞLANTILAR (mm)EBATLAR (mm)
FW SİP. KODU(m³/h)(m²)* TSXL Serisinde fan bulunmamaktadırGİRİŞÇIKIŞEBY
515TSXL0014000 - 800080Projenize uygun özellikte fan ile kombine edilirØ250Ø3009308503415
515TSXL0028000 - 16000160Projenize uygun özellikte fan ile kombine edilirØ250Ø3009308503415
515TSXL00312000 - 24000240Projenize uygun özellikte fan ile kombine edilirØ300Ø3009308503415
515TSXL00416000 - 32000320Projenize uygun özellikte fan ile kombine edilirØ320Ø3009308503415
515TSXL00520000 - 40000400Projenize uygun özellikte fan ile kombine edilir2 x Ø250405 x 36293017003025
515TSXL00624000 - 48000480Projenize uygun özellikte fan ile kombine edilir2 x Ø250405 x 36293017003025
Pulsatron Compact Central Filtration System – 2024 – FRESHWELD
Hfiltration Pulsatron Compact Merkezi Filtre

Central Filtration System is designed for filtering fume and dust generated during industrial applications. It is suitable for applications such as Welding, Grinding, Sandblasting, Laser Cutting, Plasma Cutting and Polishing.
