Usage Areas
- Flexible Dust and Fume Extraction Arms, Strength Fume Suction Arms
- Designed to connect to fans or central extraction systems
- Designed for extracting high level of dust and fume
- Suitable for extracting fume, gas, vapour and light dust
Specifications
- Easy to use in workshops with limited spaces
- Reachable to desired area thanks to its flexible arm structure
- User friendly due to easy movement by one hand
- Protects arm position thanks to self supported design
- Flexible Dust and Fume Extraction Arms can be connected to extraction ducts and fans with multiple connection options
- -40C ~ +90C durable anti-static Flame Retardant PU hose
Product LEAFLET
TSA Series PDF click to download file
WALL TYPE EXTRACTION ARM | VERSION | ARM LENGTH | JOINT TYPE | DIAMETER | PLACE OF USE | MAX. OPERATING TEMPERATURE | HOOD MATERIAL | HOSE MATERIAL | AIRFLOW | PRESSURE DROP | WEIGHT |
---|---|---|---|---|---|---|---|---|---|---|---|
FW CODE | (m) | (Ø) -mm | °C | (m³/h) | (Pa) | (kg) | |||||

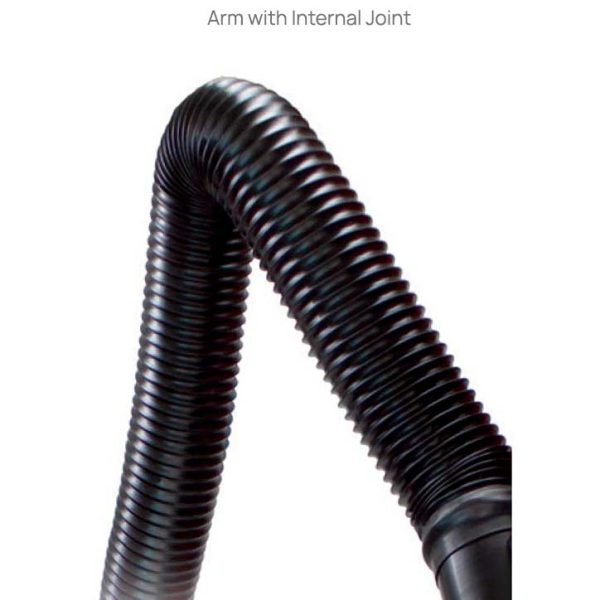

911TSA0502 | TSA/502 | 2 | INTERNAL | 150 | WALL TYPE | 90 | ALUMINIUM | ANTISTATIC PU | 700 – 1500 | 900 – 1800 | 10 |
911TSA0503 | TSA/503 | 3 | INTERNAL | 150 | WALL TYPE | 90 | ALUMINIUM | ANTISTATIC PU | 700 – 1500 | 950 – 1850 | 17 |
911TSA0504 | TSA/504 | 4 | INTERNAL | 150 | WALL TYPE | 90 | ALUMINIUM | ANTISTATIC PU | 700 – 1500 | 1000 – 1900 | 21 |

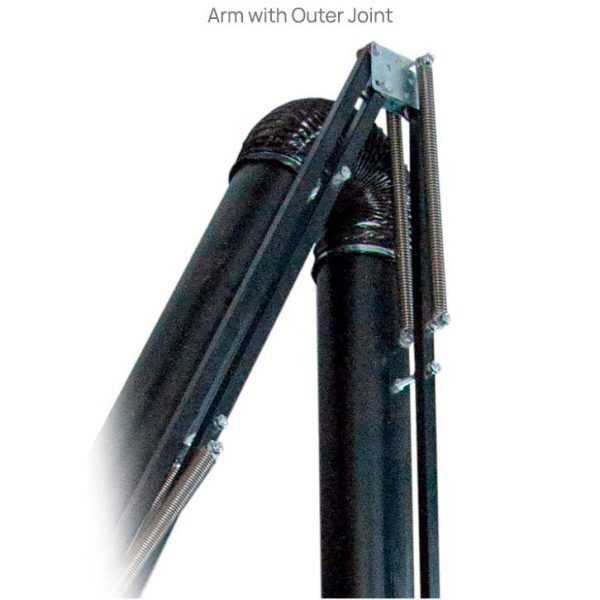

911TSA0522 | TSA/522 | 2 | OUTER | 150 | WALL TYPE | 90 | ALUMINIUM | PIPE-HOSE | 700 – 1500 | 800 – 1700 | 12 |
911TSA0523 | TSA/523 | 3 | OUTER | 150 | WALL TYPE | 90 | ALUMINIUM | PIPE-HOSE | 700 – 1800 | 850 – 1850 | 19 |
911TSA0524 | TSA/524 | 4 | OUTER | 150 | WALL TYPE | 90 | ALUMINIUM | PIPE-HOSE | 700 – 1800 | 900 – 1800 | 23 |
Wall Mounting Console
WALL MOUNTING CONSOLE | VERSION | DESCRIPTION | INTEGRATED | WEIGHT |
---|---|---|---|---|
FW CODE | *Acrobat Arm used with wall mounting console | (kg) | ||
911TSA0501 | TSA/501 | WALL MOUNTING CONSOLE | TSA/502 - TSA/503 - TSA/504 - TSA/522 - TSA/523 - TSA/524 | 7 |
Extension Console
EXTRACTION ARM EXTENSION CONSOLE | VERSION | ARM LENGTH | NUMBER OF PARTS | DIAMETER | INTEGRATED | WEIGHT |
---|---|---|---|---|---|---|
FW CODE | (m) | (Ø) -mm | * for extend 5, 6 and 7 meter | (kg) | ||
911TSB0503 | TSB/503 | 3 | 2 | 150 | TSA/502 - TSA/503 - TSA/504 - TSA/522 - TSA/523 - TSA/524 | 46 |
Flexible Dust and Fume Extraction Arms – 2024
Fume extraction arms are designed to connect fans or central exhaust systems as a suction unit to extract fumes, gas, steam, light dust and some chemicals.
Product SKU: -
Product Brand: FRESHWELD
Product Currency: EUR
Product Price: 0.00
Product In-Stock: PreOrder
