Mobile Unit
Lockable Wheels
Disposable Cassette Filter
E12 EPA (EN 1882 Ẽ @ MPPS ≤ 99.5%)
Activated Carbon Filter
3,3 kg
Applications
- Suitable for filtering odors and fumes released during processes like laser marking, laser pantograph, and dot peen marking.
- Ensures easy installation and powerful suction for enclosed cabin laser marking and cutting units, thanks to its flexible Ø102mm suction hose.
- Provides strong suction and easy installation for multi-axis laser units with its free-moving suction hose.
- Compatible with the processing of non-alloyed, low-alloyed, and high-alloyed steels.
- Ideal for filtering fumes and odors during the marking of plastic materials.
- Compact design with optimal suction and filtration power, tailored for laser marking applications.
- Absorbs and filters odor molecules with its Activated Carbon Filter during laser operations.
Features
- Communicates with your PLC panel via the communication socket on the control panel, allowing remote control and energy-saving by preventing continuous operation.
- Operates integrated with the laser unit system, offering remote control for odor and fume filtration.
- Quick, practical, and easy filter replacement thanks to the hinged top cover.
- Maintenance is minimized with the filter dirt alert, ensuring downtime is reduced to filter changes only.
- Recirculates breathable air back into the environment without requiring additional exhaust systems.
- Minimizes fire risk caused by sparks with its washable aluminum mesh pre-filter (see L1 Series Filter Maintenance Guide).
- Can be fitted with suction hoses of desired length (up to max 10 meters).
- Easily mountable with a Ø102 mm flange size.
- Equipped with swivel wheels for easy transportation.
- Lockable front wheels for stability.
- Provides quiet and flawless movement with polyamide-rimmed tires.
- Includes a 3-meter power cable.
Product Leaflet
L1/102 Content is being prepared!
| L1/102 SERIES | INLET | max. FAN CAPACITY @740 Pa | MOTOR POWER | VOLUMETRIC AIRFLOW | FILTRATION STAGE | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (Ø) -mm | (m³/h) | (kW) | (m³/h) | 1° | 2° | 3° | W | L | H | (kg) |
| 104WL11020 | 100 | 1200 | 0,55 | 500 | G1 Mesh | E12 – 14m² | Activated Carbon – 3,3 kg | 480 | 480 | 830 | 55 |
| 104WL11022 | 100 x 2 | 1200 | 0,55 | 300 – 400 | G1 Mesh | E12 – 14m² | Activated Carbon – 3,3 kg | 480 | 480 | 830 | 55 |
| 104WL10751 | 75 | 1200 | 0,55 | 250 | G1 Mesh | E12 – 14m² | Activated Carbon – 3,3 kg | 480 | 480 | 830 | 55 |
| 104WL10752 | 75 x 2 | 1200 | 0,55 | 200 -300 | G1 Mesh | E12 – 14m² | Activated Carbon – 3,3 kg | 480 | 480 | 830 | 55 |
| 105WL10751 | 100 | 1200 | 0,55 | 500 | G1 Mesh | H13 – 14m² | Activated Carbon – 3,3 kg | 480 | 480 | 830 | 55 |
| 105WL10752 | 100 x 2 | 1200 | 0,55 | 300 – 400 | G1 Mesh | H13 – 14m² | Activated Carbon – 3,3 kg | 480 | 480 | 830 | 55 |
| 105WL11020 | 75 | 1200 | 0,55 | 250 | G1 Mesh | H13 – 14m² | Activated Carbon – 3,3 kg | 480 | 480 | 830 | 55 |
| 105WL11022 | 75 x 2 | 1200 | 0,55 | 200 -300 | G1 Mesh | H13 – 14m² | Activated Carbon – 3,3 kg | 480 | 480 | 830 | 55 |

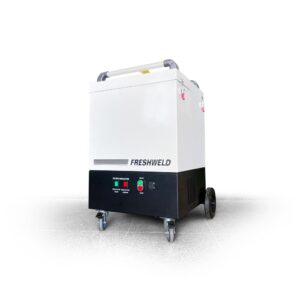

Laser Marking / Cutting / Engraving Odor And Fume Extractor
High-performance fume extraction units for Laser marking, cutting and laser engraving processes. Harmful fumes are efficiently filtered by this specialized units
