New Generation Hood
High Performance
Integrated System
Built-in Filtering System
Integrated with Central System
Welding Hood Without Fan And Filter
Usage Areas

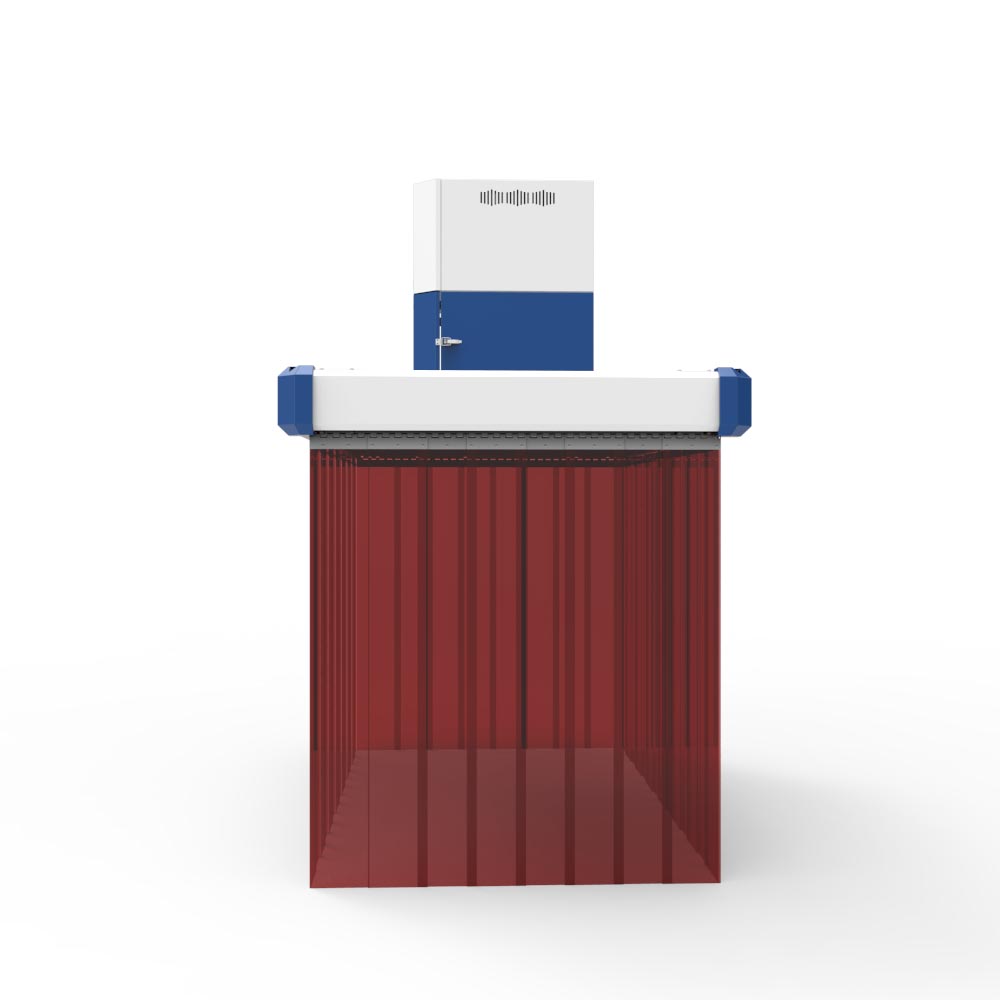

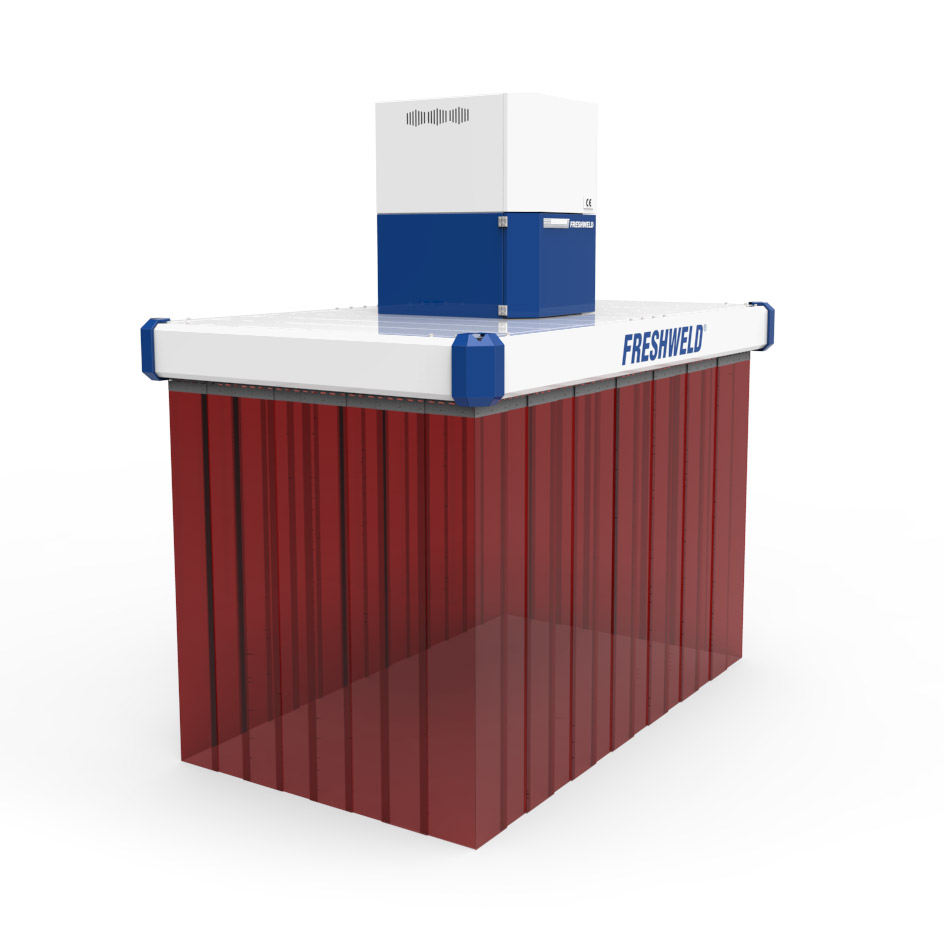

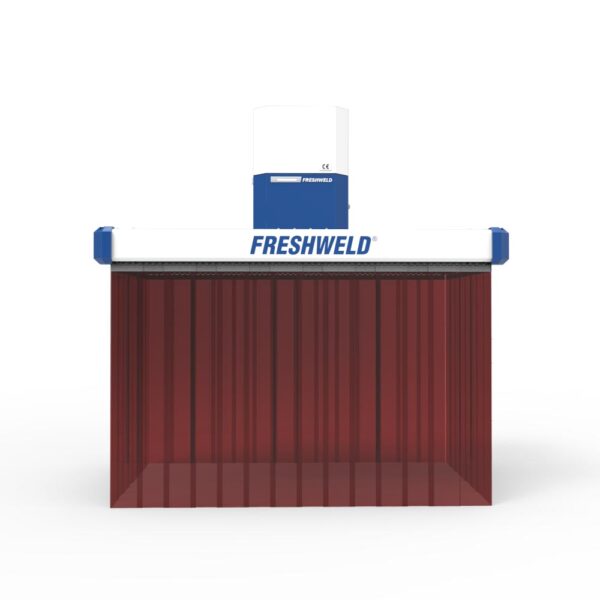

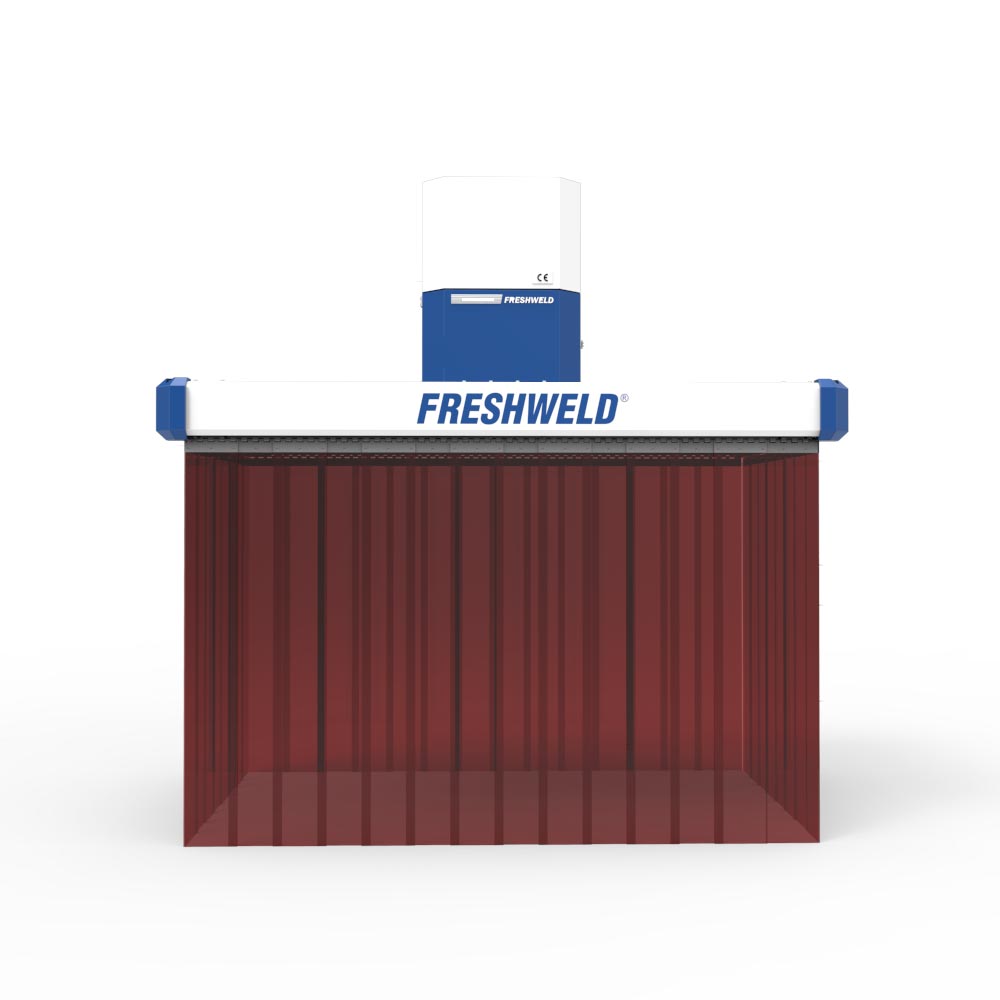

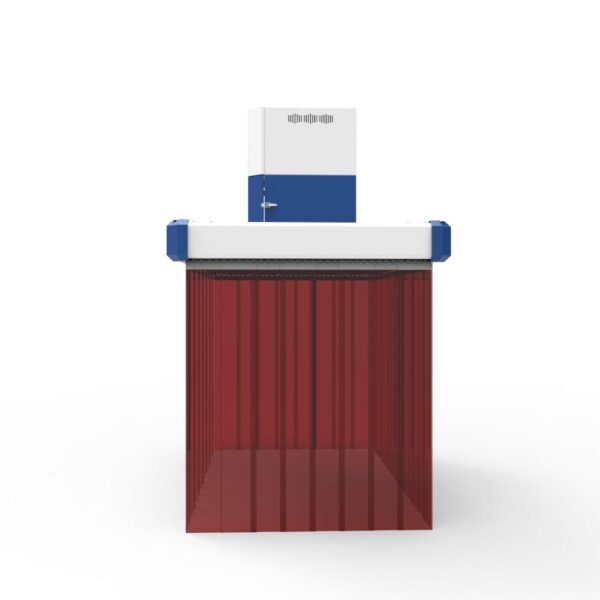

- i8 Series High Performance, Curtain, Robotic Welding Hood

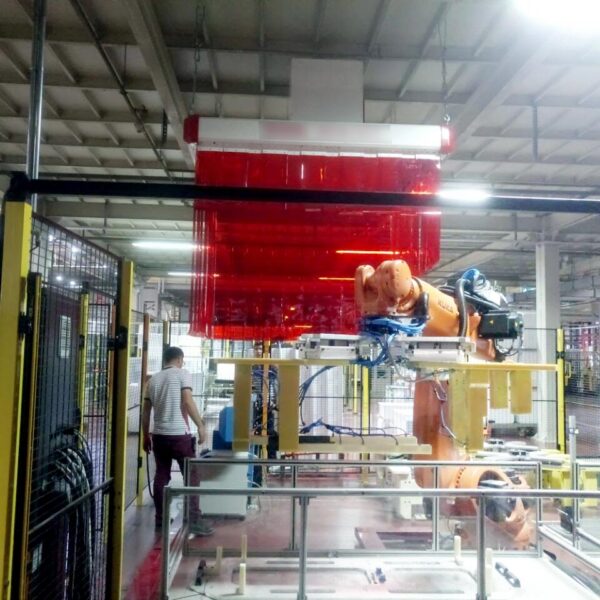

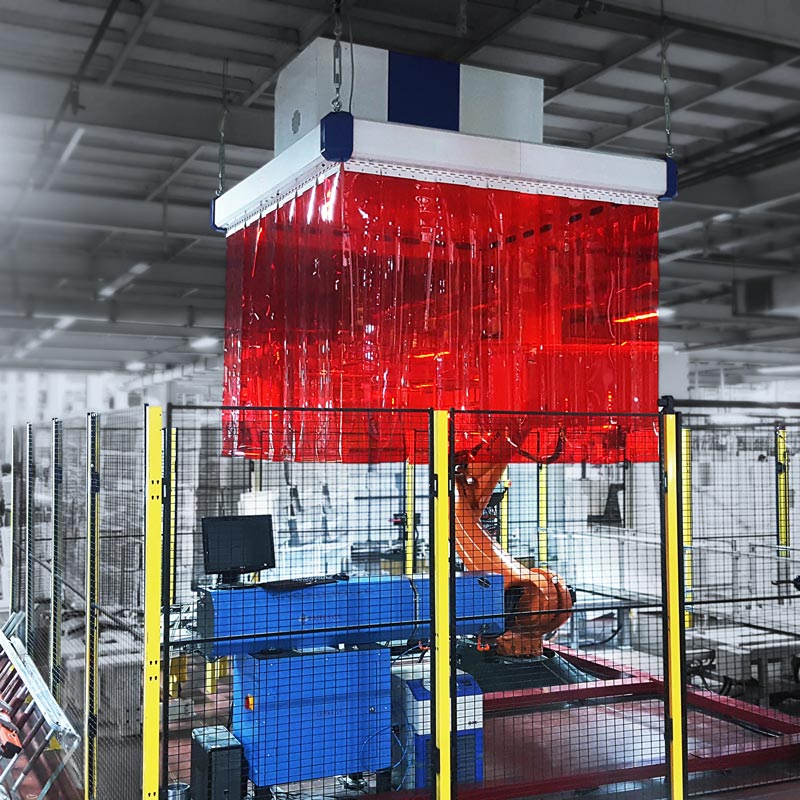

- Fumes and Dust Extraction system for Welding Robots with Curtain
- With its modular and aesthetic design, it can be used as a hood in different applications.
- Designed to extract fumes that released during robotic welding applications.
Specifications
- Supplies comprehensive solutions for your facility thanks to multiple assembly options
- Thanks to its modular design, it could be produced in special sizes for your application
- Welding curtains protect your personnel and equipment from sparks
- It filters 99% of extracted fumes with its integrated filter unit
- Easy access thanks to external control panel
Product LEAFLET
i8 Series PDF click to download file
- i8/10 Serisi
- i8/15 Serisi
- i8/20 Serisi
- Modüler Davlumbaz Ölçü Tablosu
- Güvenlik Perdesi Montaj Grafiği
| I8 SERİSİ | NOMINAL EBATLAR | ÖNERİLEN DEBİ | BASINÇ KAYBI | PERDE EBATLARI(mm) | BAĞLANTI | EFEKTİF BAĞLANTILAR (mm) | AĞIRLIK | |||
|---|---|---|---|---|---|---|---|---|---|---|
| FW KODU | (m) | (m³/h) | (Pa) | E | B | (Ø) - mm | E | B | Y | (kg) |
| 4010I81010 | 1 x 1 | 800 | 300 | 300 | 1000 | 1 x 250 | 1200 | 1200 | 200 | 51 |
| 4010I81015 | 1 x 1,5 | 1200 | 300 | 300 | 1000 | 1 x 250 | 1200 | 1700 | 200 | 60 |
| 4010I81020 | 1 x 2 | 1600 | 300 | 300 | 1000 | 1 x 250 | 1200 | 2200 | 200 | 71 |
| 4010I81025 | 1 x 2,5 | 2000 | 300 | 300 | 1000 | 1 x 250 | 1200 | 2700 | 200 | 81 |
| 4010I81030 | 1 x 3 | 2400 | 300 | 300 | 1000 | 2 x 250 | 1200 | 3200 | 200 | 91 |
| 4010I81035 | 1 x 3,5 | 2800 | 300 | 300 | 1000 | 2 x 250 | 1200 | 3700 | 200 | 101 |
| 4010I81040 | 1 x 4 | 3200 | 300 | 300 | 1000 | 2 x 250 | 1200 | 4200 | 200 | 112 |
| 4010I81045 | 1 x 4,5 | 3600 | 300 | 300 | 1000 | 2 x 250 | 1200 | 4700 | 200 | 122 |
| 4010I81050 | 1 x 5 | 4000 | 300 | 300 | 1000 | 2 x 250 | 1200 | 5200 | 200 | 132 |
| 4010I81055 | 1 x 5,5 | 4400 | 300 | 300 | 1000 | 2 x 250 | 1200 | 5700 | 200 | 141 |
| I8 SERİSİ | NOMINAL EBATLAR | ÖNERİLEN DEBİ | BASINÇ KAYBI | PERDE EBATLARI(mm) | BAĞLANTI | EFEKTİF BAĞLANTILAR (mm) | AĞIRLIK | |||
|---|---|---|---|---|---|---|---|---|---|---|
| FW KODU | (m) | (m³/h) | (Pa) | E | B | (Ø) - mm | E | B | Y | (kg) |
| 4010I81515 | 1,5 x 1,5 | 1800 | 300 | 300 | 1000 | 1 x 250 | 1700 | 1700 | 200 | 72 |
| 4010I81520 | 1,5 x 2 | 2400 | 300 | 300 | 1000 | 1 x 315 | 1700 | 2200 | 200 | 85 |
| 4010I81525 | 1,5 x 2,5 | 3000 | 300 | 300 | 1000 | 1 x 315 | 1700 | 2700 | 200 | 97 |
| 4010I81530 | 1,5 x 3 | 3600 | 300 | 300 | 1000 | 2 x 250 | 1700 | 3200 | 200 | 101 |
| 4010I81535 | 1,5 x 3,5 | 4200 | 300 | 300 | 1000 | 2 x 250 | 1700 | 3700 | 200 | 123 |
| 4010I81540 | 1,5 x 4 | 4800 | 300 | 300 | 1000 | 2 x 315 | 1700 | 4200 | 200 | 136 |
| 4010I81545 | 1,5 x 4,5 | 5400 | 300 | 300 | 1000 | 2 x 315 | 1700 | 4700 | 200 | 149 |
| 4010I81550 | 1,5 x 5 | 6000 | 300 | 300 | 1000 | 2 x 315 | 1700 | 5200 | 200 | 161 |
| 4010I81555 | 1,5 x 5,5 | 6600 | 300 | 300 | 1000 | 2 x 315 | 1700 | 5700 | 200 | 173 |
| I8 SERİSİ | NOMINAL EBATLAR | ÖNERİLEN DEBİ | BASINÇ KAYBI | PERDE EBATLARI(mm) | BAĞLANTI | EFEKTİF BAĞLANTILAR (mm) | AĞIRLIK | |||
|---|---|---|---|---|---|---|---|---|---|---|
| FW KODU | (m) | (m³/h) | (Pa) | E | B | (Ø) - mm | E | B | Y | (kg) |
| 4010I82020 | 2 x 2 | 3200 | 300 | 300 | 1000 | 1 x 315 | 2200 | 2200 | 200 | 98 |
| 4010I82025 | 2 x 2,5 | 4000 | 300 | 300 | 1000 | 1 x 400 | 2200 | 2700 | 200 | 112 |
| 4010I82030 | 2 x 3 | 4800 | 300 | 300 | 1000 | 2 x 315 | 2200 | 3200 | 200 | 129 |
| 4010I82035 | 2 x 3,5 | 5600 | 300 | 300 | 1000 | 2 x 315 | 2200 | 3700 | 200 | 144 |
| 4010I82040 | 2 x 4 | 6400 | 300 | 300 | 1000 | 2 x 315 | 2200 | 4200 | 200 | 159 |
| 4010I82045 | 2 x 4,5 | 7200 | 300 | 300 | 1000 | 2 x 315 | 2200 | 4700 | 200 | 173 |
| 4010I82050 | 2 x 5 | 8000 | 300 | 300 | 1000 | 2 x 315 | 2200 | 5200 | 200 | 188 |
| 4010I82055 | 2 x 5,5 | 8800 | 300 | 300 | 1000 | 2 x 315 | 2200 | 5700 | 200 | 203 |
i8 Robotic Welding Hood with Curtain – 2024 – FRESHWELD
i8 Series High Performance, Curtain, Robotic Welding Hood. Fumes and Dust Extraction system for Welding Robots with Curtain. Options with Integrate to Central System
