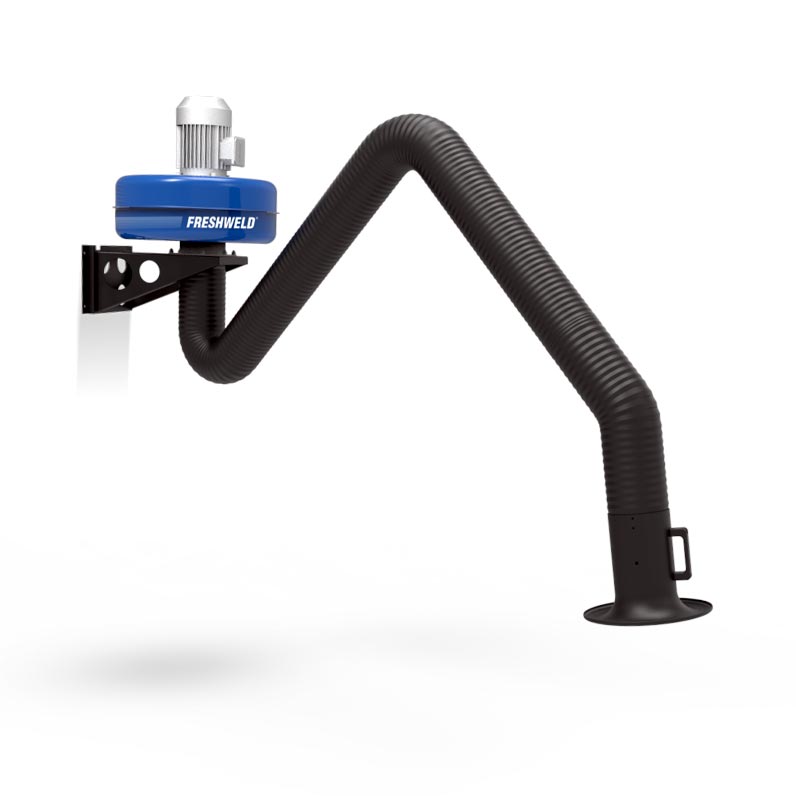

Wall-Mounted Centrifugal Fume Exhaust Fan with Articulated Extraction Arm – 1.1 kW Motor Power – TSF/011

Fixed centrifugal fume exhaust fan with wall-mounted configuration. The system can be paired with an articulated extraction arm to minimize space utilization in industrial workshops. Designed for facilities without filtration requirements and where space constraints are critical. Fully compliant with European machinery safety standards. With arm lengths up to 4 meters and motor options ranging from 1.1 kW to 1.5 kW, the system can be configured to meet specific operational demands. Our 1.1 kW centrifugal fan offers 3000 m³/h airflow performance, while the arm-less model delivers 2000 m³/h volumetric extraction capacity.

Weight 54 kg
Dimensions 150 × 150 × 150 mm
Single Acrobat Arm Length

Arm-less1 x 2m1 x 3m1 x 4m
Local Manufacturing,<br>Global Standards

Local Manufacturing,
Global Standards

99% Filtration<br>Efficiency

99% Filtration
Efficiency

Energy-Efficient and<br>Sustainable Design

Energy-Efficient and
Sustainable Design

Full Compliance with<br>OHS / HSE Regulations

Full Compliance with
OHS / HSE Regulations

SKU : 921MSF1100 Categories : , Brand:
Product Leaflet
User Manual
Need help?

Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.

Technical Specifications Table

TSF VERSION MOTOR
POWER		 EXTRACTION
ARM LENGTH		 max.
FAN CAPACITY
@1200 Pa		 INLET – OUTLET VOLUMETRIC
AIRFLOW		 WEIGHT
FW CODE (kW) (m) (m³/h) (Ø) -mm (m³/h) (kg)
921MSF1100 TSF/011 1,1 w/o Arm 3000 150 2000 24
921MSF1500 TSF/015 1,1 2m 3000 150 1500 36
921MSF1103 TSF/011 1,1 3m 3000 150 1500 41
921MSF1104 TSF/011 1,1 4m 3000 150 1500 45

Application Areas

  • Wall-mounted single articulated arm fume exhaust fan
  • Engineered for capturing high concentrations of welding fumes and airborne particulates
  • Ideal for environments where filtration systems are not required
  • Suitable for extracting fumes, gases, vapors, and light dust

Features

  • Optimized for workshops with limited floor space, enabling streamlined installation
  • Flexible arm design ensures effortless reach to targeted emission points
  • Fully compliant with European machinery safety regulations
  • Robust aluminum impeller delivers reliable, long-term airflow performance
  • Motor protection switch prevents unexpected failures and extends service life
