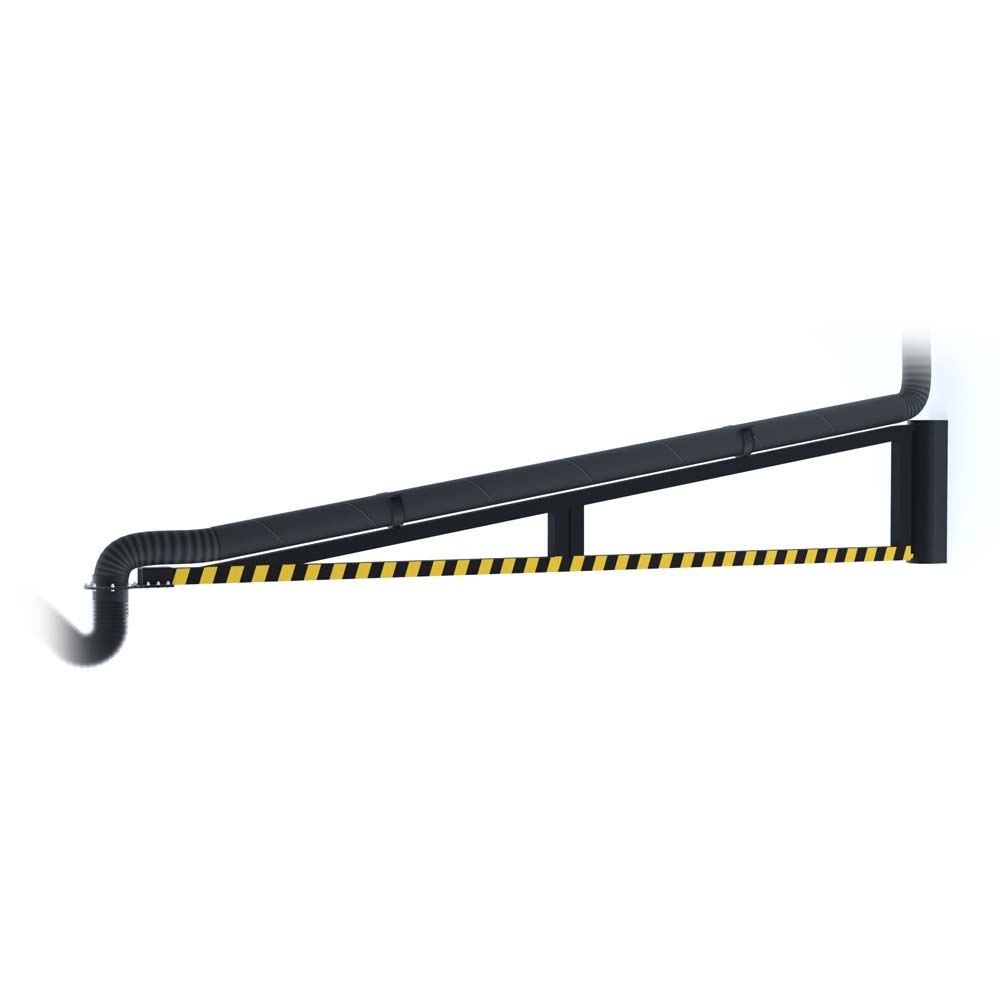

  1. Extension Bracket for Wall-Mounted Fume Extraction Articulated Arms - 150 mm Diameter - TSB Series

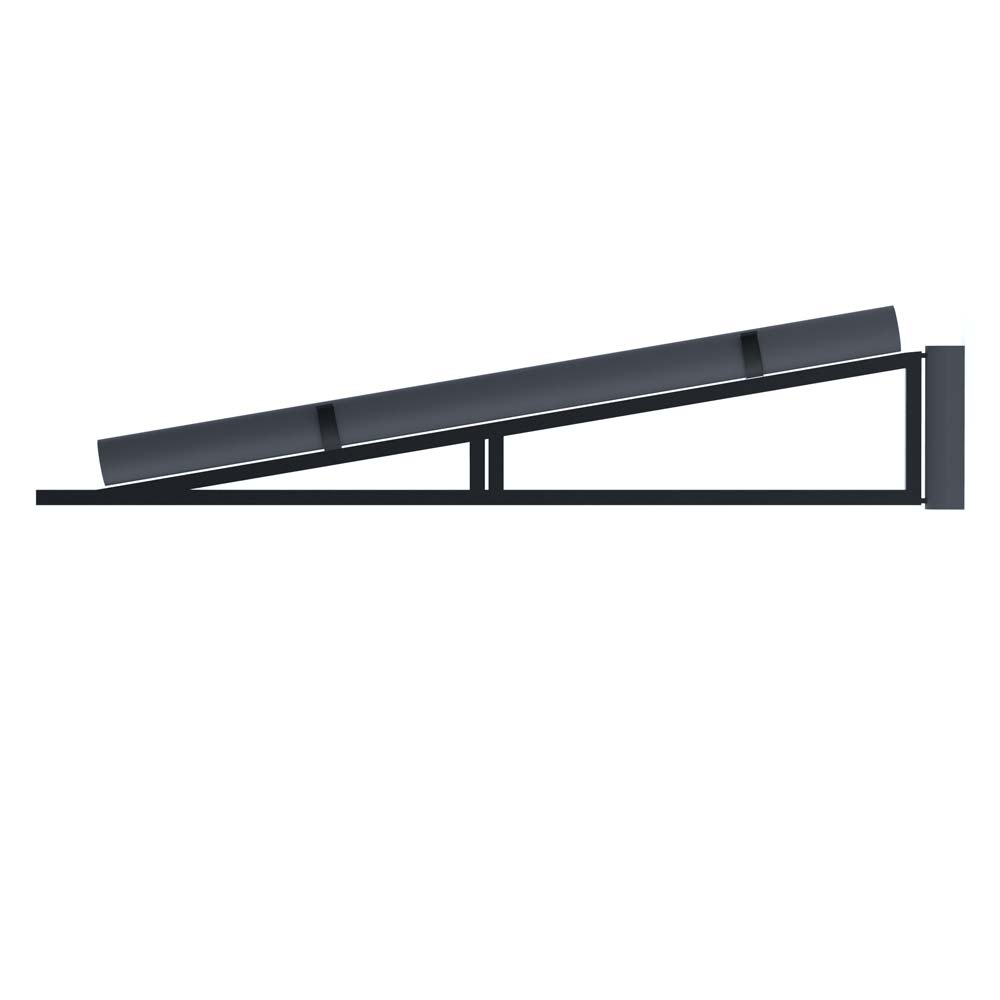

  2. Extension Bracket for Wall-Mounted Fume Extraction Articulated Arms - 150 mm Diameter - TSB Series - Image 2

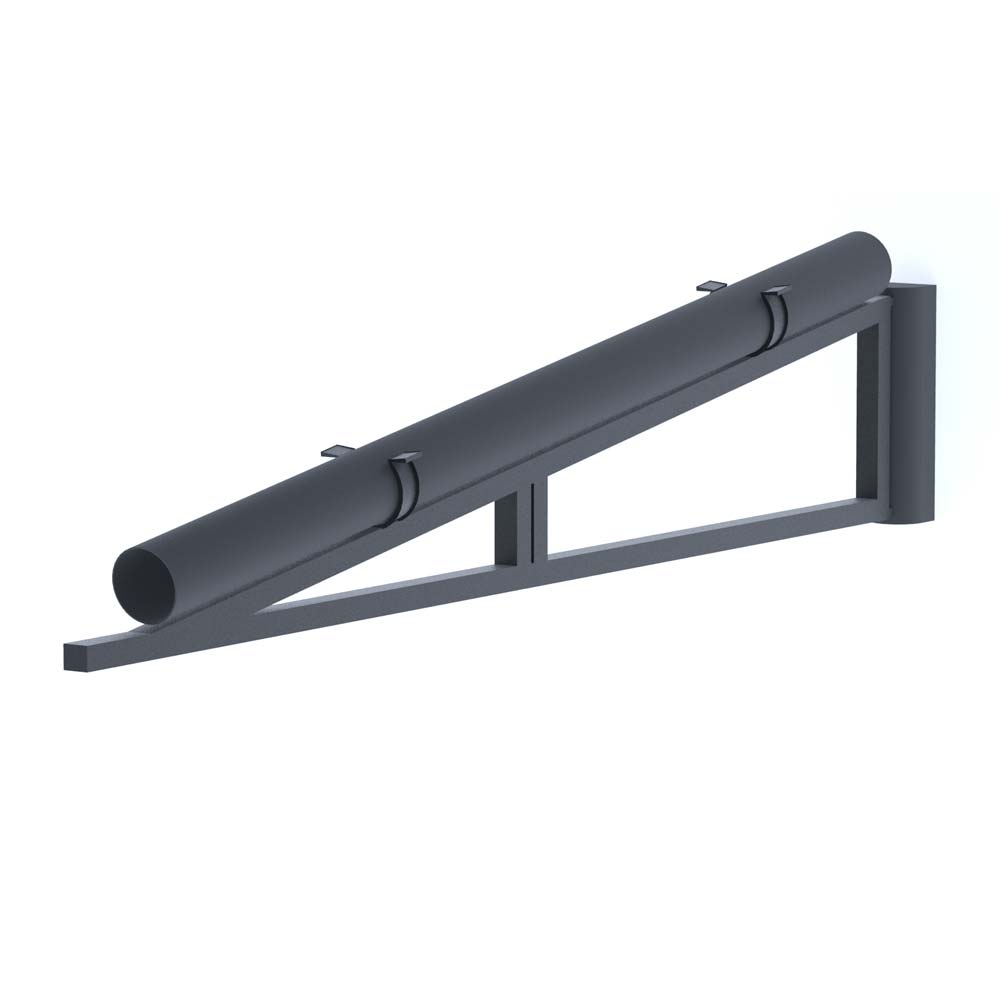

  3. Extension Bracket for Wall-Mounted Fume Extraction Articulated Arms - 150 mm Diameter - TSB Series - Image 3
  4. Extension Bracket for Wall-Mounted Fume Extraction Articulated Arms - 150 mm Diameter - TSB Series - Image 4

Extension Bracket for Wall-Mounted Fume Extraction Articulated Arms – 150 mm Diameter – TSB Series

Wall-mounted extraction, exhaust, or filtration systems enable articulated arms to reach a total length of 5, 6, or 7 meters. Its modular design, available in 2, 3, and 4-meter lengths, ensures easy installation and efficient logistics. It is used to extend the extraction arms of SM and SMK stationary fume extraction units, as well as TSF series units.

Weight 43 kg
Single Acrobat Arm Length

1 x 2m1 x 3m1 x 4m
Local Manufacturing,<br>Global Standards

Local Manufacturing,
Global Standards

99% Filtration<br>Efficiency

99% Filtration
Efficiency

Energy-Efficient and<br>Sustainable Design

Energy-Efficient and
Sustainable Design

Full Compliance with<br>OHS / HSE Regulations

Full Compliance with
OHS / HSE Regulations

SKU : 911TSB0502 Category : Brand:
Need help?

Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.

Technical Specifications Table

EXTRACTION ARM
EXTENSION CONSOLE		 VERSION ARM
LENGTH		 NUMBER
OF PARTS		 DIAMETER INTEGRATED WITH WEIGHT
FW CODE (m) (Ø) -mm *USES FOR TO EXTEND ACROBAT ARMS UP TO 5,6 AND 7 METER (kg)
911TSB0502 TSB/502 2 2 150 TSA/502 – TSA/503 – TSA/504 – TSA/522 – TSA/523 – TSA/524 43
911TSB0503 TSB/503 3 2 150 TSA/502 – TSA/503 – TSA/504 – TSA/522 – TSA/523 – TSA/524 46
911TSB0504 TSB/504 4 2 150 TSA/502 – TSA/503 – TSA/504 – TSA/522 – TSA/523 – TSA/524 55

Content is being updated. For inquiries, please contact our Sales Consultant.

Wall-mounted extraction, exhaust, or filtration systems enable articulated arms to reach a total length of 5, 6, or 7 meters. Its modular design, available in 2, 3, and 4-meter lengths, ensures easy installation and efficient logistics. It is used to extend the extraction arms of SM and SMK stationary fume extraction units, as well as TSF series units.
