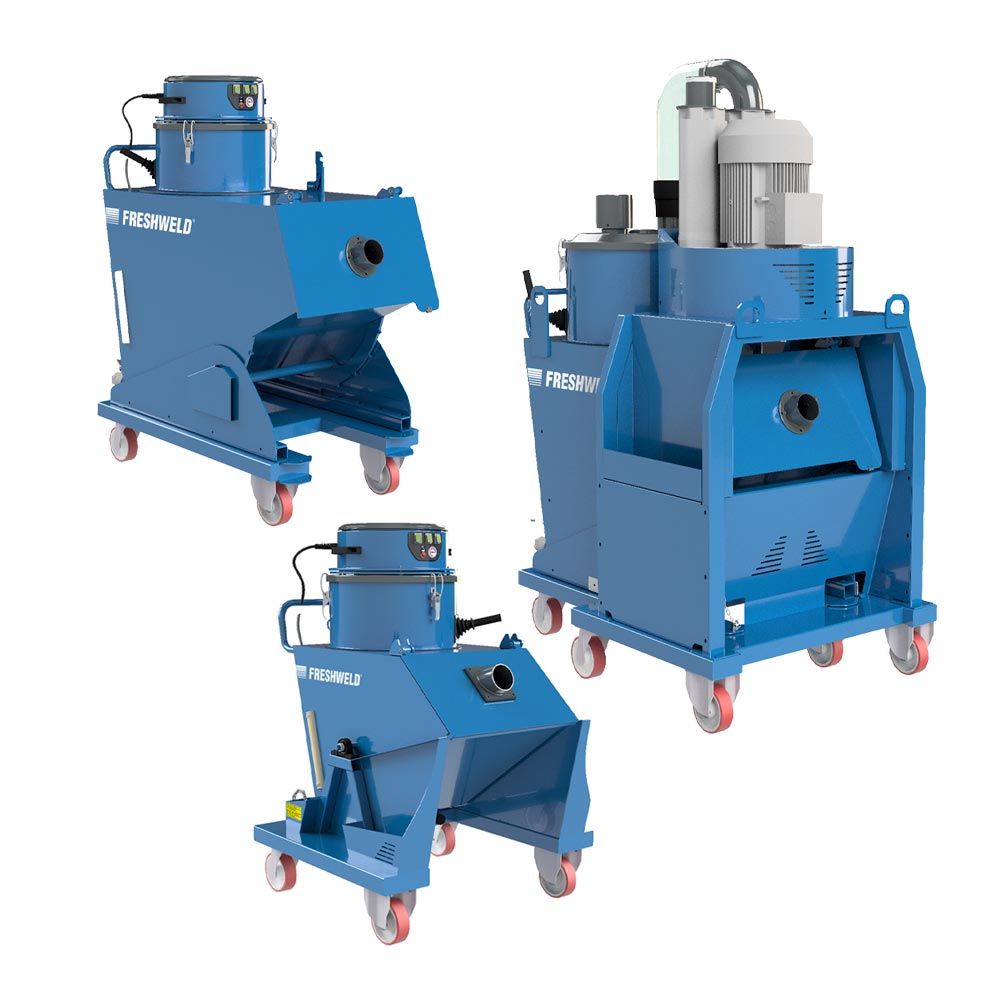

Industrial Chips Collection Unit – Metal Chips & Wood Chips Cleaning System – CHIPVAC Industrial Vacuum Series
CHIPVAC Industrial Metal Chips Collection systems are professional industrial vacuum machines designed for the effective removal of dry chips generated during machining processes. They efficiently collect chips made of metal, wood, glass, and other materials. With powerful suction performance and large-capacity tanks, they enable uninterrupted operation, improve workshop organization, and enhance workplace safety.
| Weight | 155 kg |
|---|---|
| Dimensions | 640 × 1090 × 1350 mm |
| Select Model | CHIPVAC 200 – 540m³/h – 3.3 kWCHIPVAC 400M – 540m³/h – 3.3 kWCHIPVAC 400 – 700m³/h – 7.5 kWCHIPVAC 400HD – 1100m³/h – 12.5 kW |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| CHIPVAC | MODEL | max. AIR FLOW | max. WATER LIFT | VOLTAGE | MOTOR POWER | NOISE LEVEL | CHIPS CAPACITY | OILS CAPACITY | DISCHARGE SYSTEM | SUCTION INLET | FILTER INFORMATIONS | DIMENSIONS (mm) | WEIGHT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m³/h) | mm H2O | V – Hz | (kW) | dB(A) | Litre | Litre | (Ø) – mm | Surface Area | Type | Dimensions | Media – Class | W | L | H | (kg) | ||
| 965VAC0601 | CHIPVAC 200 | 540 | 2400 | 1~230/50 | 3,3 | 78 | 200 | _ | Patented Tilting 90° | 90 | 14000 cm² | Star | Ø420 mm | Polyester – L | 1090 | 940 | 1350 | 155 |
| 965VAC0603 | CHIPVAC 400M | 540 | 2400 | 1~230/50 | 3,3 | 78 | 400 | _ | Guided Tilting 50° | 80 | 14000 cm² | Star | Ø420 mm | Polyester – L | 1330 | 750 | 1650 | 280 |
| 965VAC0701 | CHIPVAC 400 | 700 | 4000 | 3~400/50 | 7,5 | 74 | 400 | _ | Guided Tilting 50° | 80 | 30000 cm² | Star | Ø560 mm | Polyester – L | 1470 | 1050 | 2070 | 490 |
| 965VAC0702 | CHIPVAC 400HD | 1100 | 4400 | 3~400/50 | 12,5 | 76 | 400 | _ | Guided Tilting 50° | 80 | 30000 cm² | Star | Ø560 mm | Polyester – L | 1470 | 1050 | 2070 | 555 |
Areas of Application
Metalworking Workshops
- Chip removal from lathes and milling machines
- Cleaning around CNC machines
- Post-operation cleaning after drilling and cutting processes
- Workshop floors and work area cleaning
Multi-Purpose Use
- Industrial Metal Chips (iron, steel, aluminum)
- Wood chips and dust
- Glass fragments and particles
- Large-grain industrial waste materials
Product Features
Technical Specifications
- High-Capacity Tanks: Waste storage capacity ranging from 200L to 400L
- Powerful Suction System: Optimized for heavy and dense chips
- Robust Construction: Durable design suitable for industrial applications
- Easy Discharge: Practical and efficient chip emptying system
Performance Advantages
- Fast and efficient chip collection
- Seamless vacuuming of large and heavy particles
- Continuous operation capability
- Low operating and maintenance costs
Key Highlights
- Models equipped with skip (tilting) discharge systems
- Wide range of compatible accessories
- Ergonomic and operator-friendly design
- Easy maintenance and cleaning
