On-Torch Fume Extraction and High-Vacuum Welding Fume Filtration Unit T1/2005
The FRESHWELD T1/2005 is a mobile high-vacuum on-torch fume extraction unit for MIG/MAG welding torches with integrated fume extraction. It features a 1.6 kW carbon-brush bypass blower, F9 + H14 HEPA filtration, automatic start/stop, and the ClapLap filter cleaning system.
| Weight | 33 kg |
|---|---|
| Dimensions | 624 × 303 × 610 mm |
Technical Notice
Our products are continuously enhanced to comply with technological developments, industry requirements, and current occupational health, safety, and environmental regulations. As a result, the images, technical information, and documents available on our website may vary from the latest product version. All order-specific technical details and the final scope of supply are clearly defined and provided during the quotation process.
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| Specification | Value |
|---|---|
| Blower type | Carbon-brush bypass |
| Blower service life (h) | 800 |
| Weight (kg) | 33.35 |
| Depth (mm) | 624 |
| Width (mm) | 303 |
| Height (mm) | 610 |
| Number of filtration stages | 2 |
| Stage 1 filter area (m²) | 4.5 |
| Stage 1 filter class and type | F9 cartridge |
| Stage 2 filter area (m²) | 3 |
| Stage 2 filter class and type | H14 cassette |
| Particle separation efficiency (%) | ≥99.999 |
| Maximum fan capacity (m³/h) | 272.5 |
| Extraction airflow (m³/h) | 190 |
| Maximum negative pressure (Pa) | 20,000 |
| Maximum vacuum (Pa) | 29,500 |
| Motor power (kW) | 1.6 |
| Rated current (A) | ≈7 |
| Sound pressure level (dB(A)) | 80 |
| Dust collection container capacity (L) | 4 |
| Suction connection diameter (mm) | 50 |
High-vacuum on-torch fume extraction unit Capture welding fumes directly at the source.

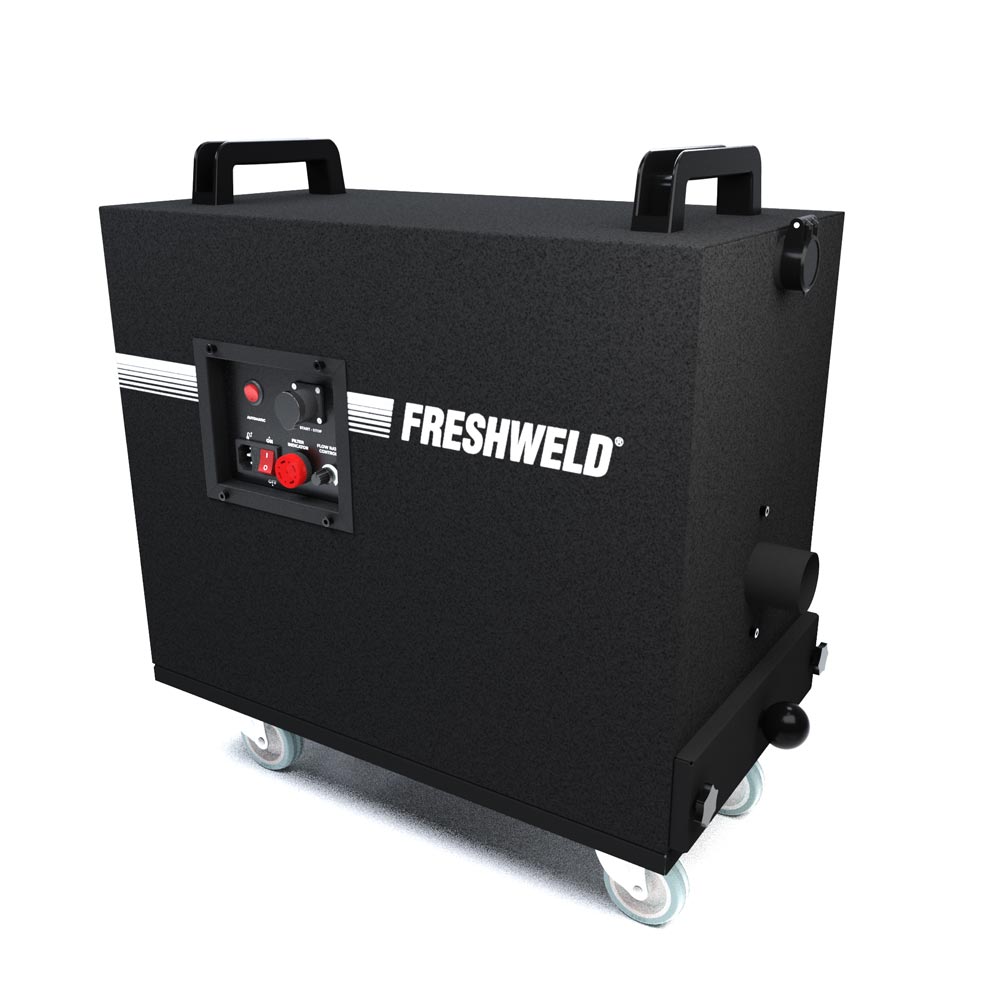

The FRESHWELD T1/2005 is a mobile high-vacuum extraction and filtration unit designed for use with MIG/MAG welding torches with integrated fume extraction. It extracts fumes through the torch during welding, helping reduce their spread into the working environment.
A 1.6 kW carbon-brush bypass blower and a two-stage F9 + H14 HEPA filtration system capture particles from the extracted air. Automatic start/stop synchronizes extraction with welding activity, while the ClapLap filter cleaning system simplifies routine maintenance. Its compact body and lockable castors allow easy movement between welding stations.
Application Areas
- MIG/MAG welding operations using fume-extracting torches.
- Metalworking and welding fabrication workshops.
- Individual welding stations in production facilities.
- Fabrication and maintenance work requiring a portable extraction solution across different work areas.
Key Technical Specifications
| Specification | T1/2005 |
|---|---|
| Blower type | Carbon-brush bypass |
| Motor power | 1.6 kW |
| Extraction airflow | 190 m³/h |
| Maximum vacuum | 29,500 Pa |
| Filtration system | F9 cartridge + H14 HEPA cassette |
| Suction connection | Ø50 mm |
| Power supply | 230 V / 50 Hz |
Key Features
Direct On-Torch Extraction
Connects to a fume-extracting welding torch to capture fumes close to the welding point. The extraction point follows the welding area as the torch moves.
Automatic Start/Stop
Extraction starts automatically when welding begins and stops when welding ends. Operators do not need to switch the unit on and off for each welding operation.
High-Vacuum Extraction System
The 1.6 kW carbon-brush bypass blower provides the vacuum required for on-torch extraction applications. The unit delivers an extraction airflow of 190 m³/h and a maximum vacuum of 29,500 Pa.
Two-Stage Filtration
An F9 cartridge filter with a 4.5 m² filter area and an H14 HEPA cassette filter with a 3 m² filter area work together to capture particles from welding fumes.
ClapLap Filter Cleaning System
With the motor running, close off the suction inlet. Then open and release the spring-loaded ClapLap cover six times to clean the filter.
Filter Status Monitoring
Filter status indicators help operators identify when filter maintenance or replacement is required.
Mobile and Compact Design
Lockable castors make it easy to move the unit around the workshop and secure it at the point of use. The unit is supplied with a 2 m power cable.
Contact us for connection options suited to your welding torch and operating requirements.
