Industrial PVC Welding Protection Curtain (UV & Spark Resistant) – KP Series
Welding Protection Curtain or PVC Welder Curtain is used to isolate welding areas from other work zones. One of its key features is preventing the spread of high-temperature sparks and spatter with its flame-retardant properties. It also protects against the harmful effects of ultraviolet (UV) radiation generated during welding. This helps reduce eye irritation and supports workplace safety compliance.
| Weight | - kg |
|---|---|
| Dimensions | 2 × 200 × 1000 mm |
| Curtain Type | Strip CurtainPlate Curtain |
| Color | Red |
| Curtain Width | 200mm300mm1200mm1400mm |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| KP SERIES | COLOR | THICKNESS | W | H | MATERIAL | CURTAIN TYPE | ROLL LENGTH | CERTIFICATE |
|---|---|---|---|---|---|---|---|---|
| FW CODE | (mm) | (mm) | (mm) | (m) | ||||
| 9710KKP220 | RED | 2 | 200 | 1000 | PVC | STRIP | 50 | UNCERTIFIED |
| 9710KKP230 | RED | 2 | 300 | 1000 | PVC | STRIP | 50 | DIN EN ISO 25980 / DIN EN 1598:2011-2 |
| 9710KKP212 | RED | 2 | 1200 | 1000 | PVC | PLATE | 20 | DIN EN ISO 25980 / DIN EN 1598:2011-2 |
| 9710KKP014 | RED | 0,4 | 1400 | 1000 | PVC | PLATE | 50 | DIN EN ISO 25980 / DIN EN 1598:2011-2 |
PVC Welding Protection Curtain PVC Welder Curtain is used to isolate welding areas from other work zones. One of its primary functions is to block high-temperature sparks and spatter generated during welding, thanks to its flame-retardant structure. It also protects against the harmful effects of ultraviolet radiation generated during welding operations. This contributes to preventing eye discomfort and enhances occupational health and safety compliance.
PVC Welding Curtains are manufactured in red or green colors according to global standards. Both opaque and transparent options are available, and custom dimensions can be produced based on project requirements.

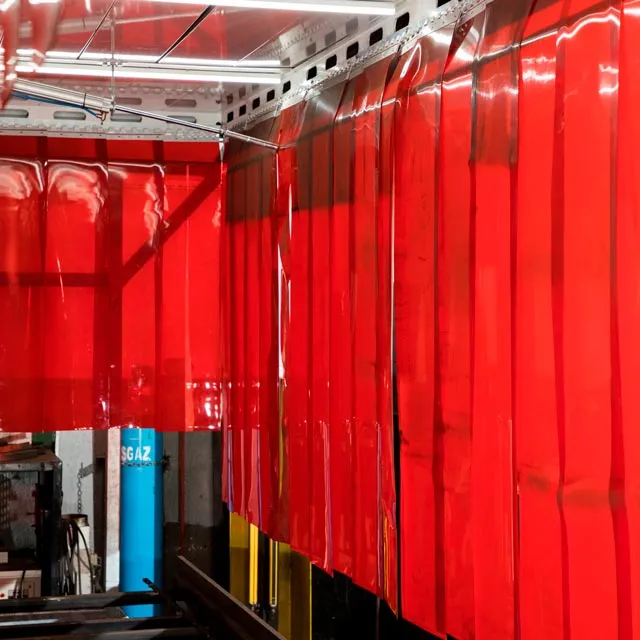

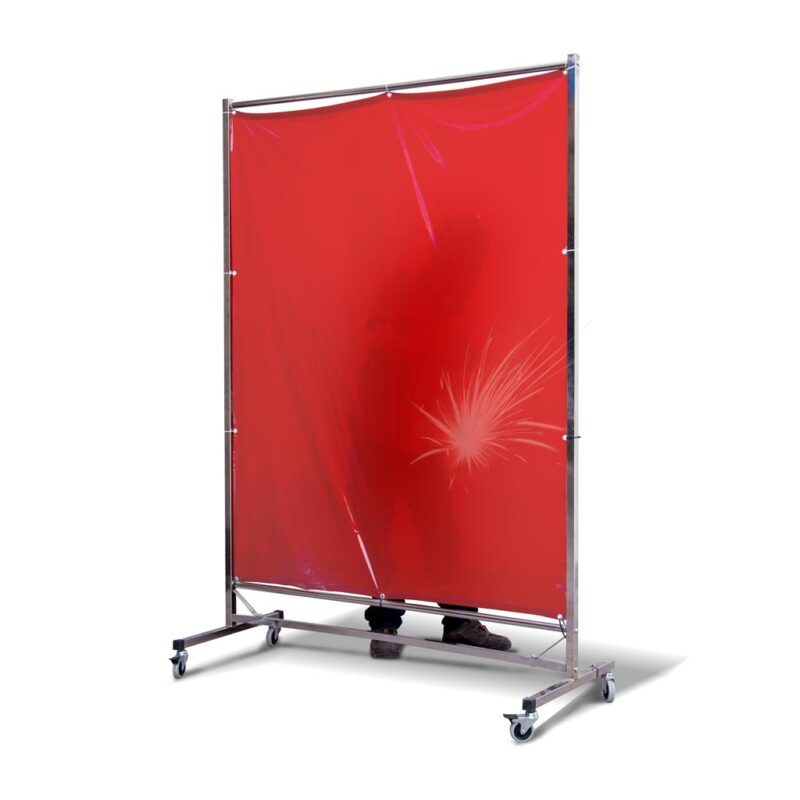

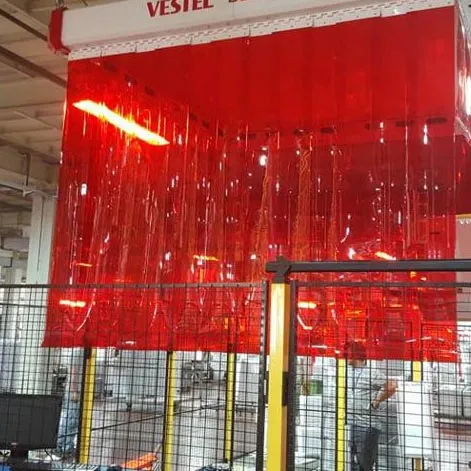

Depending on different use cases, the system can be configured either as vertical hanging PVC Strip Curtains or as single-size welding screens.
Applications
- Segregating welding production areas and factory zones,
- Protecting against hazardous welding radiation and hot spatter,
- Shielding surrounding individuals from UV radiation in outdoor public areas,
- Acting as a visual separator in industrial facilities requiring organized and clean layouts,
delivering an efficient and practical solution.
Features
- Multiple installation options tailored to your facility requirements
- Modular design enabling production in custom dimensions
- Protects personnel and equipment from spark exposure
- Easily repositionable using curtain rings
- Certified according to DIN EN ISO 25980 / DIN EN 1598:2011-2 standards

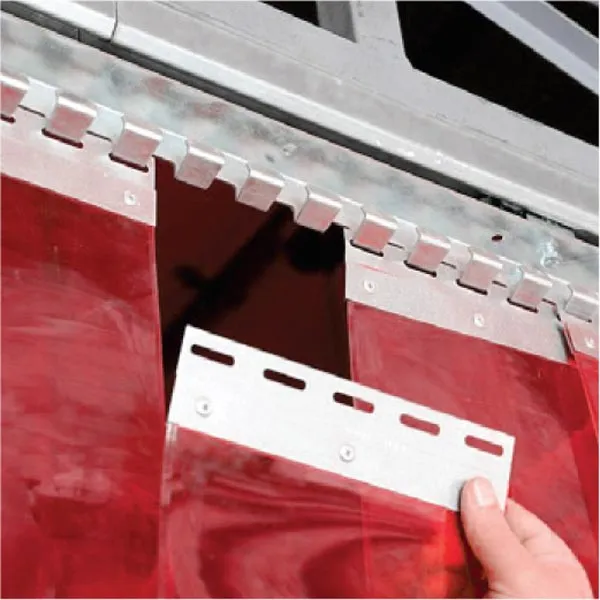

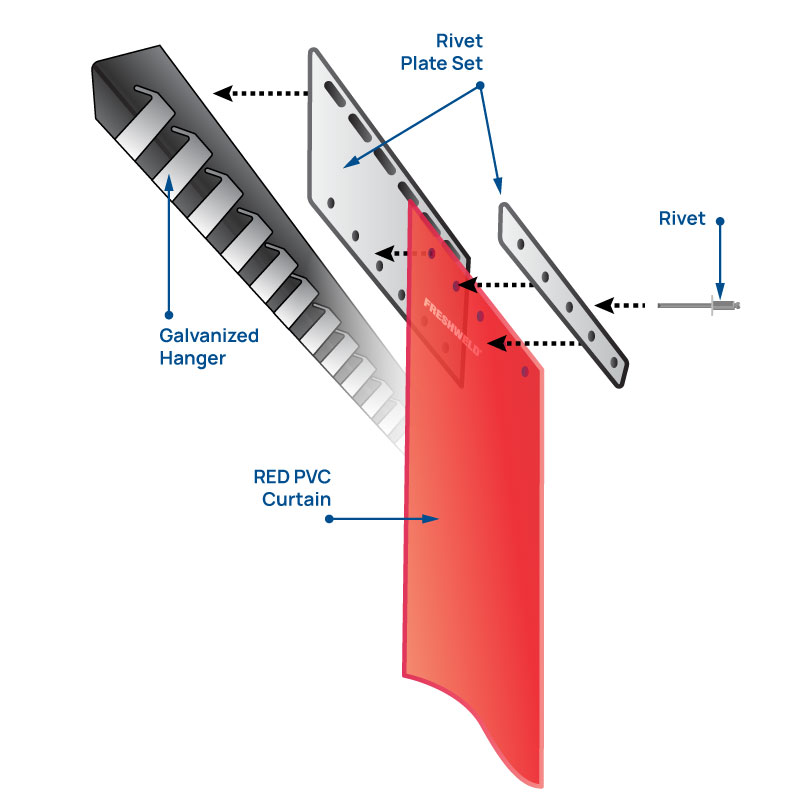

- Supplied with installation-ready components to enable fast and flexible deployment
Other Products That Match Your Selection
You may also like…
-
Shield Options for KMF Series and KTF Series Down-Draft Welding Tables and Grinding Tables
This product has multiple variants. The options may be chosen on the product page -
-

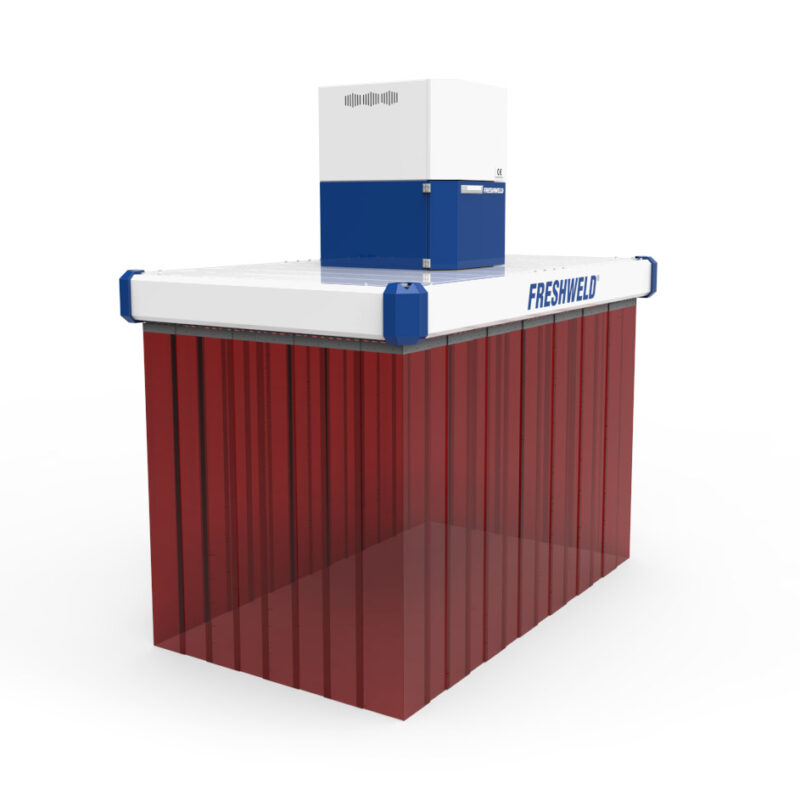

Robotic Welding Fume Extraction Hood – Modular Industrial Fume Capture Hood for Welding Automation and CNC Robots – i8/10 Series
