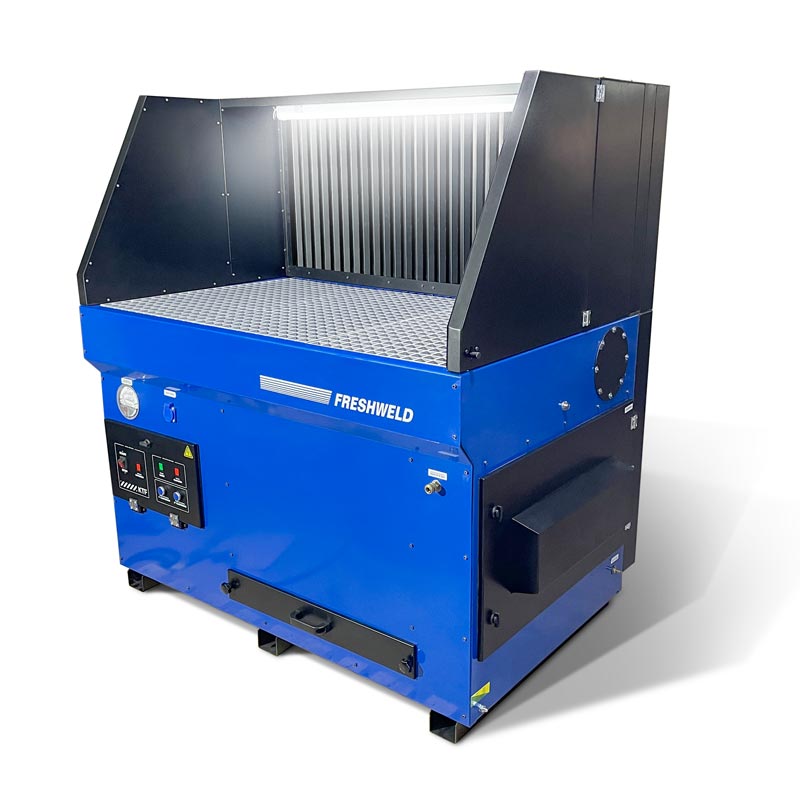

Down-Draft Grinding, Polishing, Buffing and Finishing Table – Automatic Jet Pulse Cleanable Filter – KTF PRO Series
The down-draft grinding table is specifically designed to filter fiber flap wheel dust, welding burrs, and dense chemical fumes generated during polishing, grinding, buffing, and finishing operations. Its integrated fan and filtration system provide maximum extraction efficiency while allowing clean air recirculation without the need for external exhaust systems. Collected dust and particles are easily removed via the integrated collection tray. The semi-automatic Jet Pulse filter cleaning system ensures extended filter life and uninterrupted operation. An integrated pneumatic air outlet (Quick Coupling M12) and a 230V/16A power socket provide quick access to all necessary tools.
| Weight | 300 kg |
|---|---|
| Dimensions | 1700 × 1005 × 1665 mm |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| KTF | MODEL | max. FAN CAPACITY @500 Pa | MOTOR POWER | avg. SURFACE AIRFLOW | FILTRATION DETAILS | LIGHTING | ELECTRIC & PNEUMATIC CONNECTIONS | SHIELD (h) | DIMENSIONS (mm) | WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | Series | (m³/h) | (kW) | (m/s) | Filter type | Class | Filter cleaning | Final filter | with LED | Electric | Air | (mm) | W | L | H | (kg) |
| 340KTF1500 | BASIC | 6000 | 2,2 | 1 – 1,2 | Nano Cartridge | F7 – 2×21 m² | 4-6 bar Manual | _ | _ | _ | _ | 650 | 1055 | 1500 | 1015 | 250 |
| 341KTF1500 | PRO | 6000 | 2,2 | 1 – 1,2 | Antistatic Cartridge | F7 – 2×10 m² | Semi-Auto Jet-Pulse Cleaning | E12 – 40m² | 21W – 24V DC – 6500K – IP65 | Socket 230V/16A | Quick Kaplin M12 | 650 | 1055 | 1700 | 1015 | 300 |
The KTF/1500 PRO Down-Draft Grinding Table is designed for the effective filtration of fiber flap wheel dust, welding burrs, and intense chemical fumes generated during polishing, grinding, buffing, and finishing operations.
Thanks to its integrated fan and high-efficiency filtration system, it delivers maximum extraction performance. The filtered air is safely recirculated back into the workspace without the need for an external exhaust duct, improving energy efficiency. Collected dust and particles are accumulated in an integrated dust and slag collection tray, allowing quick and easy cleaning.
The semi-automatic Jet Pulse filter cleaning system ensures long filter life and continuous operation without frequent maintenance downtime.
An integrated pneumatic air outlet (Quick Coupling M12) and a built-in 230V/16A power socket provide fast and convenient access to pneumatic and electrical tools directly at the workstation.
With the same performance and build quality, please contact us for our optional KTF BASIC economic model, which is supplied without LED lighting, outlet filter, pneumatic connection, or power socket.
Application Areas
- Polishing, grinding, buffing, and finishing applications
- Processing of small or large*, light or heavy* workpieces
- Suitable for welding operations
- Designed to filter dust and particles generated during grinding of small metal components
- –
- Modular Composite Grating enables more efficient operation for segmented or jig-based welding applications
- Optional Rubber Mat protects workpieces from surface scratches during grinding and polishing
Features
- The down draft extraction system prevents airborne dust from reaching the operator’s respiratory zone
- Effectively captures and filters harmful chemical fumes generated during operations, preventing dispersion into the working environment
- Dual-direction airflow captures sparks and particles while ensuring efficient filtration
- Integrated table lighting provides focused local illumination
- Equipped with pneumatic air outlet and electrical socket for tool operation when required
- Robust structural design ensures safe and stable working conditions
- Integrated dust tray allows easy removal of accumulated particles
- Ergonomic design ensures comfortable and fatigue-free operation
- Optional rubber mat prevents scratching of painted or finished surfaces
- Three-sided protective enclosure minimizes particle dispersion
- Plug fan technology delivers low noise levels with high extraction performance
