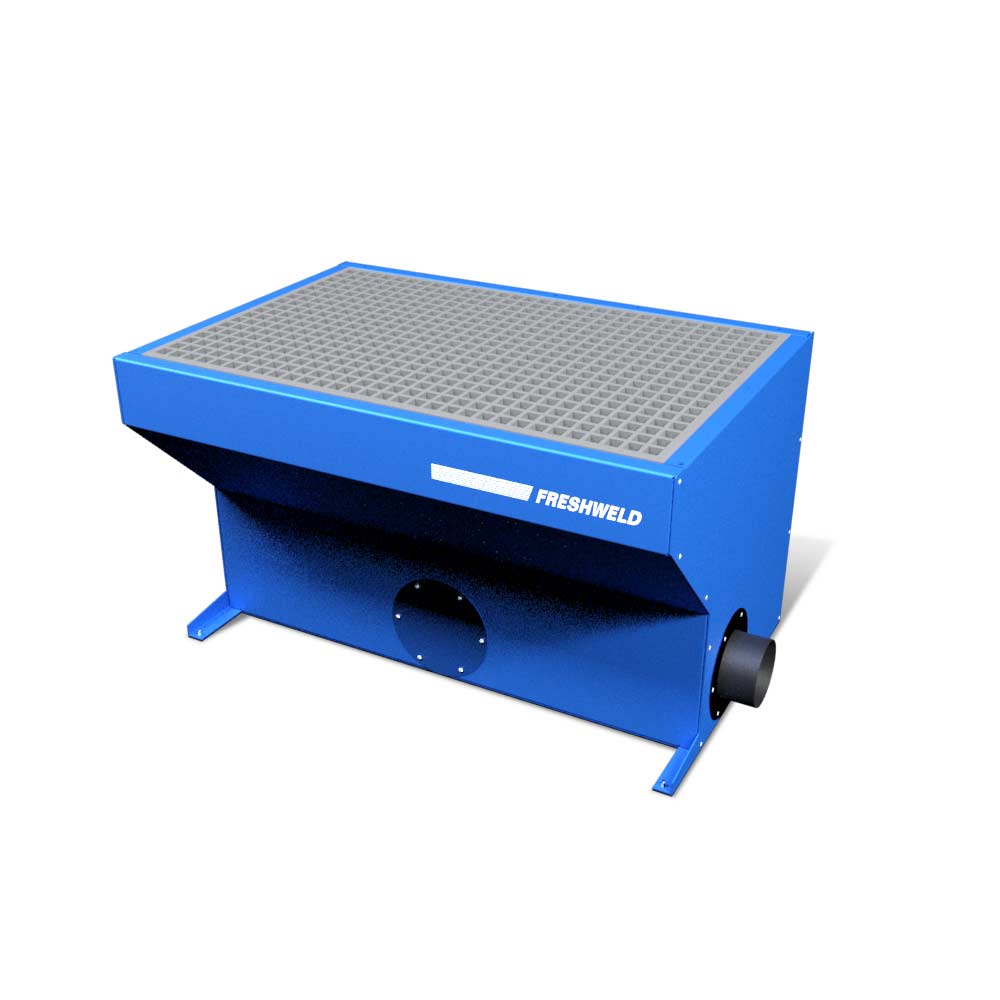

Down-Draft Grinding and Welding Tables Compatible with Central Extraction and Filtration Systems – KTM Series

The KTM Series is a fanless and filterless Down-Draft Grinding Table engineered to be connected to central extraction and filtration systems. Thanks to optional side and back shields, it offers a wide range of applications. It is ideal for welding training workshops and workstations that already equipped with central fume extraction and ventilation system. With its dust collection area, particles accumulated inside the unit can be removed and cleaned with ease.

Weight 120 kg
Dimensions 1000 × 850 × 750 mm
Workbench Sizes

800mm x 1000mm800mm x 1200mm800mm x 1500mm
Local Manufacturing,<br>Global Standards

Local Manufacturing,
Global Standards

99% Filtration<br>Efficiency

99% Filtration
Efficiency

Energy-Efficient and<br>Sustainable Design

Energy-Efficient and
Sustainable Design

Full Compliance with<br>OHS / HSE Regulations

Full Compliance with
OHS / HSE Regulations

SKU : 321KTM1000 Categories : , Brand:
Product Leaflet
Need help?

Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.

Technical Specifications Table

KTM TABLE DIMENSIONS RECOMMENDED
AIRFLOW		 PRESSURE
DROP		 DIMENSIONS
(mm)		 INLET
FW CODE (mm) (m³/h) (Pa) W L H (Ø) – mm
321KTM1000 850×1000 3000 500 850 1000 750 150-200
321KTM1250 850X1200 3500 500 850 1200 750 150-200
321KTM1500 850×1500 4000 500 850 1500 750 150-200

Shield Options

SHIELD OPTIONS INTEGRATED SHIELD TYPE SHIELD HEIGHT DIMENSIONS
(mm)
FW CODE VERSION VERSION FW CODE (mm) W L H
331SPR1040 KTM/1000 321KTM1000 BLACK SHIELD 400 850 1000 400
33SPRP1040 KTM/1000 321KTM1000 SHIELD WITH RED PLEXI WINDOW 400 850 1000 400
331SPR1065 KTM/1000 321KTM1000 BLACK SHIELD 650 850 1000 650
33SPRP1065 KTM/1000 321KTM1000 SHIELD WITH RED PLEXI WINDOW 650 850 1000 650
331SPR1240 KTM/1250 321KTM1250 BLACK SHIELD 400 850 1200 400
33SPRP1240 KTM/1250 321KTM1250 SHIELD WITH RED PLEXI WINDOW 400 850 1200 400
331SPR1265 KTM/1250 321KTM1250 BLACK SHIELD 650 850 1200 650
33SPRP1265 KTM/1250 321KTM1250 SHIELD WITH RED PLEXI WINDOW 650 850 1200 650
331SPR1540 KTM/1500 321KTM1500 BLACK SHIELD 400 850 1500 400
33SPRP1540 KTM/1500 321KTM1500 SHIELD WITH RED PLEXI WINDOW 400 850 1500 400
331SPR1565 KTM/1500 321KTM1500 BLACK SHIELD 650 850 1500 650
33SPRP1565 KTM/1500 321KTM1500 SHIELD WITH RED PLEXI WINDOW 650 850 1500 650

Applications

  • Designed for capturing dust generated during welding and grinding of small metal parts
  • Suitable for both precision grinding and heavy-duty grinding operations
  • Suitable for use as a Welding Table for manual welding applications

Features

  • Down-Draft extraction prevents fumes and dust from reaching the operator’s breathing zone
  • Can be connected to your central ventilation system for grinding and welding processes
  • Operates integrated with external central filtration systems
  • Robust table construction provides a safe and stable work surface
  • Ergonomic design ensures comfortable and efficient working conditions
  • Thick, chrome-plated grating offers long service life
  • Optional side and back shields prevent particles from spreading into the surrounding area
