Industrial Dust Collection Cartridge Filter System for Large-Scale Industrial Facilities – Pulsatron Compact TSXL

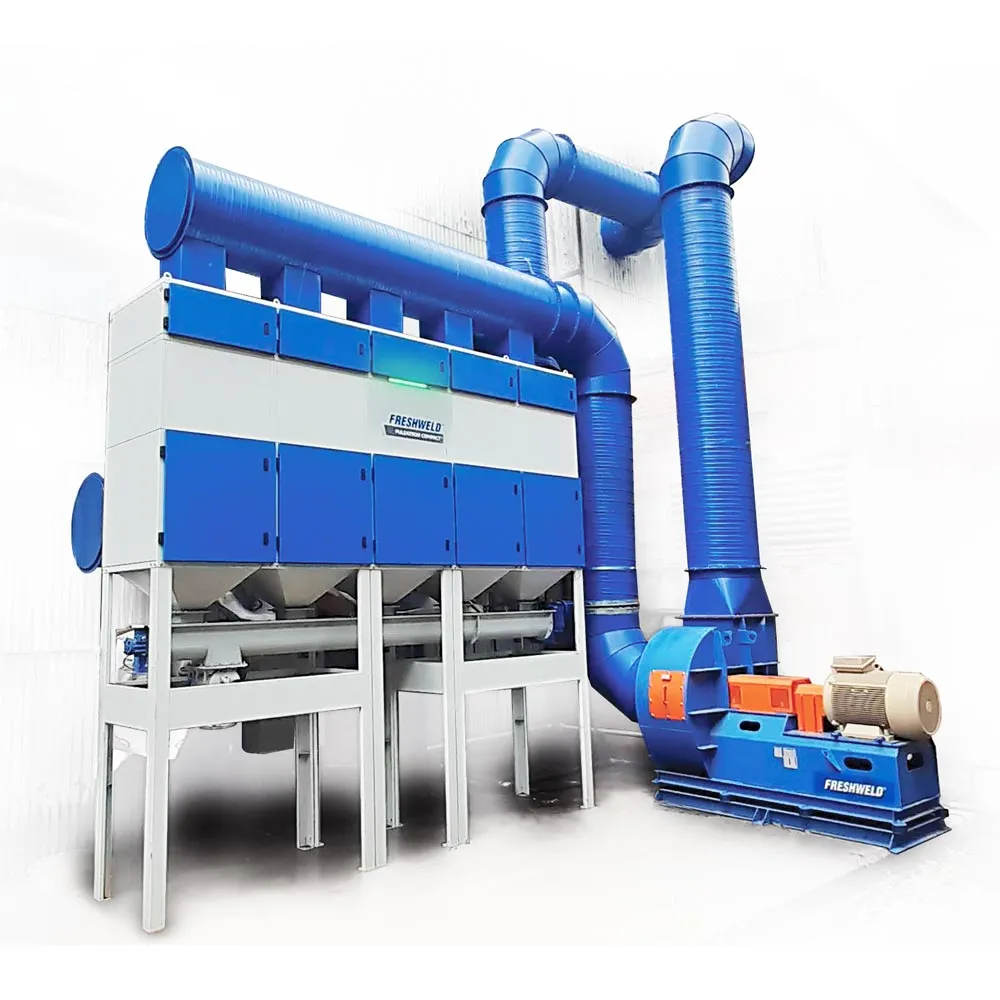

Designed for filtering dense dry dust and fumes generated in large-scale industrial facilities in compliance with occupational health and safety standards. Multiple extraction points are connected via a centralized ducting system to a modular filter unit installed outside the building. Jet Pulse cleanable cartridge filters ensure high filtration efficiency with minimal maintenance. Thanks to its modular structure, the system can be scaled to meet different airflow and capacity requirements.
| Weight | - kg |
|---|---|
| Dimensions | 930 × 850 × 2525 mm |
| Airflow m³/h | 4000m³ – 8000m³8000m³ – 16000m³12000m³ – 24000m³16000m³ – 32000m³20000m³ – 40000m³24000m³ – 48000m³ |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| PULSATRON TSXL | AIRFLOW | SURFACE AREA |
INTEGRATED WITH | CONNECTIONS (mm) |
DIMENSIONS (mm) |
|||
|---|---|---|---|---|---|---|---|---|
| FW CODE | (m³/h) | (m²) | * There is no fan in TSXL SERIES | INLET | OUTLET | W | L | H |

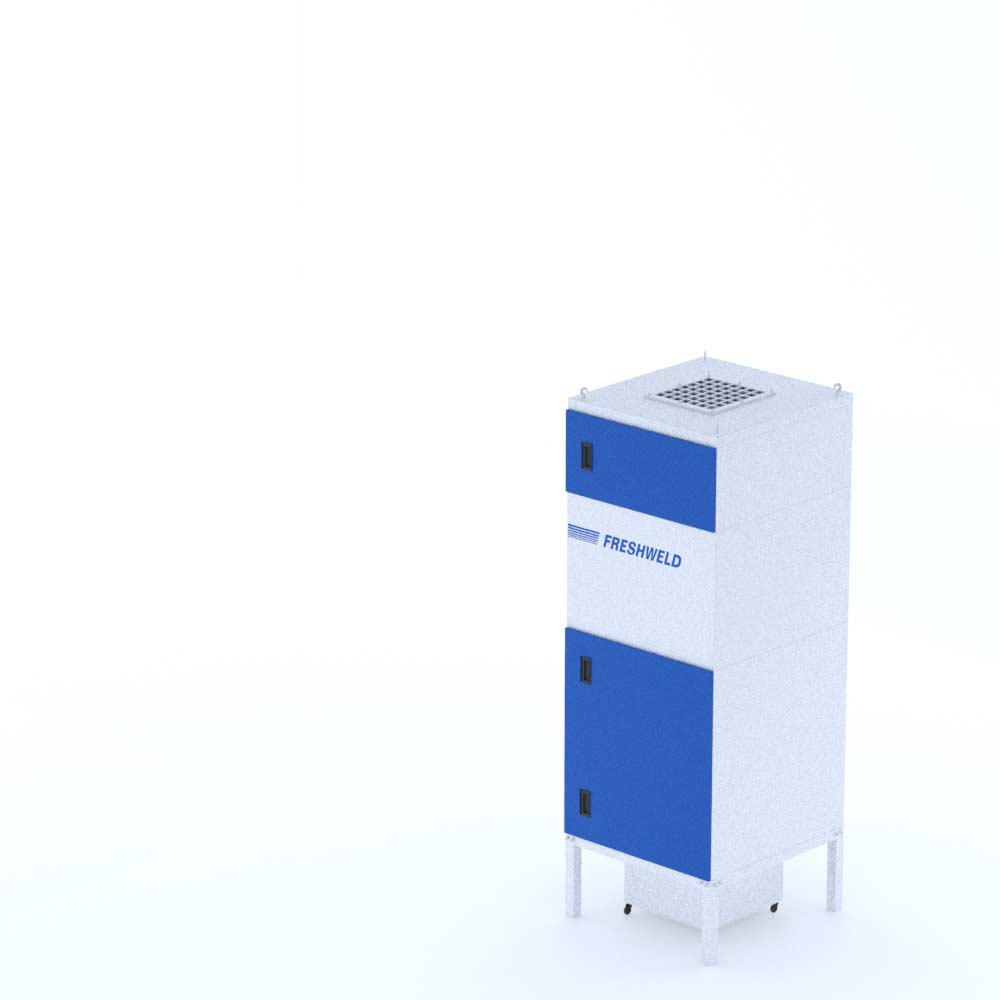

| 515PC04004 | 4000 – 8000 | 80 | Combined with a fan suitable for your project | Ø350 | Ø350 | 930 | 850 | 2525 |

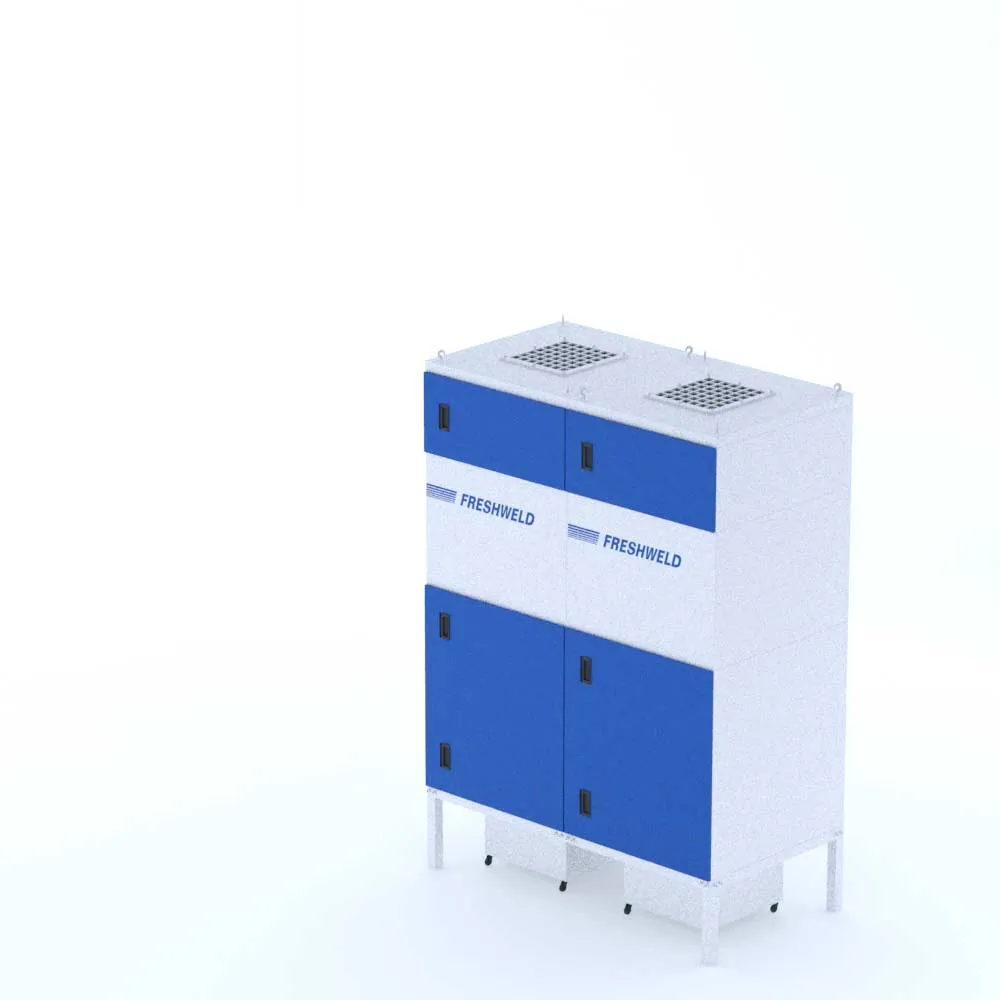

| 515PC08008 | 8000 – 16000 | 160 | Combined with a fan suitable for your project | 2 x Ø350 | 2 x Ø350 | 930 | 1700 | 2525 |

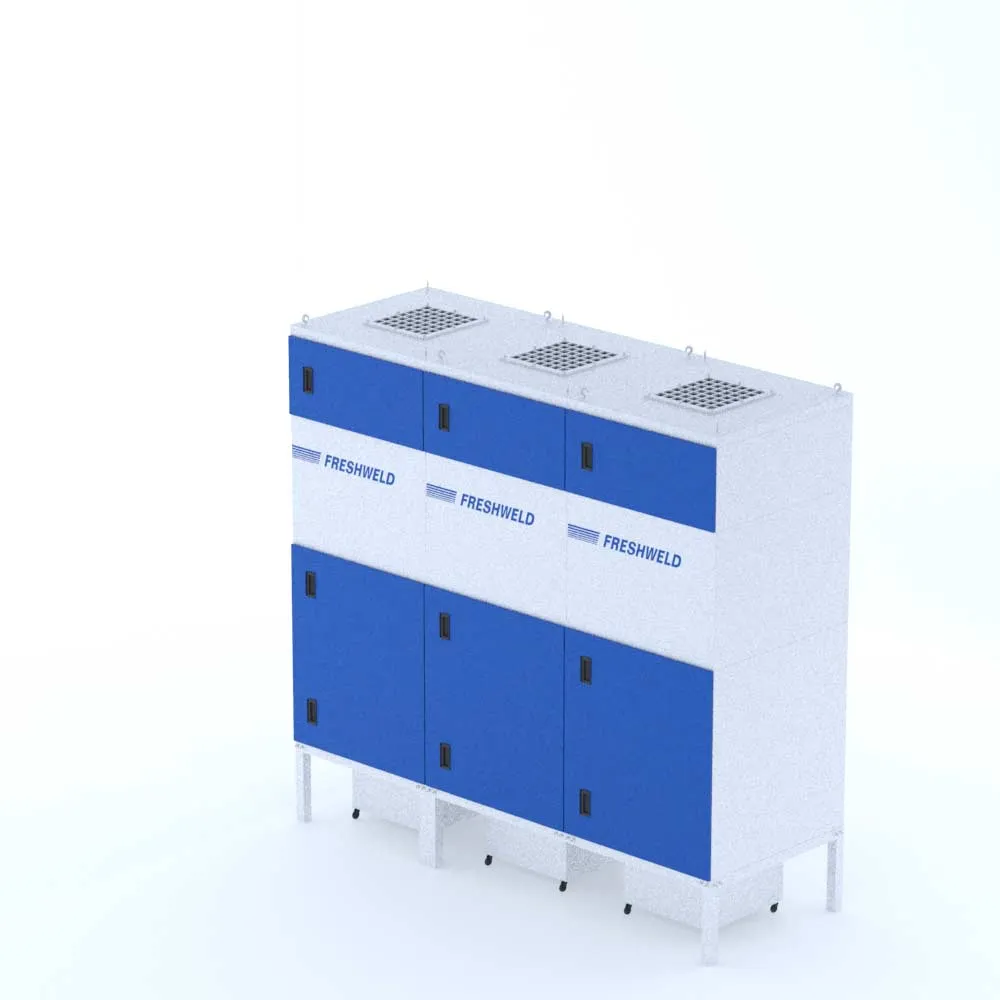

| 515PC12012 | 12000 – 24000 | 240 | Combined with a fan suitable for your project | 3 x Ø350 | 3 x Ø350 | 930 | 2550 | 2525 |

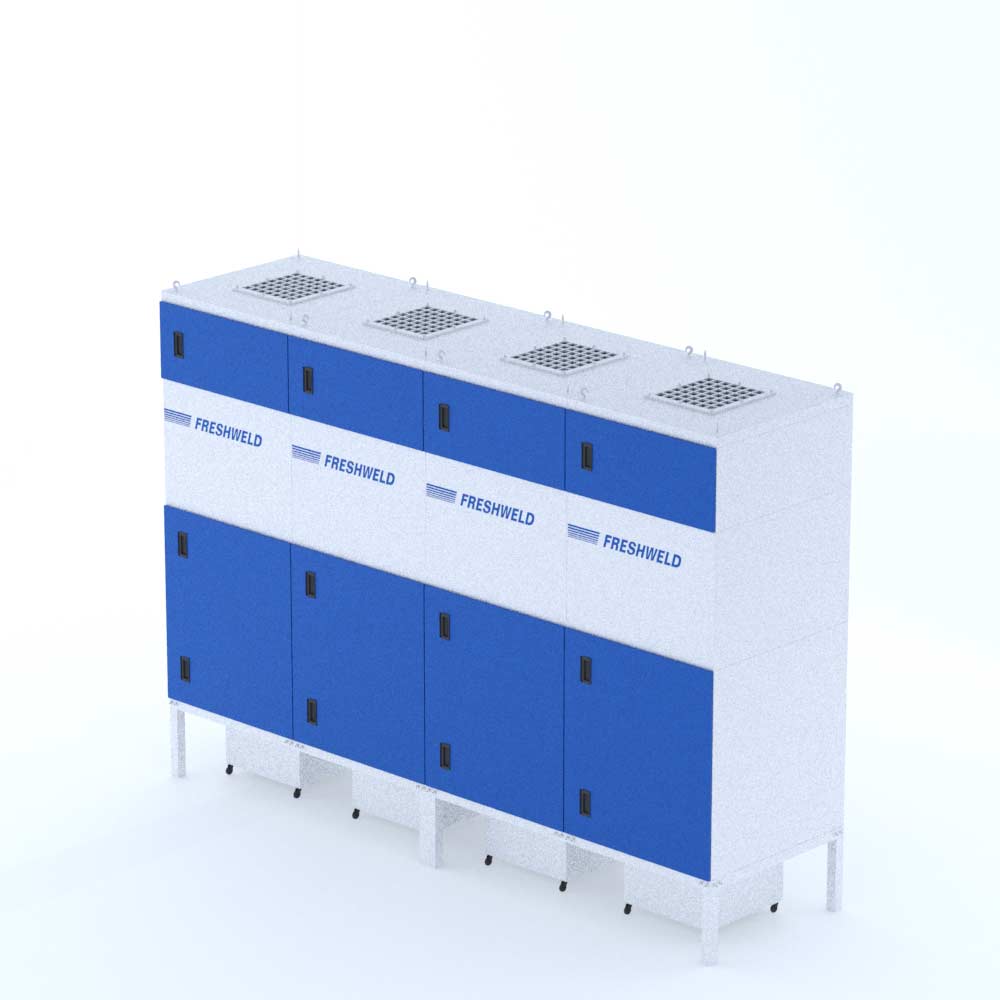

| 515PC16016 | 16000 – 32000 | 320 | Combined with a fan suitable for your project | 4 x Ø350 | 4 x Ø350 | 930 | 3400 | 2525 |
| 515PC20020 | 20000 – 40000 | 400 | Combined with a fan suitable for your project | 5 x Ø350 | 5 x Ø350 | 930 | 4250 | 2525 |
| 515PC24024 | 24000 – 48000 | 480 | Combined with a fan suitable for your project | 6 x Ø350 | 6 x Ø350 | 930 | 5100 | 2525 |

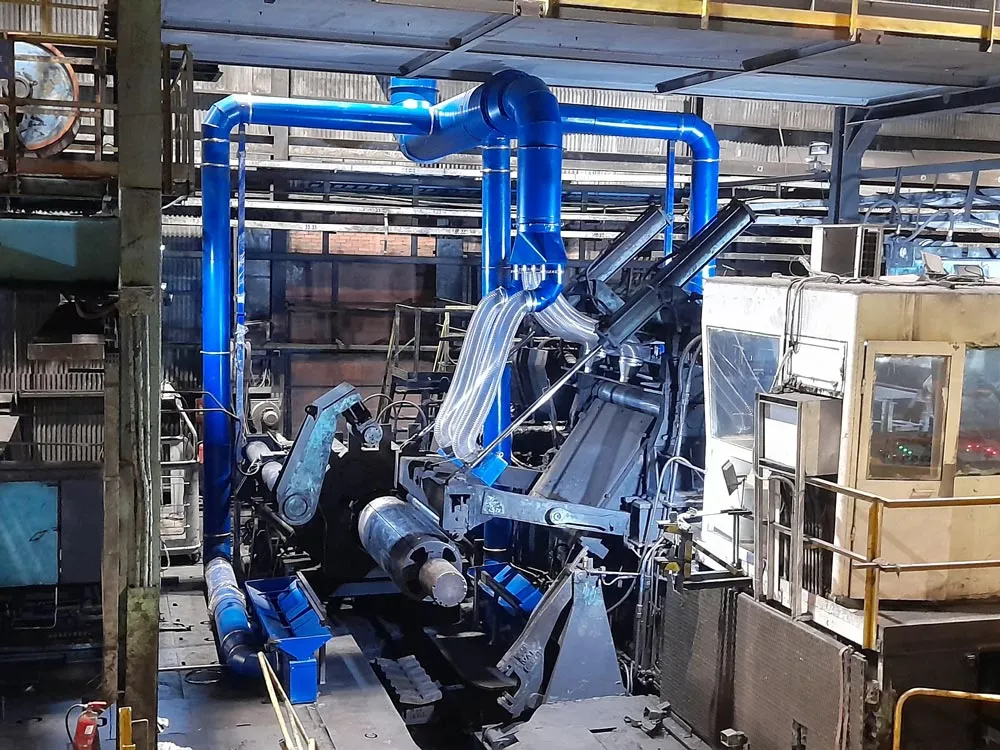

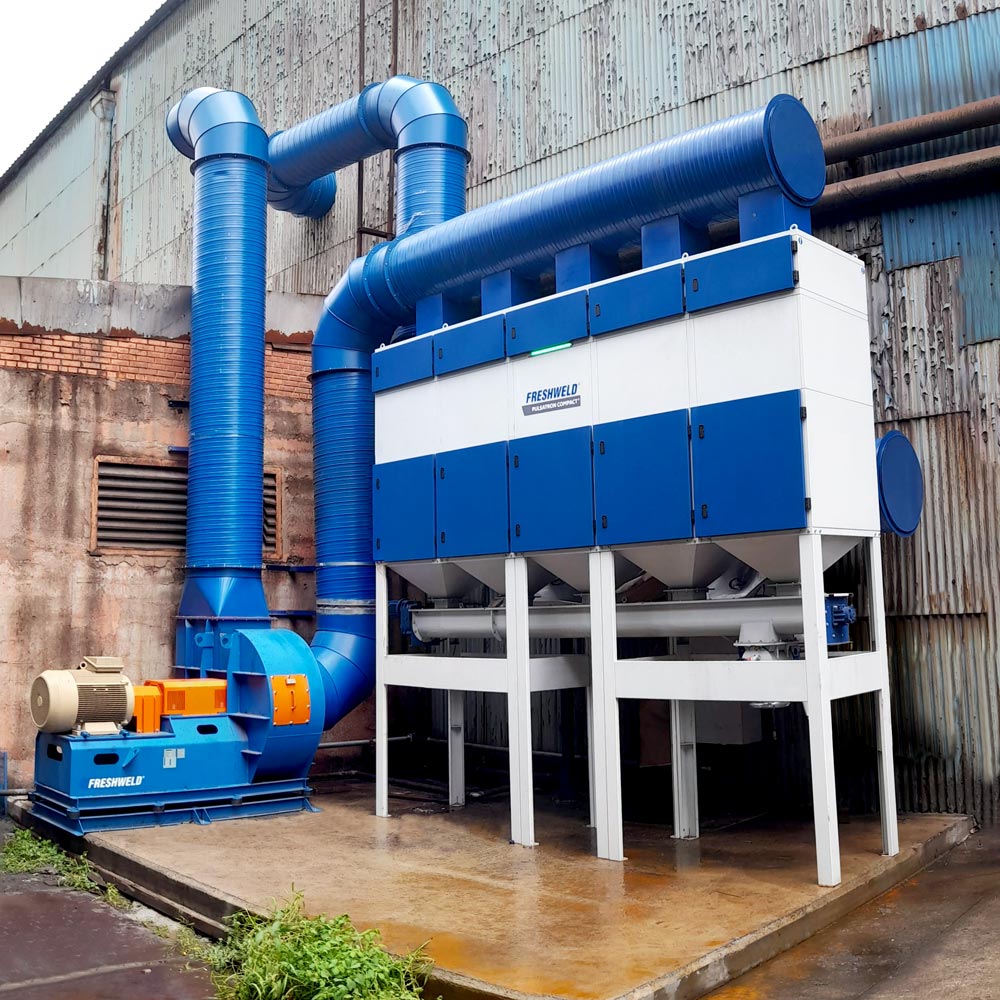

Industrial Dust Collection Cartridge Filtration solutions are designed for filtering dense dry dust and fumes generated during operations in large-scale industrial facilities, in compliance with occupational health and safety standards. Suction points distributed across the production area are connected via a centralized ducting system and directed to a modular filter unit installed outside the building.
Thanks to non-disposable, Jet Pulse cleanable cartridge filters, the system maintains high filtration efficiency over long operating periods without the need for frequent maintenance downtime. The replacement time of long-life cartridge filters is indicated via warnings on the control panel, while the programmable control panel ensures easy and reliable operation. With its modular design, the system can be scaled according to different airflow and capacity requirements.
Areas of Use
- Industrial Dust Collection Cartridge Filter System for Large-Scale Industrial Facilities
- Designed for filtering fumes and dust generated during industrial applications.
- Suitable for welding, grinding, sandblasting, laser cutting, plasma cutting, and polishing applications.
- Ideal dust collection and filtration solution for foundries and large-scale production areas with high dust concentrations.
Main Application Areas
- Laser Cutting Systems
- Sandblasting
- Deburring
- Welding Fume Extraction
- Grinding
- Foundries
- Dry Machining in Machine Tools
- Chemical Applications
- Epoxy Coating
- Pharmaceutical Applications
- Plastic Material Processing
- Coal Processing
- Silo Ventilation
- Metal Polishing
- Cement Production and Processing
- Dusty Material Handling
- Plasma Cutting Applications
- Polishing Operations
Features
- Guaranteed emission value of ≤ 5 mg/Nm³
- Low noise level between 68 – 75 dBA
- Jet Pulse automatic filter cleaning system enables self-cleaning of filters using compressed air
- Modular central filtration system design provides both functional and aesthetic integration into industrial facilities
- Manufactured according to project-specific requirements with airflow capacities ranging from minimum 4,000 m³/h to maximum 48,000 m³/h
Options
- Silencer
- 3-color (Red – Yellow – Green) LED filter contamination indicator
- Integrated HEPA filter for absolute filtration efficiency
- Automatic dust discharge system
- Mechanical shaker system for filter cleaning
- Start & Stop or frequency-controlled electrical control panel
- Horizontal spark arrestor cyclone for special applications
