Static Oil Mist Filter – Coalescence-Based Emulsified Oil Mist Treatment Unit for Centralized Systems – MIST Compact V Series

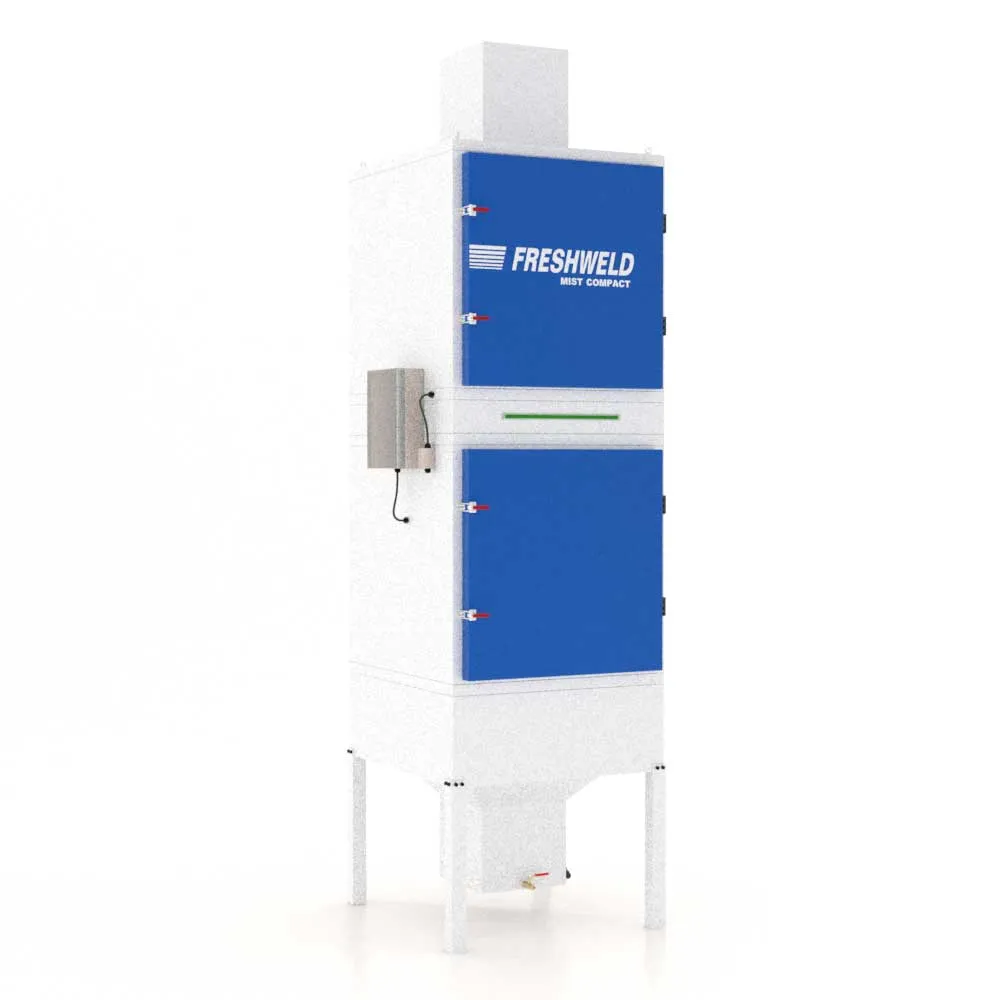

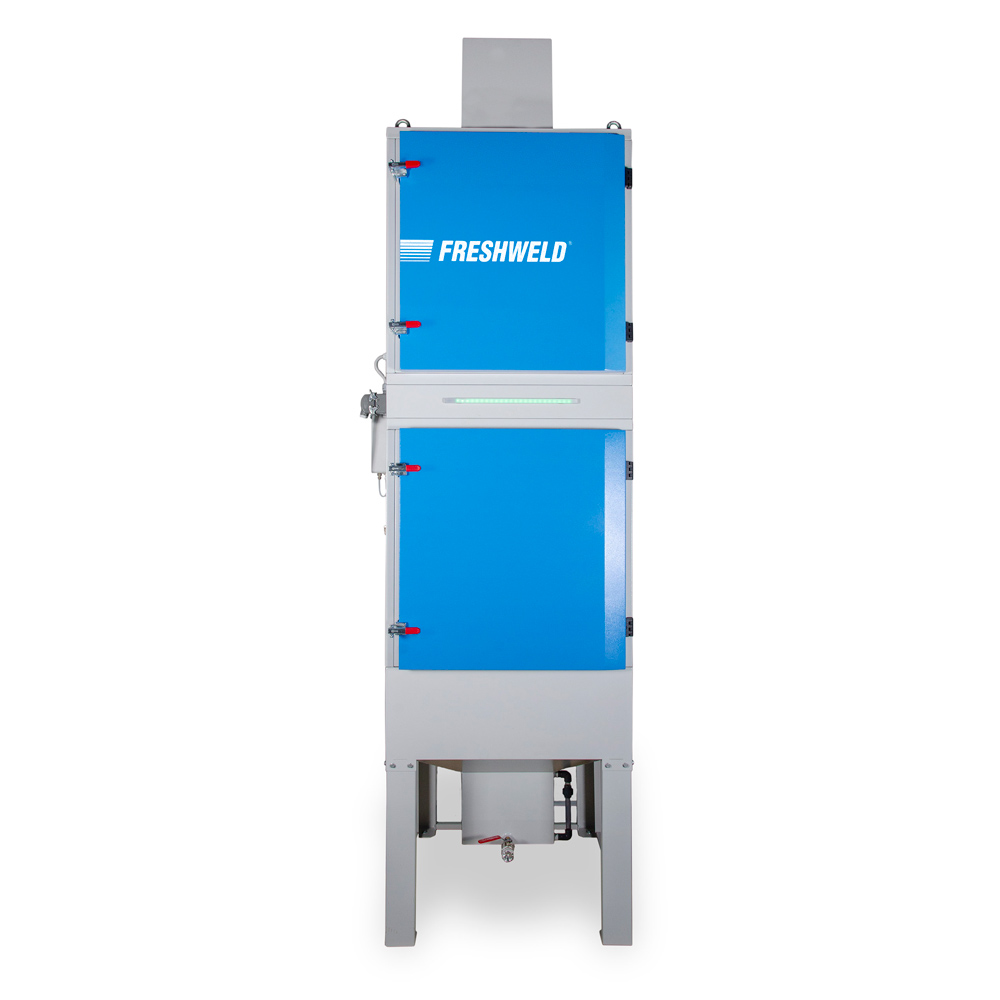

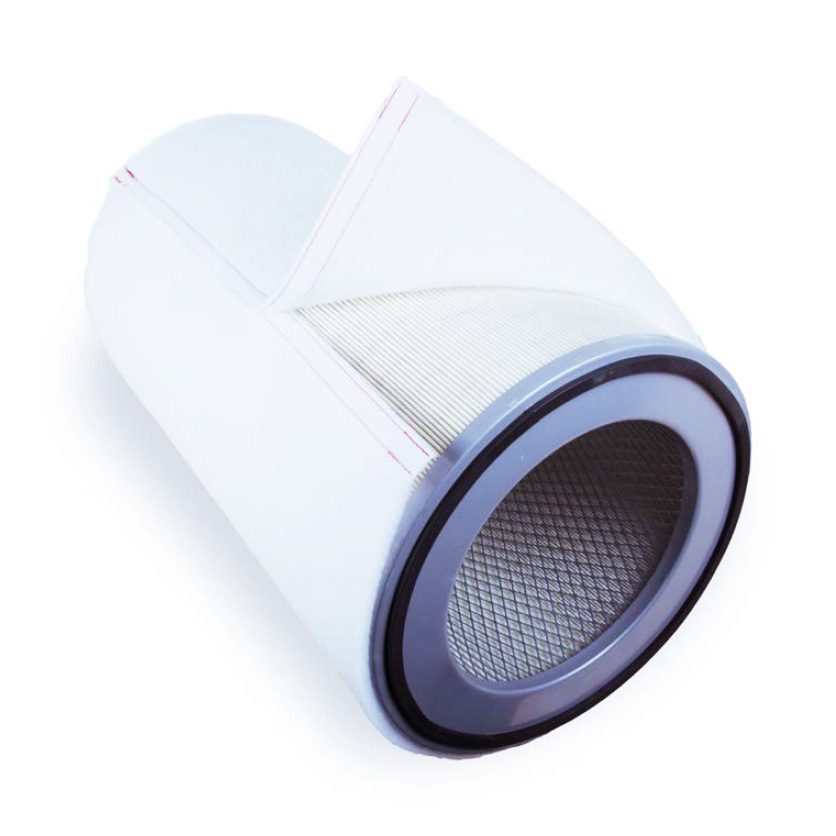

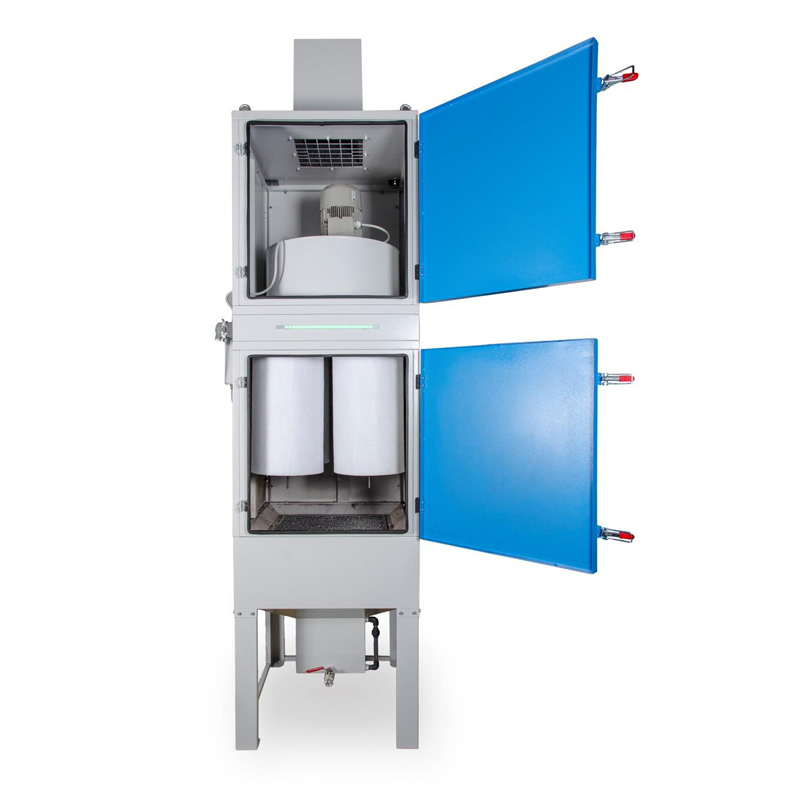

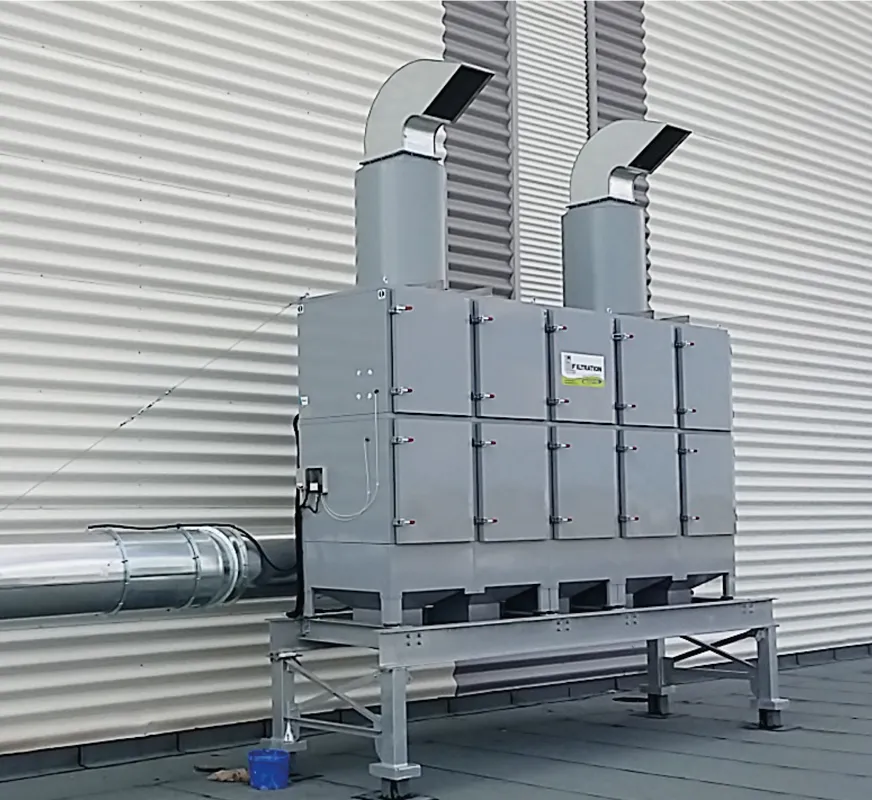

MIST COMPACT™ is a static, coalescence-based oil mist filter designed for centralized systems. Thanks to its pleated fiberglass cartridges and external polypropylene membrane, it efficiently treats emulsified oil mist to deliver clean air. Suitable for CNC, lathe, clamping, drilling, tapping, threading, cutting, and general mechanical machining operations where emulsified cutting oils are present.
| Weight | - kg |
|---|---|
| Dimensions | 900 × 850 × 2920 mm |
| Airflow (m³/h) | 3000 m³/h6000 m³/h8000 m³/h12000 m³/h14000 m³/h |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| MIST COMPACT V | AIRFLOW | STATIC PRESSURE | MOTOR POWER | SURFACE AREA | FILTRATION SPEED | CONNECTIONS (mm) | DIMENSIONS (mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m³/h) | (Pa) | (kW) | (m²) | (m²/m³/minute) | INLET | OUTLET | W | L | H |
| 621MCTV104 | 3000 | 2800 | 4 | 84 | 0,59 | Ø300 | Ø300 | 900 | 850 | 2920 |
| 621MCTV208 | 6000 | 2000 | 5,5 | 168 | 0,59 | 2 x Ø300 | 362 x 405 | 900 | 1700 | 2765 |
| 621MCTV312 | 8000 | 2450 | 7,5 | 252 | 0,53 | 3 x Ø300 | 362 x 405 | 900 | 2550 | 2765 |
| 621MCTV416 | 12000 | 2000 | 2 x 5,5 | 336 | 0,59 | 4 x Ø300 | 2 x (362 x 405) | 900 | 3400 | 2765 |
| 621MCTV520 | 14000 | 2450 | 2 x 7,5 | 420 | 0,55 | 5 x Ø300 | 2 x (362 x 405) | 900 | 4250 | 2765 |
Mist Compact Powerful Oil Mist Filtration
Designed for those who demand maximum filtration performance in limited spaces!
Mist Compact is a space-saving yet powerful solution developed to protect employee health and maintain a clean working environment in machining processes with high concentrations of oil mist filter and fine particles. Despite its compact footprint, it delivers industrial-grade performance.
Why Mist Compact?
- Compact Design: Optimized for confined spaces, allowing installation inside CNC enclosures or directly on the machine.
- High Filtration Efficiency: Its multi-layer internal filter structure captures oil mist, aerosol, and micro-particles with high efficiency.
- Easy Installation and Maintenance: User-friendly filter replacement system enables fast maintenance without the need for technical service.
- Plug-and-Play Operation: Quick commissioning via 230V power connection, no additional equipment required.
Technical Specifications
| Specification | Value |
|---|---|
| Airflow Capacity | 1250 m³/h |
| Motor Power | 0.75 kW (Single Phase – 230V) |
| Housing Structure | Painted Steel |
| Filter Stages | Multi-stage internal filtration system |
| Operating Principle | Oil mist and fine particle filtration |
| Installation Type | Top-mounted / side-mounted (suitable for compact spaces) |
Applications
- Compact CNC machining centers
- Oil-based cutting and machining machines
- Integrated washing systems
- Enclosed chip-forming manufacturing processes
- Laboratory-scale production lines
Mist Compact Oil Mist Filter ensures effective filtration even in limited spaces, enhancing workplace safety while supporting environmental compliance.
Frequently Asked Questions (FAQ)
- 1. Which machines is Mist Compact suitable for?
- It can be mounted on CNC machines with limited space, enclosed machining units, or mobile production lines.
- 2. How easy is oil mist filter replacement?
- Thanks to its user-friendly locking mechanism, filters can be replaced quickly without requiring technical expertise.
- 3. Should this model or the MCOS model be preferred?
- Mist Compact is ideal for limited spaces with moderate oil mist emission. For processes with high mist and particle loads, the MCOS model is more suitable.
- 4. How is the power supply provided?
- It operates via a standard 230V outlet. No additional infrastructure investment is required.
- 5. What is the noise level?
- Its compact motor design allows low-noise operation without compromising operator comfort.
Other Products That Match Your Selection
You may also like…
-

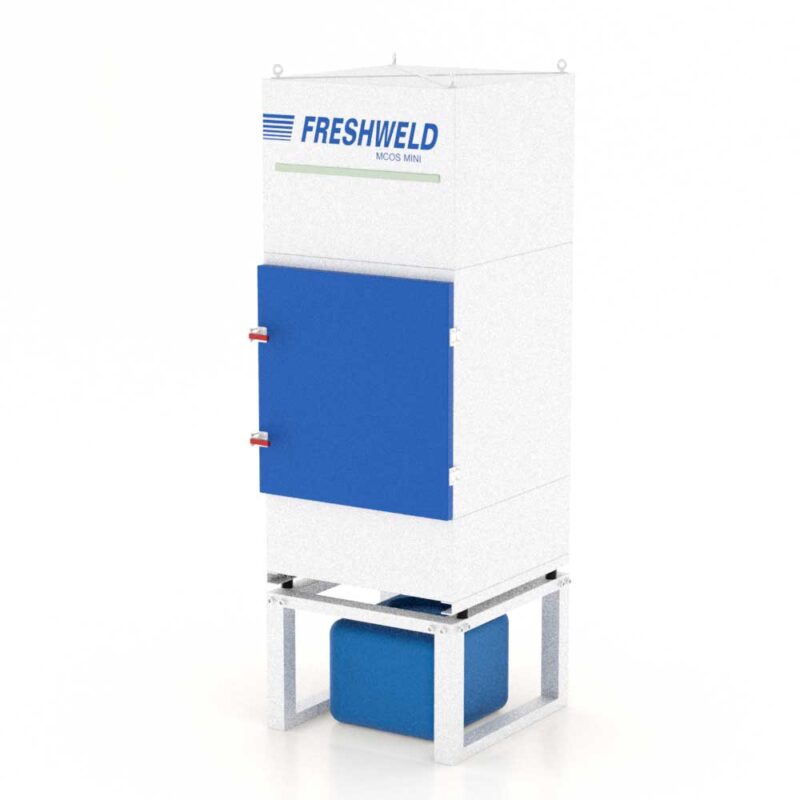

High-Density Oil Mist and Micro-Particle Filtration System for CNC Machining and Metalworking – MCOS Mini
