High-Density Oil Mist and Micro-Particle Filtration System for CNC Machining and Metalworking – MCOS Mini

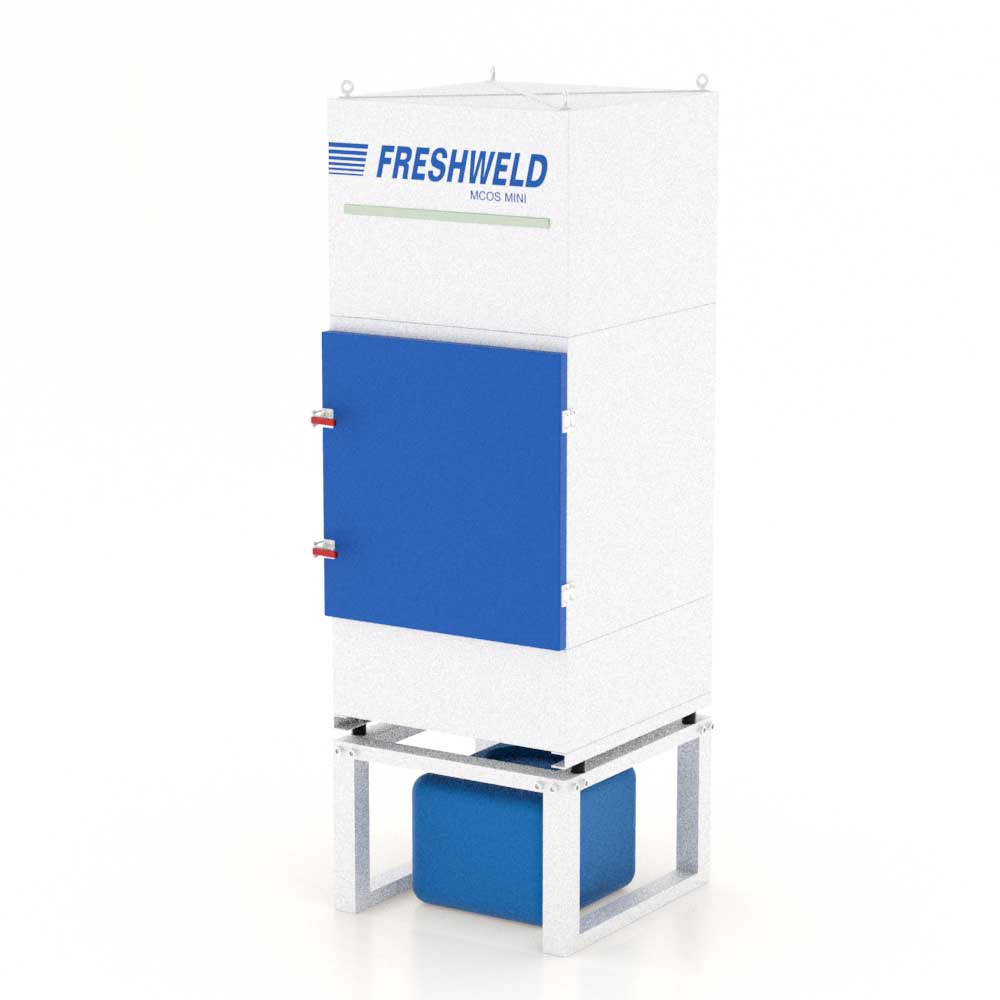

A filtration system designed to separate oil and smoke particles under harsh operating conditions, utilizing the coalescence principle. The MCOS Mini-R and MCOS Mini-G models allow flexible installation options. The MCOS Mini-R (Roof) model can be mounted on top of the machine using a carrier bracket, while the MCOS Mini-G (Ground) model can be combined with a 30-liter oil collection tank for ground-mounted installations.
| Weight | 90 kg |
|---|---|
| Dimensions | 530 × 555 × 1580 mm |
| Model | MCOS Mini G (ground)MCOS Mini R (roof) |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| MCOS MINI | AIRFLOW | STATIC PRESSURE | MOTOR POWER | FILTRATION STAGES | FILTER QUANTITY | CONNECTIONS (mm) | DIMENSIONS (mm) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m³/h) | (Pa) | (kW) | 1° | 2° | INLET | OUTLET | W | L | H | |
| 613MCOS11R | 1000 | 1400 | 1,1 | F9 | E12 | 1+1 | Ø150 | Ø300 | 530 | 555 | 1255 |
| 613MCOS11G | 1000 | 1400 | 1,1 | F9 | E12 | 1+1 | Ø150 | Ø300 | 530 | 555 | 1565 |
High-density oil mist, smoke, and microscopic particles generated during heavy-duty machining processes pose serious risks to employee health while also reducing machine lifespan.
The MCOS Coalescence filtration system delivers long-lasting, high-efficiency filtration in environments with extremely high oil particle concentration. It is specifically engineered for maximum performance in CNC machines, industrial washing systems, and metalworking production lines.
Why MCOS Coalescence?
- High Efficiency with Coalescence Technology: Advanced coalescence cartridge filters capture even the smallest micron-sized oil droplets in the mist, achieving up to 99% filtration efficiency. Operates with low pressure loss, supporting energy savings.
- Modular Cassette System: The cassette-style cartridge design allows fast and easy maintenance and replacement, ensuring uninterrupted operation in high-intensity production environments.
- Industrial-Grade Durability: Featuring a metal housing, chemical-resistant coating, and long-life filter media, the system is built for demanding industrial conditions.
Technical Specifications
- Filtration Type: Coalescence cartridge filter
- Filtration Efficiency: Up to 99% (oil mist and smoke)
- Housing Structure: Industrial painted steel body
- Application Areas: CNC machining centers, industrial washing machines, oily chip manufacturing processes
Applications
- CNC lathes and machining centers generating high oil mist
- Industrial parts washing and drying machines
- Grinding and oil-based cutting operations
- Metal processing lines and production cells
- Chemical cleaning cabinets
MCOS Coalescence delivers superior performance even in systems with extremely high particle loads, protecting both employee health and production equipment.
Frequently Asked Questions (FAQ)
- 1. What is the service life of the MCOS Coalescence system?
- With regular maintenance, cartridge filters can operate at high efficiency for 6 to 12 months. Service life may vary depending on filtration load.
- 2. Which processes is it best suited for?
- It provides optimal results in CNC machining lines, grinding, washing, and cutting systems where high-density oil mist and micro oil droplets are generated.
- 3. Can the MCOS system be integrated into existing machines?
- Yes. Thanks to its modular design and compatibility with different connection diameters, it can be easily integrated into existing production lines.
- 4. How is filter replacement performed?
- The cassette-type cartridge filters are removed and installed easily using a special locking mechanism, without requiring technical service support.
- 5. When should the SKY model be preferred instead of MCOS?
- The SKY model is ideal for production lines with lower oil mist density (Click to view the SKY Series). For processes with very high particle loads and high-volume oil mist emissions, MCOS is the more suitable solution.
