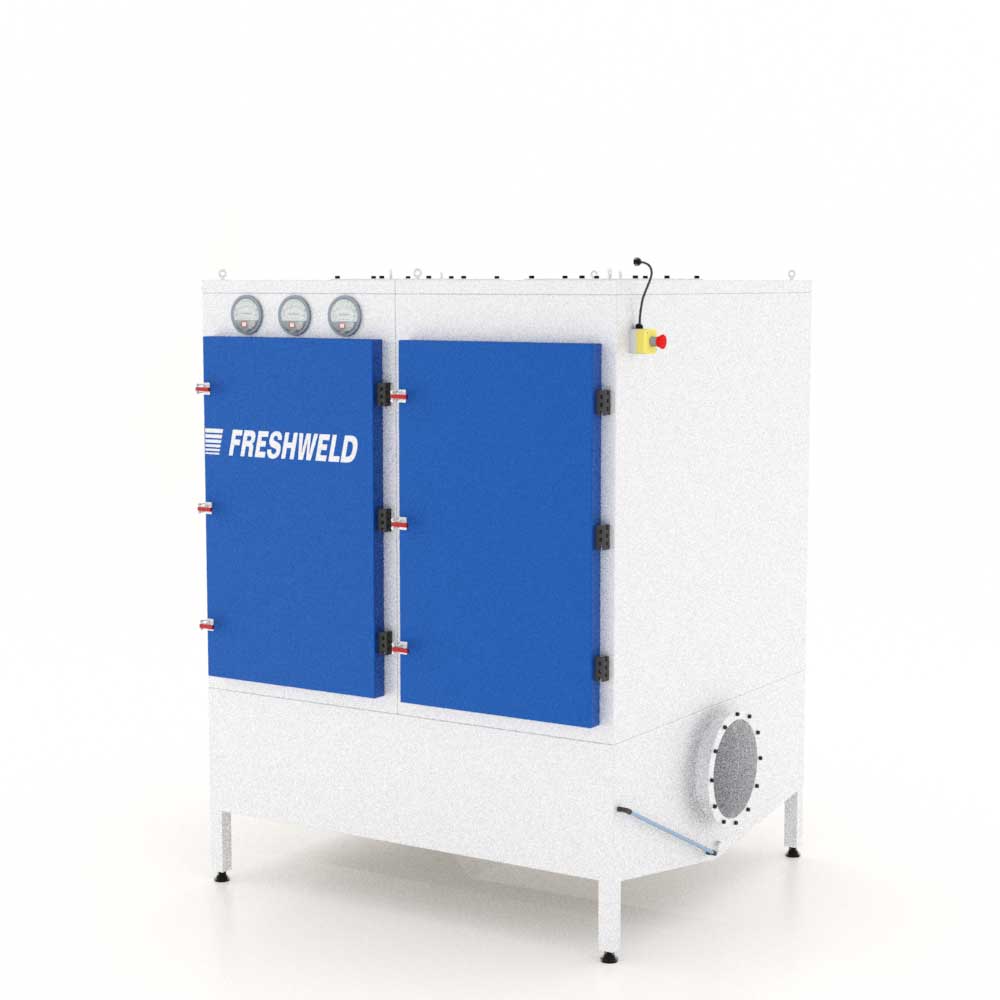

High-Density Oil Mist and Micro-Particle Filtration – MCOS S Series
  1. High-Density Oil Mist and Micro-Particle Filtration – MCOS S Series
  2. High-Density Oil Mist and Micro-Particle Filtration – MCOS S Series - Image 2
  3. High-Density Oil Mist and Micro-Particle Filtration – MCOS S Series - Image 3

High-Density Oil Mist and Micro-Particle Filtration – MCOS S Series

MCOS S Series units do not include an integrated fan. Instead, the required airflow is achieved using an external fan during project design. This filtration system is based on the coalescence principle, specifically engineered to separate oil and smoke particles under demanding operating conditions.

Weight - kg
Dimensions 685 × 730 × 1850 mm
Airflow

2000 m³/h4000 m³/h8000 m³/h12000 m³/h16000 m³/h20000 m³/h
Local Manufacturing,<br>Global Standards

Local Manufacturing,
Global Standards

99% Filtration<br>Efficiency

99% Filtration
Efficiency

Energy-Efficient and<br>Sustainable Design

Energy-Efficient and
Sustainable Design

Full Compliance with<br>OHS / HSE Regulations

Full Compliance with
OHS / HSE Regulations

SKU : 612MCOSS01 Categories : , Brand:
Need help?

Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.

Technical Specifications Table

MCOS
S		 AIRFLOW INTEGRATED FILTRATION STAGES FILTER
QUANTITY		 CONNECTIONS
(mm)		 DIMENSIONS
(mm)
FW CODE (m³/h) NO FAN * 1° 2° INLET OUTLET W L H
612MCOSS01 2000 Combined with a fan suitable for your project F7 F9 1+1 Ø200 Ø300 685 730 1850
612MCOSS02 4000 Combined with a fan suitable for your project F7 F9 2+2 Ø300 Ø300 1280 730 2000
612MCOSS04 8000 Combined with a fan suitable for your project F7 F9 4+4 500 x 300 2 x Ø300 1280 1460 2100
612MCOSS06 12000 Combined with a fan suitable for your project F7 F9 6+6 750 x 300 3 x Ø300 1280 2190 2100
612MCOSS08 16000 Combined with a fan suitable for your project F7 F9 8+8 800 x 400 4 x Ø300 1280 2920 2200
612MCOSS10 20000 Combined with a fan suitable for your project F7 F9 10+10 900 x 450 5 x Ø300 1280 3650 2350

High concentrations of oil mist, smoke, and microscopic particles generated during heavy machining processes pose serious risks to employee health and significantly reduce machine lifespan.
The MCOS Coalescence filtration system delivers long service life and high-efficiency filtration in environments with extremely dense oil particles. It is specifically engineered to provide maximum performance in CNC machines, industrial washing systems, and metalworking production lines.

Why MCOS Coalescence?

  • High Efficiency with Coalescence Technology: Advanced coalescence cartridge filters capture even the smallest micron-sized oil droplets contained in oil mist, achieving up to 99% filtration efficiency. Operates with low pressure loss, ensuring energy savings.
  • Modular Cassette System: The cassette-type cartridge filter design allows quick and easy maintenance and replacement, providing uninterrupted operation in high-intensity production environments.
  • Industrial-Grade Durability: Designed for heavy industrial conditions with a metal housing, chemically resistant coating, and long-life filter surface.

Technical Specifications

  • Filtration Type: Coalescence cartridge filter
  • Filtration Efficiency: Up to 99% (oil mist and smoke)
  • Housing Structure: Industrial painted steel body
  • Application Areas: CNC machining centers, industrial washing machines, oily metal cutting and machining processes

Applications

  • CNC lathes and machining centers generating high-density oil mist
  • Industrial parts washing and drying machines
  • Grinding and oil-based cutting operations
  • Metalworking production lines and manufacturing cells
  • Chemical cleaning cabins

MCOS Coalescence delivers superior performance even in systems with high particulate loads, protecting both employee health and your production equipment.

Frequently Asked Questions (FAQ)

1. What is the service life of the MCOS Coalescence system?
With regular maintenance, cartridge filters can operate at high efficiency for 6 to 12 months. Service life may vary depending on filtration load.
2. Which processes is it best suited for?
It provides optimal results in CNC machining lines, grinding, washing, and cutting systems where very dense oil mist and micro oil droplets are generated.
3. Can the MCOS system be integrated into existing machines?
Yes. Thanks to its modular structure and compatibility with various connection diameters, it can be easily integrated into existing production lines.
4. How is filter replacement performed?
Cassette-type cartridge filters can be removed and installed easily using a special locking mechanism, without requiring technical service support.
5. When should the SKY model be preferred instead of MCOS?
The SKY model is ideal for production lines with lower oil mist density
(Click to review the SKY Series).
For processes with very high particulate loads and high-volume oil mist output, MCOS is the more suitable solution.
