On-Torch Fume Extraction and High-Vacuum Welding Fume Filtration Unit with OLED Display T2/3007
The FRESHWELD T2/3007 is a mobile high-vacuum unit for on-torch fume extraction with fume-extracting MIG/MAG welding torches. It features a 1.1 kW EC brushless blower and F9 + H14 HEPA filtration. The OLED control display allows operators to monitor filter loading and motor operating hours, and adjust motor speed and post-welding run-on time.
| Weight | 34 kg |
|---|---|
| Dimensions | 624 × 303 × 610 mm |
Technical Notice
Our products are continuously enhanced to comply with technological developments, industry requirements, and current occupational health, safety, and environmental regulations. As a result, the images, technical information, and documents available on our website may vary from the latest product version. All order-specific technical details and the final scope of supply are clearly defined and provided during the quotation process.
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| Specification | Value |
|---|---|
| Blower type | EC brushless |
| Blower service life (h) | 5,000 |
| Weight (kg) | 33.35 |
| Depth (mm) | 624 |
| Width (mm) | 303 |
| Height (mm) | 610 |
| Number of filtration stages | 2 |
| Stage 1 filter area (m²) | 4.5 |
| Stage 1 filter class and type | F9 cartridge |
| Stage 2 filter area (m²) | 3 |
| Stage 2 filter class and type | H14 cassette |
| Particle separation efficiency (%) | ≥99.999 |
| Maximum fan capacity (m³/h) | 270 |
| Extraction airflow (m³/h) | 150 |
| Maximum negative pressure (Pa) | 17,000 |
| Maximum vacuum (Pa) | 22,900 |
| Motor power (kW) | 1.1 |
| Rated current (A) | ≈5 |
| Sound pressure level (dB(A)) | 80 |
| Dust collection container capacity (L) | 4 |
| Suction connection diameter (mm) | 50 |
Capture welding fumes directly at the source and manage your on-torch fume extraction system through the OLED display.

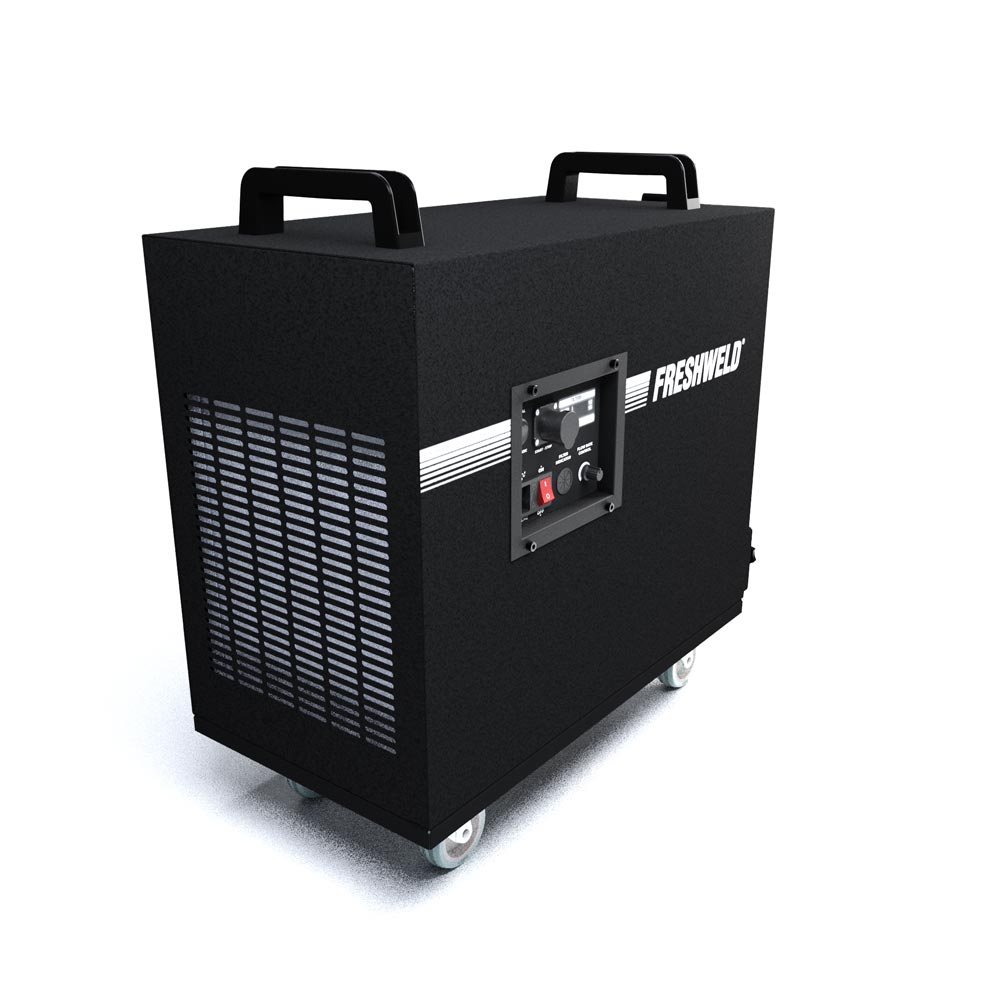

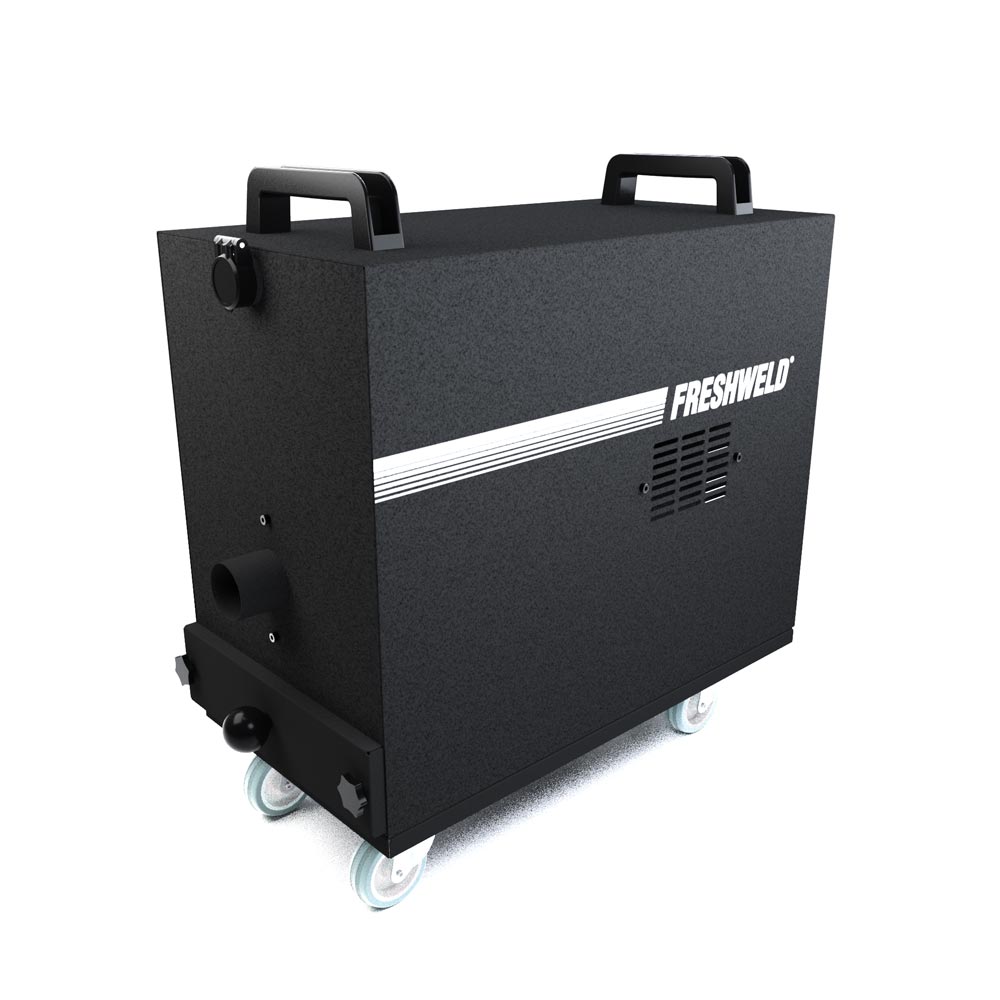

The FRESHWELD T2/3007 is a mobile high-vacuum extraction and filtration unit designed for use with fume-extracting MIG/MAG welding torches. It extracts fumes through the torch during welding, helping reduce their spread into the working environment.

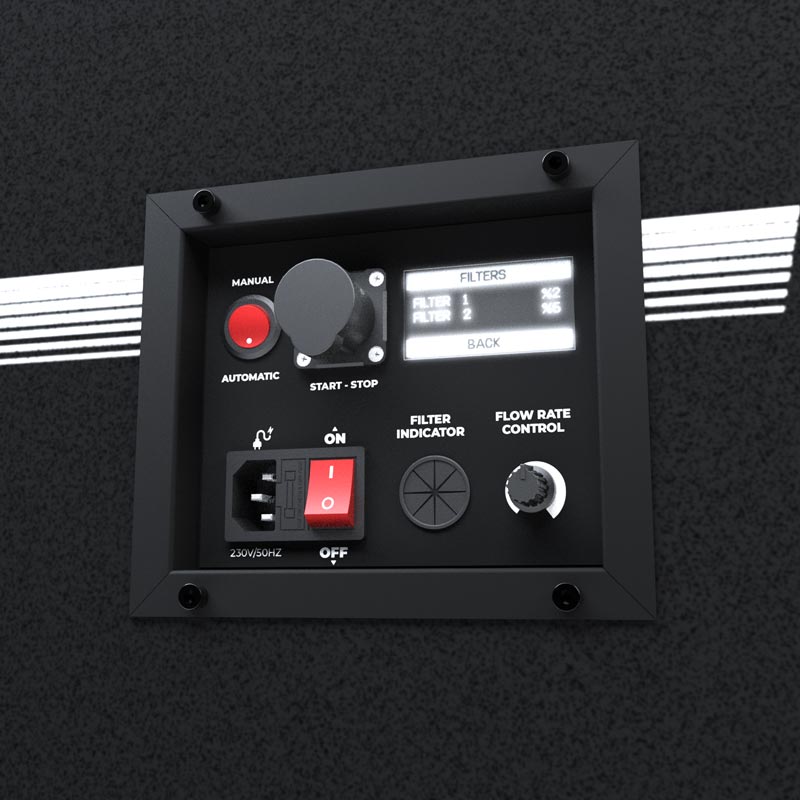

The OLED control display shows loading levels for both filters and total motor operating hours. Motor speed and post-welding run-on time can be adjusted using the rotary encoder. Operators can tailor extraction settings to their application and monitor filter condition.
A 1.1 kW EC brushless blower and a two-stage F9 + H14 HEPA filtration system capture particles from the extracted air. Automatic start/stop and adjustable post-welding run-on time synchronize extraction with welding activity. Its compact body and lockable castors allow easy movement between welding stations.
Application Areas
- MIG/MAG welding operations using fume-extracting torches.
- Metalworking and welding fabrication workshops.
- Individual welding stations in production facilities.
- Welding applications requiring adjustable extraction speed to suit operating conditions.
- Fabrication and maintenance work requiring a portable extraction solution across different work areas.
Key Technical Specifications
| Specification | T2/3007 |
|---|---|
| Blower type | EC brushless |
| Motor power | 1.1 kW |
| Specified blower service life | 5,000 hours |
| Extraction airflow | 150 m³/h |
| Maximum vacuum | 22,900 Pa |
| Filtration system | F9 cartridge + H14 HEPA cassette |
| Control interface | Monochrome OLED display and rotary encoder |
| Post-welding run-on time | 3–12 seconds, adjustable |
| Suction connection | Ø50 mm |
| Power supply | 230 V / 50 Hz |
Key Features
OLED Filter Loading Monitoring
Loading levels for both filters are displayed separately on the OLED screen. Percentage values and progress bars make it easy to monitor filter condition and maintenance requirements.
Adjustable Motor Speed
Motor speed can be adjusted through the display menu using the rotary encoder. Operators can tailor the extraction level to the requirements of the welding application.
Motor Operating Hours Monitoring
Total motor operating time is displayed on the OLED screen in hours, minutes and seconds. This information helps operators track usage and plan maintenance.
Automatic Start and Adjustable Stop Delay
Extraction starts automatically when welding begins. When welding ends, the unit continues running for a display-adjustable period of 3–12 seconds, helping extract residual fumes from the welding area.
EC Brushless Blower
The 1.1 kW EC brushless blower provides high vacuum for on-torch fume extraction applications. Its specified service life is 5,000 operating hours. The unit delivers an extraction airflow of 150 m³/h and a maximum vacuum of 22,900 Pa.
Direct On-Torch Extraction
Connects to a fume-extracting welding torch to capture fumes close to the welding point. The extraction point follows the welding area as the torch moves.
Two-Stage Filtration
An F9 cartridge filter with a 4.5 m² filter area and an H14 HEPA cassette filter with a 3 m² filter area work together to capture particles from welding fumes.

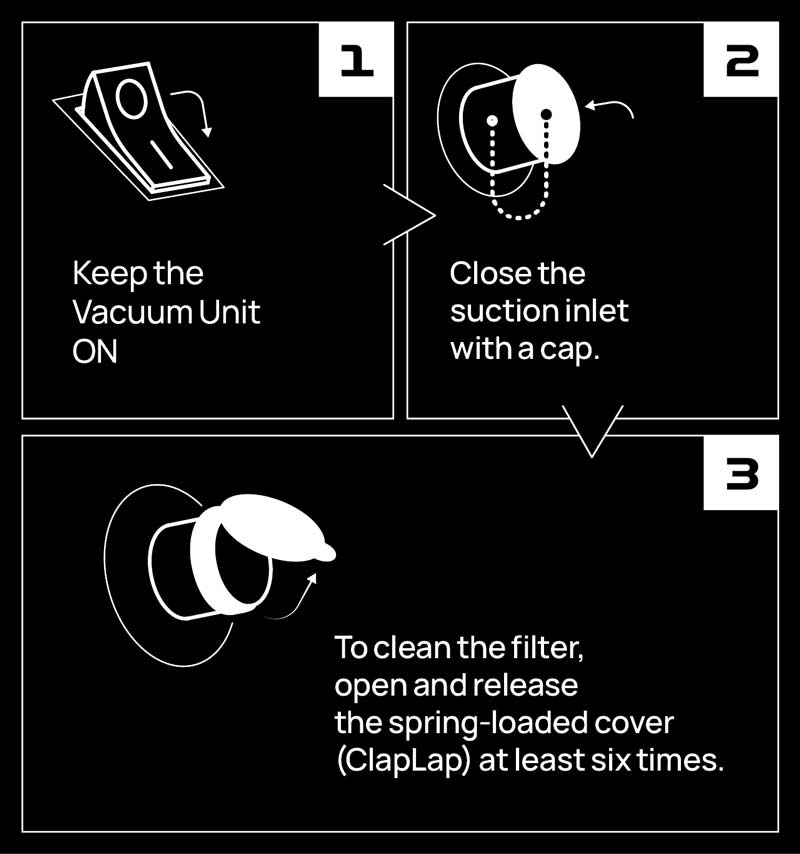

ClapLap Filter Cleaning System
With the motor running, close off the suction inlet. Then open and release the spring-loaded ClapLap cover six times to clean the filter.
Mobile and Compact Design
Lockable castors make it easy to move the unit around the workshop and secure it at the point of use. The unit is supplied with a 2 m power cable.
Contact us for connection options suited to your welding torch and operating requirements.
