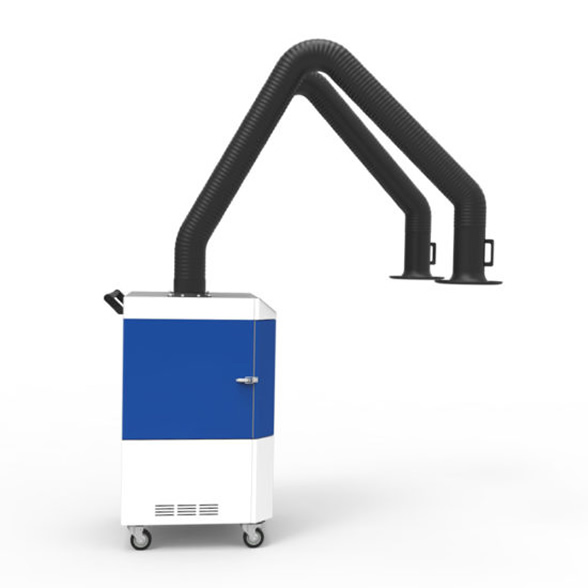

Activated Carbon Filtered Welding Fume Filtration and Extraction Unit - Double Arm M3/2200 - Image 2

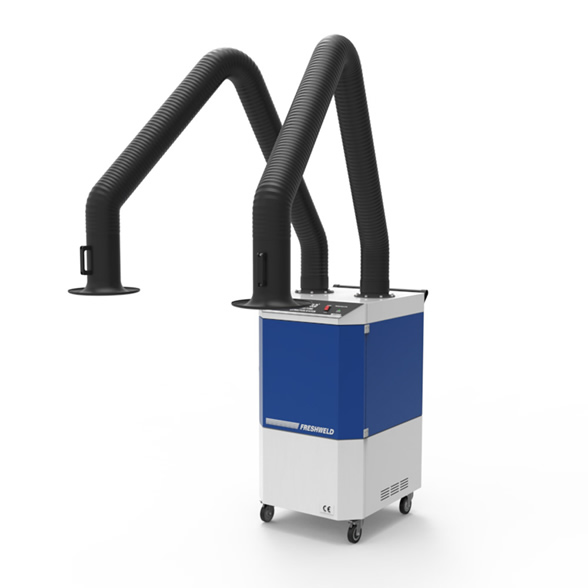

Activated Carbon Filtered Welding Fume Filtration and Extraction Unit - Double Arm M3/2200 - Image 3

MOBILE FILTRATION SOLUTIONS Fume Extraction Solutions

Activated Carbon Filtered Welding Fume Filtration and Extraction Unit – Double Arm M3/2200

Name: Double Arm - Activated Carbon - Fume Extraction M3/2200
Brand: FRESHWELD
SKU: 121M322000
Price: 2592 EUR
Availability: InStock

Designed to filter heavy fumes and odor emissions generated during welding processes. Double articulated arm Welding Fume Extraction Unit with Activated Carbon Filtration. Its mobile structure allows easy relocation and ensures clean air circulation without the need for an external exhaust system.

Double Acrobat Arm Length

Filter Options

Clear

Weight	125 kg
Dimensions	750 × 650 × 1285 mm
Double Acrobat Arm Length	Arm-less2 x 2m2 x 3m2 x 4m
Filter Options	E12 – 40m²F9 – 25m²

Local Manufacturing,<br>Global Standards

Local Manufacturing,
Global Standards

99% Filtration
Efficiency

Energy-Efficient and<br>Sustainable Design

Energy-Efficient and
Sustainable Design

Full Compliance with<br>OHS / HSE Regulations

Full Compliance with
OHS / HSE Regulations

SKU : 121M322000 Categories : MOBILE FILTRATION SOLUTIONS, Fume Extraction Solutions Tag : New and Popular Brand: FRESHWELD®

Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.

Technical Specifications Table

M3/2200	EXTRACTION ARM LENGTH	max. FAN CAPACITY @1250 Pa	MOTOR POWER	VOLUMETRIC AIRFLOW	FILTRATION STAGE				DIMENSIONS (mm)			WEIGHT
FW CODE	(m)	(m³/h)	(kW)	(m³/h)	1°	2°	3°	4°	W	L	H	(kg)
121M322000	Arm-less	1200 – 2200	1,5	1200 – 2200	G2 Mesh	G4 Coarse	F9 – 25m²	AC Filter – 12 kg	650	750	1285	125
121M322002	2 x 2	1100 – 1400	1,5	1100 – 1400	G2 Mesh	G4 Coarse	F9 – 25m²	AC Filter – 12 kg	650	750	1285	145
121M322003	2 x 3	1100 – 1400	1,5	1100 – 1400	G2 Mesh	G4 Coarse	F9 – 25m²	AC Filter – 12 kg	650	750	1285	159
121M322004	2 x 4	1100 – 1400	1,5	1100 – 1400	G2 Mesh	G4 Coarse	F9 – 25m²	AC Filter – 12 kg	650	750	1285	167
122M322000	Arm-less	1200 – 2200	1,5	1200 – 2200	G2 Mesh	G4 Coarse	E12 – 40m²	AC Filter – 12 kg	650	750	1285	125
122M322002	2 x 2	1100 – 1400	1,5	1100 – 1400	G2 Mesh	G4 Coarse	E12 – 40m²	AC Filter – 12 kg	650	750	1285	145
122M322003	2 x 3	1100 – 1400	1,5	1100 – 1400	G2 Mesh	G4 Coarse	E12 – 40m²	AC Filter – 12 kg	650	750	1285	159
122M322004	2 x 4	1100 – 1400	1,5	1100 – 1400	G2 Mesh	G4 Coarse	E12 – 40m²	AC Filter – 12 kg	650	750	1285	167

Application Areas

Mobile Double Articulated Arm Welding Fume Extraction Unit with Activated Carbon Filtration
Designed to filter fumes and airborne particulates released during welding processes
Suitable for welding of unalloyed and low-alloy steels
Ideal for low, medium, and high levels of fume and dust filtration

Features

Wheeled construction allows easy transportation to the desired workspace
Flexible arm structure enables easy access to the targeted extraction point
Fully compliant with European machinery safety regulations
Main filter contamination warning ensures maintenance is only required during filter replacement, minimizing downtime
Aluminum spark arrestor minimizes fire risks caused by sparks
In case of incorrect phase sequence or missing phase, the device automatically stops to prevent motor burnout
A warning light activates if the fan rotates in the reverse direction
3m power supply cable
