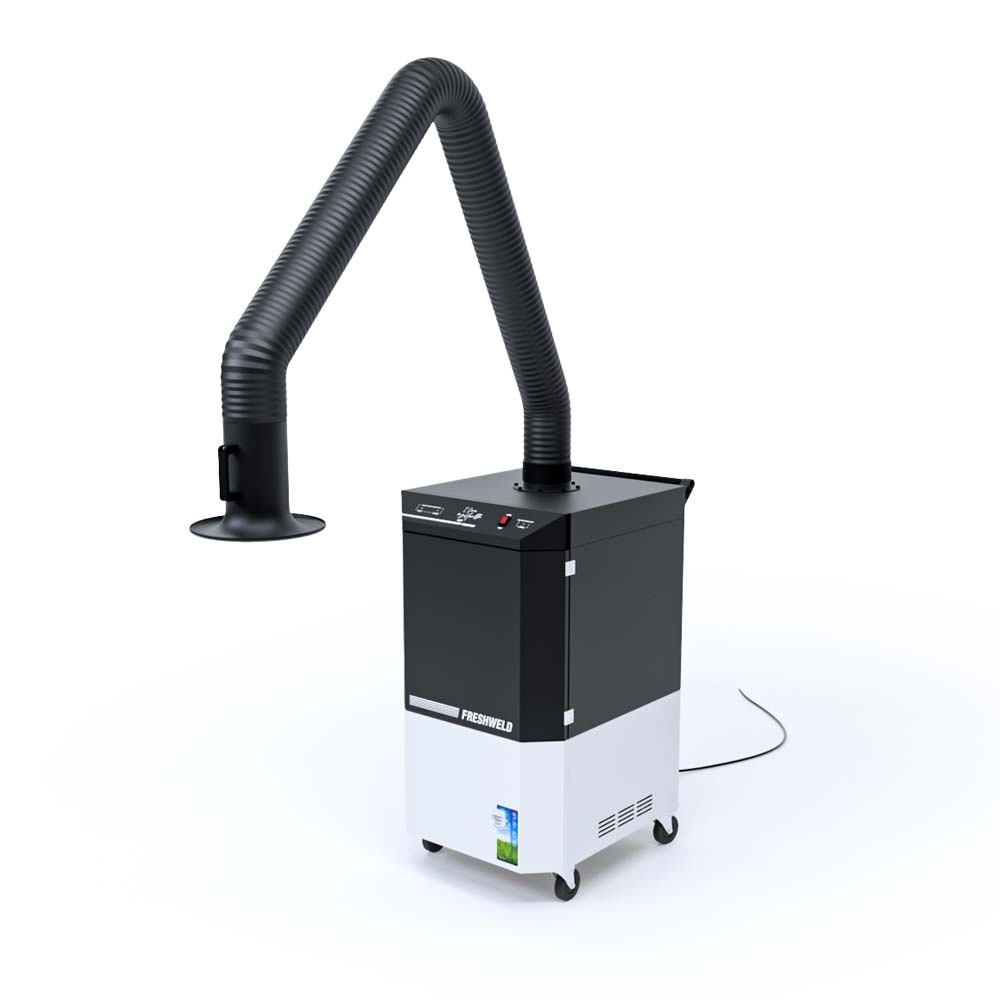

Single-Arm Mobile Welding Fume Extraction Unit with Cartridge Cleanable Filter M4/2100
The mobile welding fume extraction unit with cleanable filters protects your workspace from hazardous welding fumes, enables periodic compressed air filter cleaning, and ensures efficient waste disposal with its integrated dust drawer.
| Weight | 122 kg |
|---|---|
| Dimensions | 750 × 650 × 1285 mm |
| Single Acrobat Arm Length | Arm-less1 x 2m1 x 3m1 x 4m |
| Arm Joint Type | Arm-lessInner Joint ArmOuter Joint Arm |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| M4/2100 | EXTRACTION ARM LENGTH | max. FAN CAPACITY @1250 Pa | MOTOR POWER | VOLUMETRIC AIRFLOW | EXTRACTION ARM | FILTER INFORMATIONS | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m) | (m³/h) | (kW) | (m³/h) | Joint type | Filter type | Class – Area | Cleaning method | W | L | H | (kg) |
| 141M421000 | w/o Arm | 3000 | 1,1 | 1500 | w/o Arm | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 122 |
| 141M421IJ2 | 1 x 2 | 3000 | 1,1 | 1300 | Internal | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 132 |
| 141M421IJ3 | 1 x 3 | 3000 | 1,1 | 1300 | Internal | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 139 |
| 141M421IJ4 | 1 x 4 | 3000 | 1,1 | 1200 | Internal | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 143 |
| 141M421EJ2 | 1 x 2 | 3000 | 1,1 | 1500 | External | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 134 |
| 141M421EJ3 | 1 x 3 | 3000 | 1,1 | 1500 | External | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 141 |
| 141M421EJ4 | 1 x 4 | 3000 | 1,1 | 1400 | External | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 145 |
Applications
- Mobile welding fume extractor with a single articulated arm and F9 cartridge filter with manually cleanable advantages
- Designed to filter harmful welding fumes that may contain hazardous substances released during welding operations.
- Suitable for filtering harmful welding fumes released during the processing of unalloyed and low-alloy steels.
- Designed for medium-intensity dust and fume filtration applications
- Provides optimal suction performance and high-efficiency filtration
Features
- 2 pcs F9-class cartridge cleanable filters in the Fine Filter category, compliant with EN779 standards, effective for particles between 0.3 ~ 1 μm
- Main filter contamination warning minimizes downtime by limiting maintenance to filter replacement intervals
- Filters can be cleaned with compressed air without being removed from the housing (see Filter Maintenance Guide)
- Integrated dust collection drawer enables safe and environmentally friendly dust disposal
- Patented front protective cover allows fast, practical, and easy filter cleaning, replacement, and waste emptying
- High dust retention capacity with a total filter surface area of 10 + 10 = 20 m² (*)
- Internally jointed articulated extraction arm available up to a maximum length of 4 meters
- Easy mobility to desired locations thanks to swivel caster design
- Lockable wheels ensure operational stability
- Polyamide-rimmed rubber wheels provide quiet and smooth movement
- 3 m power supply cable
