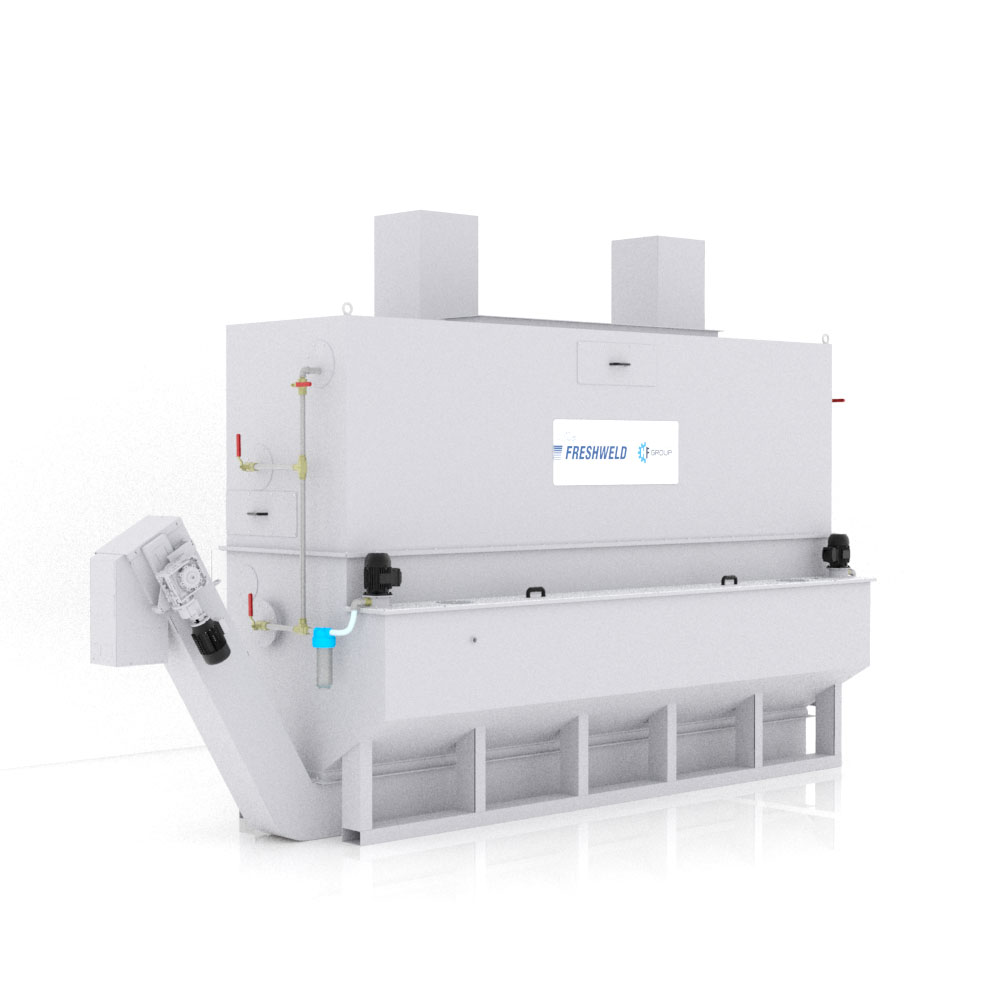

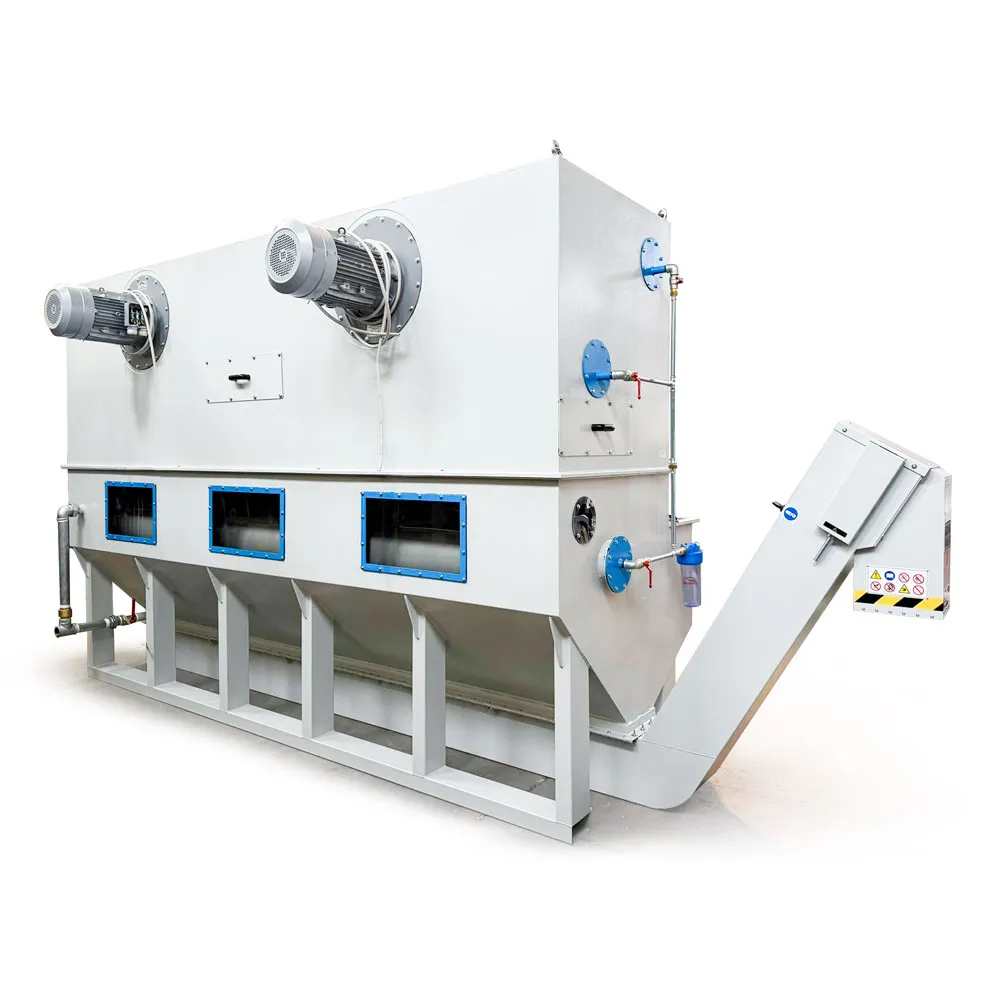

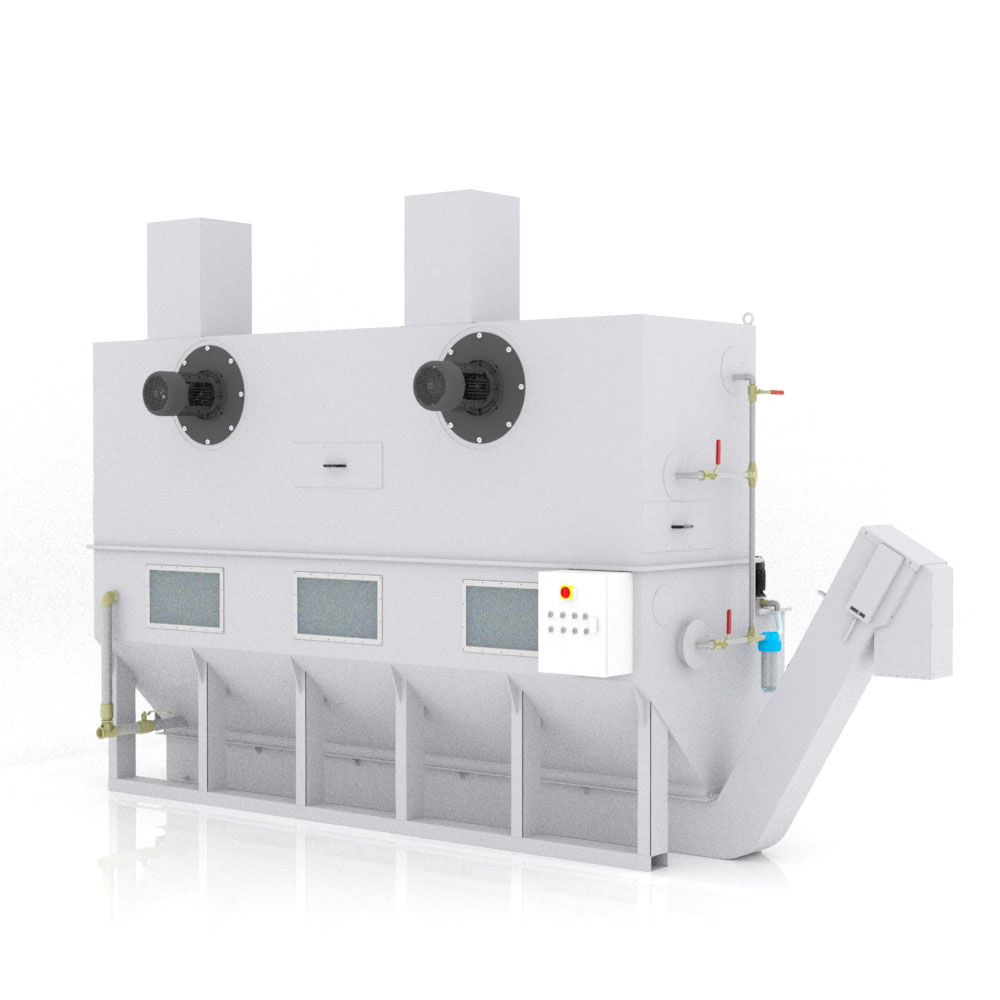

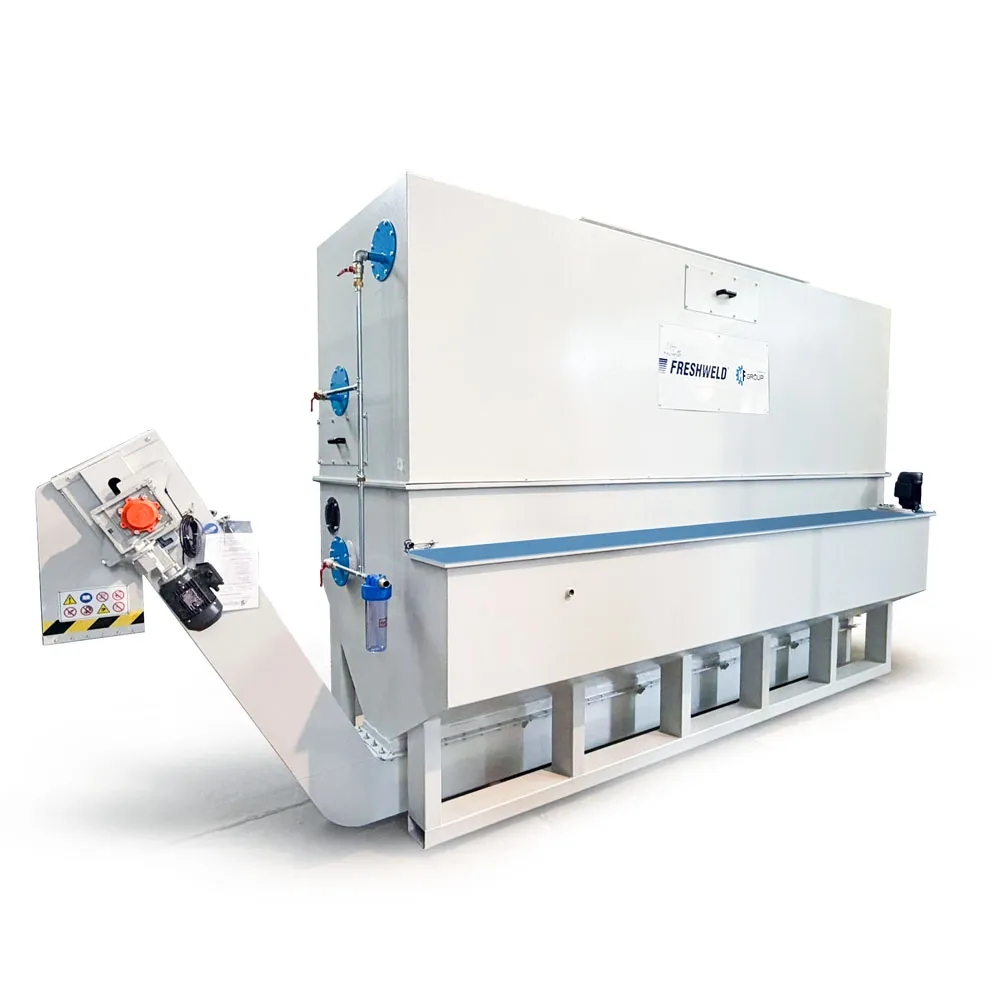

Hydrodynamic Dust Collection, Dust Suppression and Dirty Air Scrubbing (Wet Scrubber) Filter System with Sludge Scraper – IDRODUST Compact VD

Idrodust Compact D is a compact dirty air scrubbing system developed for industrial dust, vapor and particle removal, operating with water-based hydrodynamic dust collection filtration technology. By mixing contaminated air with water at a micro level, it provides highly efficient filtration while offering a safe, efficient and low-maintenance solution. Thanks to the integrated sludge scraper / sludge removal system, sediments accumulated at the bottom of the tank are automatically removed, supporting continuous and reliable system operation.

Product Description

Idrodust Compact D is a high-performance wet scrubber system designed for the removal of dust, fumes and similar contaminants generated in industrial processes. Thanks to its hydrodynamic operating principle, the extracted contaminated air is brought into controlled contact with water, allowing particles to be effectively removed from the air stream.

With its compact structure, the system can be easily positioned in limited spaces while delivering high operational efficiency. At the same time, its low maintenance requirement contributes to uninterrupted plant operation. Providing a safe filtration alternative in applications where fire and explosion risks are critical makes the system a powerful solution for many industrial sectors. The sludge scraper / sludge removal mechanism automatically collects and discharges accumulated waste at the bottom of the tank, simplifying maintenance processes and helping prevent unplanned downtime.

Working Principle

1. Pre-Filtration Stage

The extracted contaminated air first passes through a pre-chamber equipped with spray nozzles. In this section, large and heavy particles are separated and settle at the bottom of the tank. This improves the efficiency of the following filtration stages.

2. Venturi Micro Filtration

In the next stage, the air is exposed to high-speed turbulence within the Venturi throat. In this area, intensive micro-mixing with water is created, enabling the capture of fine particles. The second nozzle line further enhances the filtration performance.

3. Droplet Separator and Clean Air Outlet

At the end of the filtration process, the air passes through a droplet separator unit. This section separates water droplets carried within the airflow. As a result, the cleaned air is safely directed to the outlet. The integrated cleaning system also simplifies maintenance operations.

4. Automatic Sediment Discharge

Sludge and sediments accumulated inside the system are automatically collected from the bottom of the tank through the integrated sludge scraper / sludge removal mechanism and directed to the discharge point. This structure allows the system to operate efficiently for longer periods and reduces the need for manual cleaning.

Key Advantages

• High-efficiency hydrodynamic dust collection filtration performance
• Zero fire and explosion risk
• Compact and innovative design
• Low maintenance requirements
• Fast installation and commissioning
• Modular structure in standard configurations
• Suitable for various industrial applications
• Automatic sediment discharge with sludge scraper / sludge removal system

Application Areas

Idrodust Compact D is suitable for controlling dust and particles generated in different manufacturing processes. It provides effective results especially in the following applications:

• Satin surface finishing processes
• Polishing applications
• Dry machining operations
• Plastic processing processes
• Food processing applications
• Dust particles generated in spark-producing processes

Optional Accessories

• Silencer
• Level switch
• Electrical control panel with start & stop function
• Heater
• Sludge scraper / sludge removal system

Automatic Sediment Management

Sediments and sludge accumulated inside the system are automatically collected by the sludge scraper / sludge removal structure located at the bottom of the tank and transported to the discharge point. This reduces machine downtime, ensures operational continuity and allows maintenance processes to be managed more efficiently.

Why Idrodust Compact D?

Idrodust Compact D provides a powerful dust collection and air purification solution for modern industrial facilities with its efficient filtration performance, compact body design, safe operating characteristics, automatic sediment discharge capability and adaptable design for different processes. It offers long-term advantages for businesses in terms of both operational safety and process efficiency.
