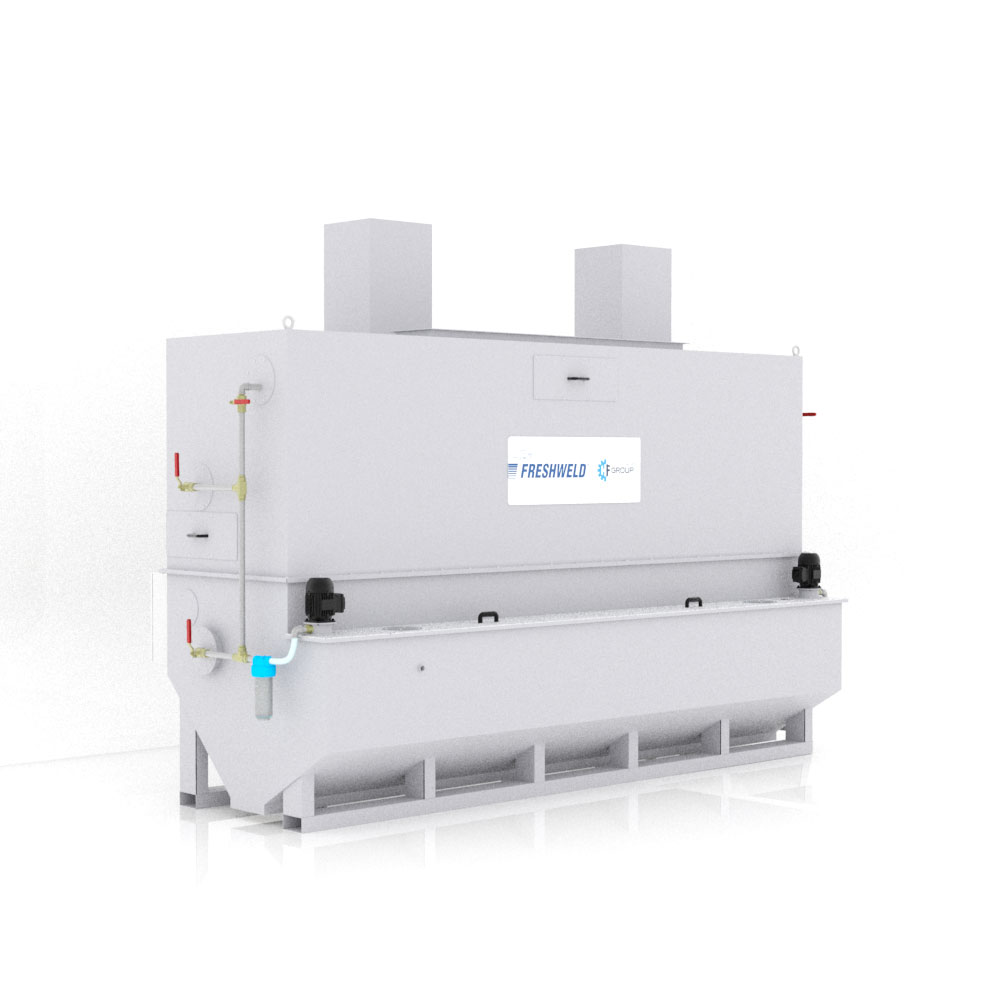

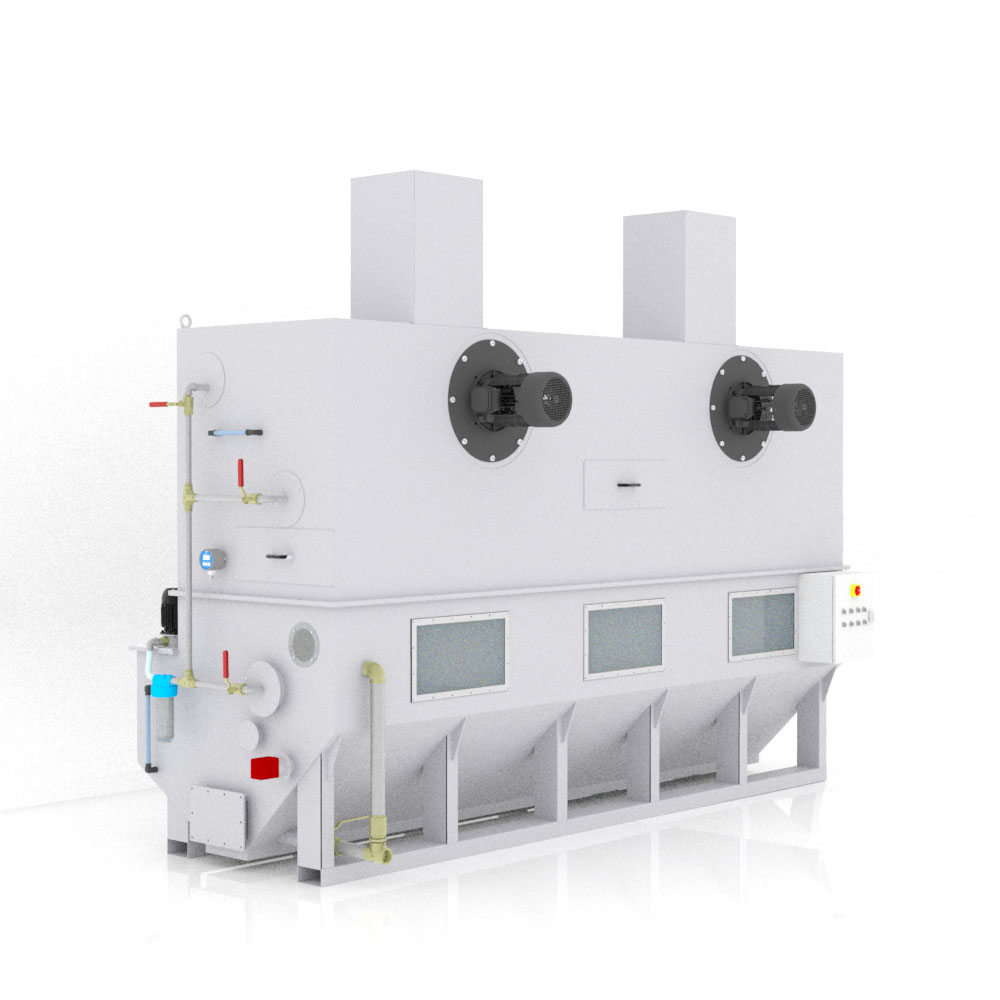

Hydrodynamic Dust Collection, Dust Suppression and Dirty Air Scrubbing (Wet Scrubber) Filter System – IDRODUST Compact V

Idrodust Compact is a compact dirty air scrubbing system developed for industrial dust, vapor and particle removal, operating with water-based hydrodynamic dust collection filtration technology. By mixing contaminated air with water at a micro level, it provides highly efficient filtration while offering a safe, efficient and low-maintenance solution.

Product Description

Idrodust Compact is a high-performance wet scrubber system designed for the removal of dust, fumes and similar contaminants generated in industrial processes. Thanks to its hydrodynamic operating principle, the extracted contaminated air is brought into controlled contact with water, allowing particles to be effectively removed from the air stream.

With its compact structure, the system can be easily installed in limited spaces while delivering high operational efficiency. At the same time, its low maintenance requirement contributes to uninterrupted plant operation. Providing a safe filtration alternative in applications where fire and explosion risks are critical makes the system a strong solution for many industrial sectors.

Working Principle

1. Pre-Filtration Stage

The extracted contaminated air first passes through a pre-chamber equipped with spray nozzles. In this section, large and heavy particles are separated and settle at the bottom of the tank. This process improves the efficiency of the subsequent filtration stages.

2. Venturi Micro Filtration

In the next stage, the air is exposed to high-speed turbulence within the Venturi throat. In this zone, an intensive micro-mixing with water is created, enabling the capture of fine particles. The second nozzle line further enhances the filtration performance.

3. Droplet Separator and Clean Air Outlet

At the end of the filtration process, the air passes through a droplet separator unit. This section separates water droplets carried within the airflow. As a result, the cleaned air is safely directed to the outlet. The integrated cleaning system also simplifies maintenance operations.

Key Advantages

• High-efficiency hydrodynamic dust collection filtration performance
• Zero fire and explosion risk
• Compact and innovative design
• Low maintenance requirements
• Fast installation and commissioning
• Modular structure in standard configurations
• Suitable for various industrial applications

Application Areas

Idrodust Compact is suitable for controlling dust and particles generated in different manufacturing processes. It provides effective results especially in the following applications:

• Satin surface finishing processes
• Polishing applications
• Dry machining operations
• Plastic processing processes
• Food processing applications
• Dust particles generated in spark-producing processes

Optional Accessories

• Silencer
• Level switch
• Electrical control panel with start & stop function
• Heater
• Sludge scraper

Automatic Sediment Management

Sediment and sludge accumulated inside the system are automatically collected by the scraper mechanism located at the bottom of the tank and transported to the discharge point. This reduces machine downtime, maintains operational continuity and enables more controlled maintenance processes.

Why Idrodust Compact?

Idrodust Compact provides a powerful dust collection and air purification solution for modern industrial facilities with its efficient filtration performance, compact body design, safe operating characteristics and adaptable design for different processes. It offers long-term advantages for businesses in terms of both operational safety and process efficiency.
