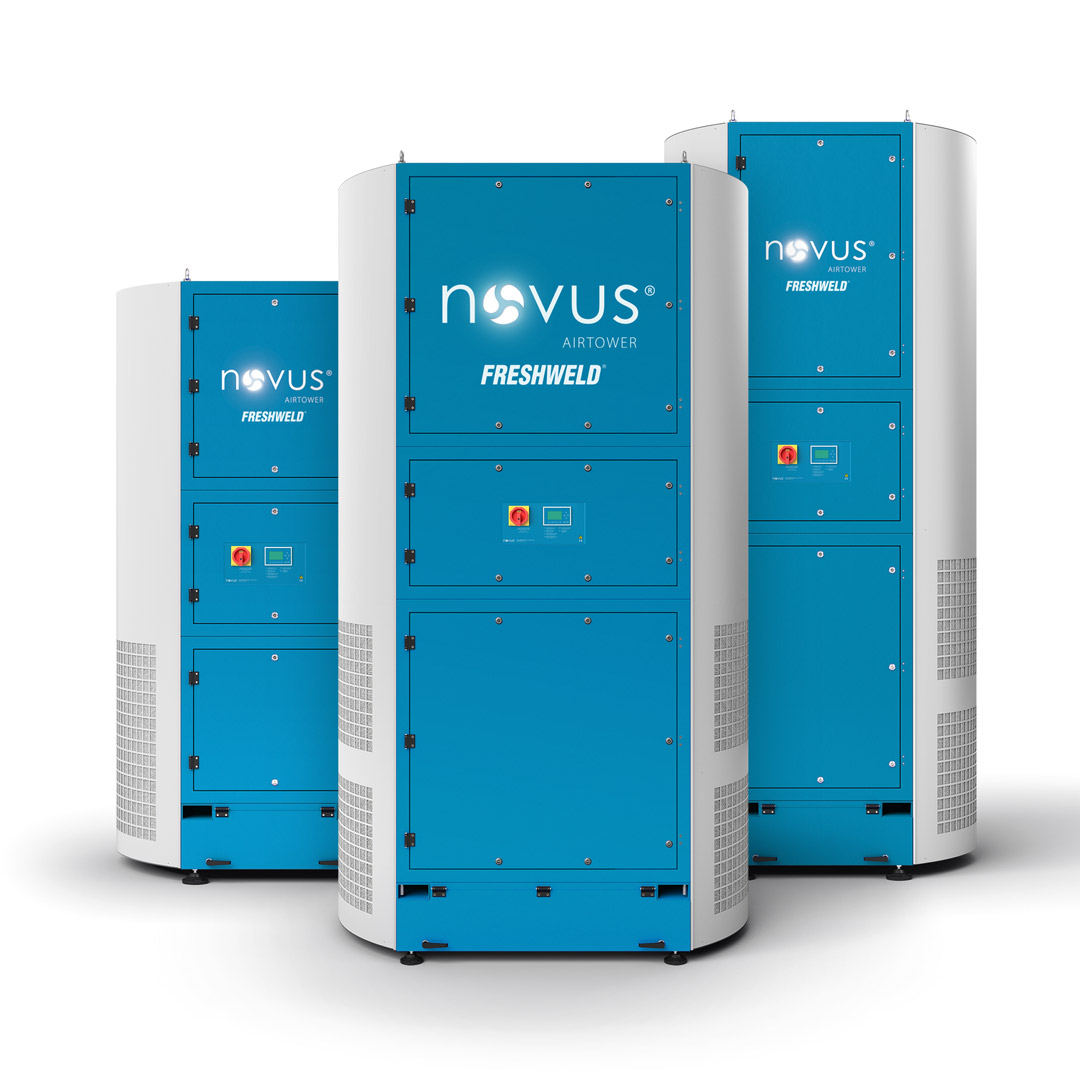

High-Volume Industrial Welding Fume, Dust and Particulate Filtration Tower – NOVUS F
NOVUS F Series Central Industrial Welding Fume Filtration Tower systems are compact, high-capacity industrial solutions engineered for high-efficiency welding fume, fine dust, and hazardous particulate filtration. Featuring a flexible duct design and automatic filter cleaning system, they ensure easy maintenance and are ideal for large-scale areas requiring multi-point extraction.
| Weight | 990 kg |
|---|---|
| Dimensions | 2066 × 1756 × 3643 mm |
| Airflow m³/h | 5000m³10000m³15000m³20000m³ |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| NOVUS F | AIRFLOW | MOTOR POWER | FILTRATION STAGES | TOTAL FILTRATION AREA | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m³/h) | (kW) | 1° | 2° | 3° | W | L | H | (kg) | |
| 711NVSFT05 | 5000 | 5,5 | 4 x M6 – 20m² | 1 x F9 – 39m² | 3 x G4 – 4m² | 131m² | 1619 | 1675 | 2885 | 990 |
| 711NVSFT10 | 10000 | 7,5 | 4 x M6 – 37m² | 1 x F9 – 39m² | 6 x G4 – 8m² | 235m² | 1619 | 1675 | 3643 | 1280 |
| 711NVSFT15 | 15000 | 11 | 6 x M6 – 37m² | 1 x F9 – 65m² | 6 x G4 – 8m² | 335m² | 2066 | 1756 | 3643 | 1480 |
| 711NVSFT20 | 20000 | 15 | 6 x M6 – 37m² | 1 x F9 – 65m² | 6 x G4 – 8m² | 335m² | 2066 | 1756 | 3643 | 1590 |
Novus Welding Fume Filtration Tower is a Fully Automatic, Programmable, Plug & Play Industrial Factory Ventilation System
- Designed for production areas where large workpieces are manufactured and local extraction systems such as articulated arms cannot be used.
- Suitable for emissions generated from various technical processing operations, including welding fumes, dust particles, aerosols, and gaseous air contaminants.
Welding is rarely performed in the same position and at the same working height at all times. Therefore, for effective extraction, both technology and welding fume extraction performance must offer maximum flexibility.
The FRESHWELD NOVUS Welding Fume Filtration Tower is specifically developed for variable welding workstations, large production areas, and high-tonnage factories with intensive robotic welding operations. Operating on a “Plug & Play” principle, it requires no additional ducting, discharge, or ventilation connections and is ready for immediate use upon delivery at the desired location.
Position the unit, connect power and compressed air, and your factory ventilation system will be operational in the shortest time—observe improved air quality and workforce productivity within just one hour.
Main Application Areas
- Processes generating heavy soot and mist
- Dust and welding fume producing manufacturing operations
- Armored and/or military vehicle manufacturing facilities
- Large-scale working environments
- Facilities with intensive robotic welding systems
- Plants generating aerosol waste
- Automobile, truck, and bus manufacturing plants
- Defense industry production facilities
- Agricultural machinery manufacturing plants
- Heavy industrial machinery production facilities
- Foundry industry plants
- Iron and steel industry facilities
- Aerospace manufacturing and maintenance facilities
- Home appliance manufacturing plants
- Hardware manufacturing facilities
- High-tonnage production plants
Features
- The FRESHWELD Novus Tower Central Industrial Filtration System is suitable for working environments of all scales.
- The filtration tower operates as a standalone system and does not require additional hoods, air ducts, or chimney connections.
- It requires only an electrical connection for operation and a compressed air connection for automatic filter cleaning.
- Manufactured from advanced technology polycarbonate construction resistant to impacts, scratches, and heat.
- Capacity can be optimized from a minimum of 5,000 m³/h to a maximum of 20,000 m³/h, and can be engineered according to your specific workspace requirements (see Technical Specifications table).
Options
- Models tested and manufactured in accordance with IFA W3 standards,
- Remote controllable from a sufficient distance,
- With an integrated air quality sensor, operates only when pollution is detected and automatically shuts down once purification is complete—supporting reduced carbon footprint values,
- Efficiency package providing additional energy savings and noise reduction,
- Additional safety package against flying sparks and fire hazards,
- Activated carbon filter pads available for gas purification and odor reduction,
- Operating costs minimized thanks to nano-fiber layered filter cartridges.
Other Products That Match Your Selection
You may also like…
-
Industrial Dust Collection, Fume and Aerosol Filtration Compact Hall Ventilation – Novus Compact F
This product has multiple variants. The options may be chosen on the product page -
High-Volume Welding Fume Filtration Tower IFA W3 Certified NOVUS Central Industrial System
This product has multiple variants. The options may be chosen on the product page -
Industrial Dust Collection System with Cartridge Filter for Central Filtration – PC TVXL
This product has multiple variants. The options may be chosen on the product page -

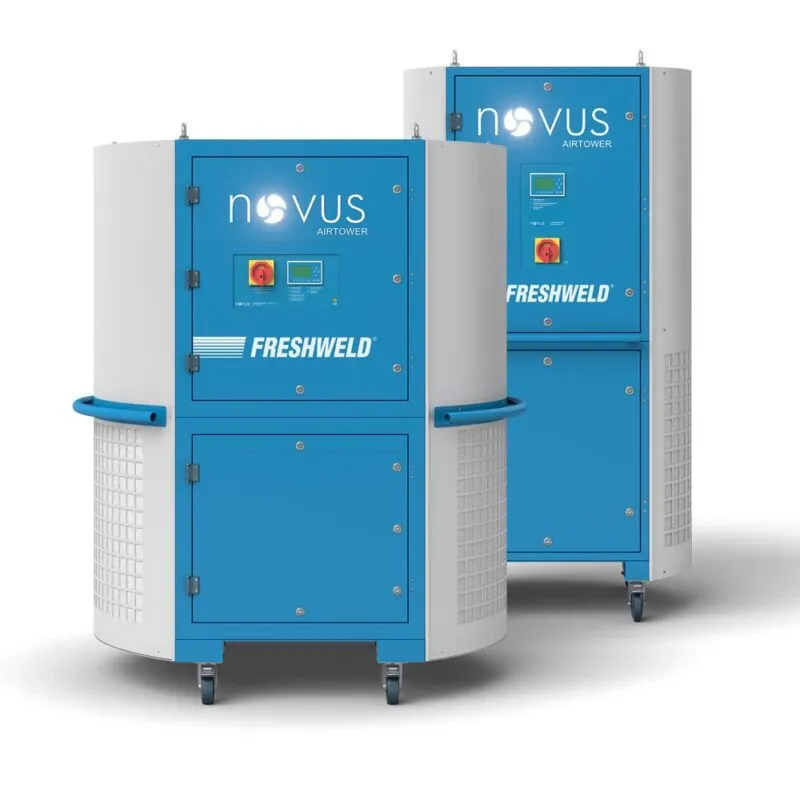

High-Volume Mobile Welding Fume Filtration Tower for Small Spaces NOVUS GO F
