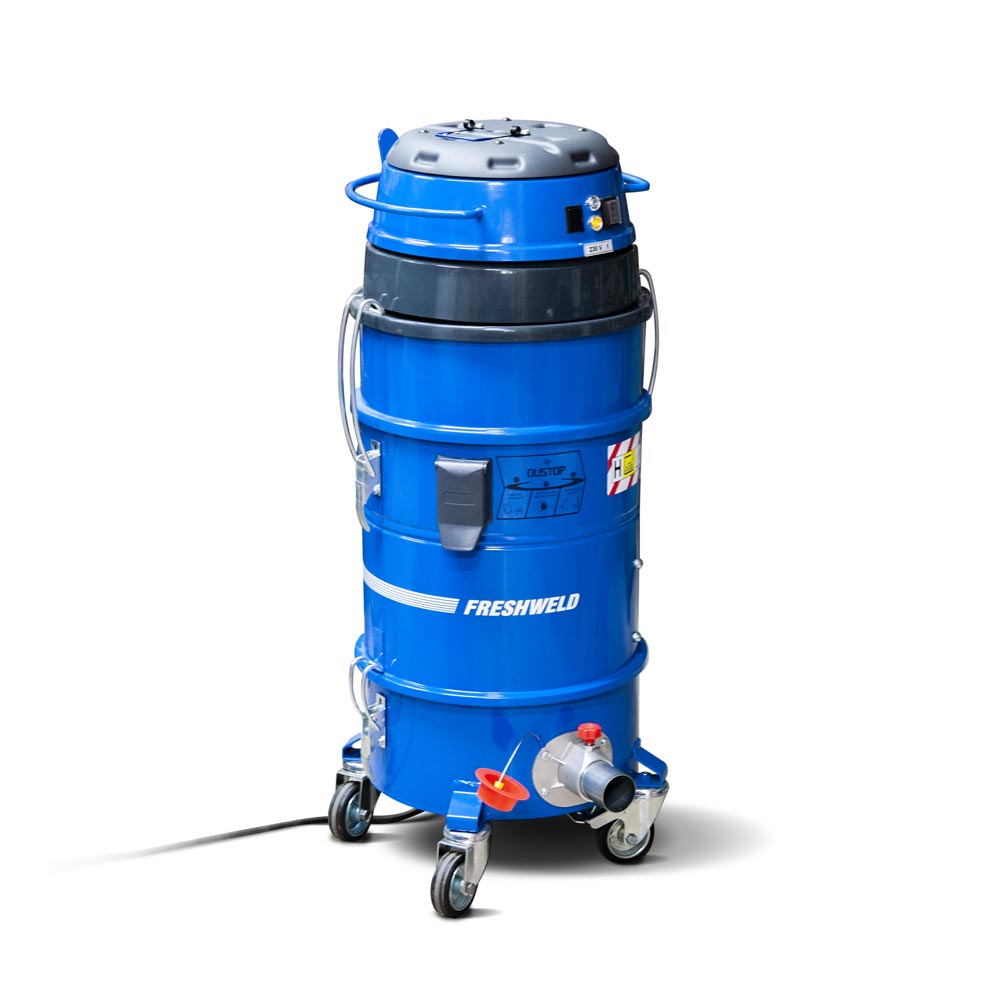

Mobile Fume Extraction Vacuum for MIG MAG On-Torch Fume Extracting – FUMEVAC Welding Fume Extraction and Filtration Unit

FUMEVAC is a compact and mobile industrial vacuum designed for source-capture extraction of fumes and gases generated during MIG-MAG On-Torch Fume Extracting. Its automatic start/stop system activates with the fume-extracting welding torch, eliminating the need for operator control. The secondary vacuum mode allows general cleaning use. Optional HEPA H14 and Activated Carbon Filters enhance overall performance.

Weight 25 kg
Dimensions 560 × 400 × 860 mm
Motor Type

BY-PASS Motor – 1.1kWBY-PASS Motor – 2 x 1.1kWBRUSHLESS Motor – 1.8kW
3rd Filter Stage

Standard FiltersH14 FilterActivated Carbon Filter
4th Filter Stage

Standard FiltersActivated Carbon Filter
Local Manufacturing,<br>Global Standards

Local Manufacturing,
Global Standards

99% Filtration<br>Efficiency

99% Filtration
Efficiency

Energy-Efficient and<br>Sustainable Design

Energy-Efficient and
Sustainable Design

Full Compliance with<br>OHS / HSE Regulations

Full Compliance with
OHS / HSE Regulations

SKU : 960VAC0101 Categories : , Tag : Brand:
User Manual
Need help?

Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.

Technical Specifications Table

FUMEVAC max.
AIRFLOW		 max.
VACUUM		 MOTOR TYPE MOTOR
POWER		 INLET FILTRATION STAGES DIMENSIONS
(mm)		 WEIGHT
FW CODE (m³/h) (Pa) (kW) (Ø) – mm 1° 2° 3° 4° W L H (kg)
960VAC0101 180 24500 BY-PASS 1,1 50 G1 Mesh M – 0,75m² _ _ 400 560 860 25
960VAC0102 180 24500 BY-PASS 1,1 50 G1 Mesh M – 0,75m² H14 _ 400 560 1010 30
960VAC0103 180 24500 BY-PASS 1,1 50 G1 Mesh M – 0,75m² Activated Carbon 400 560 1010 30
960VAC0104 180 24500 BY-PASS 1,1 50 G1 Mesh M – 0,75m² H14 Activated Carbon 400 560 1160 35
960VAC0121 360 24500 BY-PASS 2 x 1,1 50 G1 Mesh M – 0,75m² _ _ 400 560 860 25
960VAC0122 360 24500 BY-PASS 2 x 1,1 50 G1 Mesh M – 0,75m² H14 _ 400 560 1010 30
960VAC0123 360 24500 BY-PASS 2 x 1,1 50 G1 Mesh M – 0,75m² Activated Carbon 400 560 1010 30
960VAC0124 360 24500 BY-PASS 2 x 1,1 50 G1 Mesh M – 0,75m² H14 Activated Carbon 400 560 1160 35
960VAC0141 250 22540 BRUSHLESS 1,8 50 G1 Mesh M – 0,75m² _ _ 400 560 860 25
960VAC0142 250 22540 BRUSHLESS 1,8 50 G1 Mesh M – 0,75m² H14 _ 400 560 1010 30
960VAC0143 250 22540 BRUSHLESS 1,8 50 G1 Mesh M – 0,75m² Activated Carbon 400 560 1010 30
960VAC0144 250 22540 BRUSHLESS 1,8 50 G1 Mesh M – 0,75m² H14 Activated Carbon 400 560 1160 35

Specifically engineered for On-Torch Fume Extracting Welding Torches, the FUMEVAC On-Torch Fume Extraction Unit is fully compatible with leading industry brands such as Abicor Binzel, Merkle, ESAB, Lincoln Electric, Fronius, and Trafimet. It provides a clean and safe working environment in welding workshops, protects operator health, and increases productivity through efficient source-capture welding fume extraction.

Applications

Welding Workshops

  • MIG-MAG Welding Operations: Extraction of fumes and gases generated during gas-shielded welding
  • Metal Fabrication Workshops: Removal of hazardous fumes produced after welding processes
  • Woodworking Facilities: Suitable for combined metal welding activities in woodworking environments
  • Industrial Manufacturing Plants: Ensures operator protection during series production welding

Special Applications

  • Localized Extraction: Direct fume capture at the welding point
  • Mobile Operation: Easily transportable across different work zones
  • Dual-Function: Works both as a fume extractor and a general cleaning vacuum
  • Automatic Operation: Auto start/stop synchronized with the welding torch

Health & Safety

  • Operator Health Protection: Prevents inhalation of welding fumes
  • Cleaner Work Environment: Improves air quality in the workspace
  • Long-Term Protection: Reduces occupational disease risks
  • Increased Productivity: Clean air enhances work performance

Technical Specifications

Suction Unit

  • Voltage: 230V – 50Hz (Single phase)
  • Power: 1.1 kW
  • Maximum Water Lift: 2,400 mmH2O
  • Maximum Airflow: 180 m³/hour
  • Suction Inlet: 50 mm diameter
  • Noise Level: 74 dB(A) (EN ISO 3744)

Filtration System

  • Primary Filter: Cartridge filter system
  • Filter Surface Area: 7,500 cm² (245 mm diameter)
  • Filter Material: Polyester M (IEC 60335-2-69)
  • Filtration Efficiency: H14 – 99.995%
  • Spark Protection: Non-sparking pre-filter

Motor & Structure

  • Motor Type: Carbon-brush by-pass motor
  • Motor Quantity: 1 or 2 units (independent switches)
  • Body Material: Painted steel construction
  • Sound Insulation: Noise-absorbing insulated metal head

Collection System

  • Dust Capacity: 13 liters
  • Collection Method: Quick-release container
  • Container Material: Steel structure
  • Disposal: Fast release system

Advanced Cleaning System

  • Dustop System: Integrated reverse-airflow filter cleaning
  • Automatic Cleaning: Filter cleaning activated by closing the suction nozzle
  • Safe Cleaning: Prevents dust dispersion
  • Easy Maintenance: Quick and simple filter replacement

Physical Specifications

  • Dimensions: 40 x 56 x 86 cm (H x W x D)
  • Weight: 25 kg
  • Portability: Compact and portable design
  • Mobility: Wheeled structure for easy transport

On-Torch Fume Extracting Product Features

Automatic Operation System

  • Torch Synchronization: Auto start/stop with welding torch activation
  • Hands-Free Control: No operator intervention required
  • Energy-Efficient Operation: Runs only during welding

Dual-Function Use

  • Primary Function: Welding fume extraction
  • Secondary Function: General-purpose vacuum cleaning
  • Flexible Usage: Adaptable to diverse requirements

Optional Accessories

  • HEPA Absolute Filter: High-efficiency H14-grade filtration
  • Activated Carbon Filter: Specialized odor and gas absorption
  • Extraction Arm: Optional arm for localized fume capture

Safety Features

  • Spark Protection: Non-sparking pre-filter system
  • Noise Reduction: Low operational sound level
  • Durable Construction: Designed for industrial environments
