Static Oil Mist Filter – Fanless Coalescence-Based Emulsified Oil Mist Treatment Unit for Centralized Systems – MIST Compact S Series

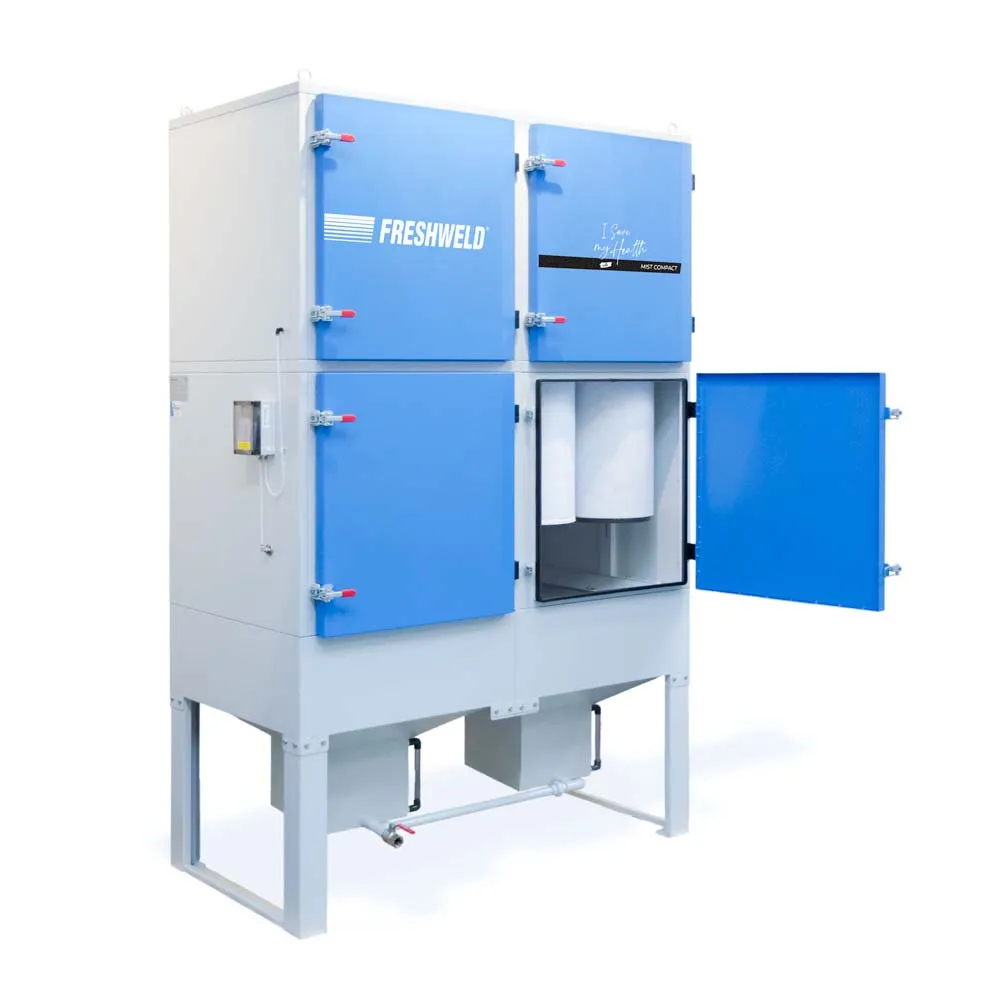

MIST COMPACT™ is a static, coalescence-based oil mist filter designed for centralized systems. Thanks to its pleated fiberglass cartridges and external polypropylene membrane, it efficiently treats emulsified oil mist to deliver clean air. It is used in CNC machines, lathes, clamping, drilling, tapping, threading, cutting, and general mechanical machining operations where emulsified cutting oils are present.
| Weight | - kg |
|---|---|
| Dimensions | 900 × 850 × 2260 mm |
| Airflow (m³/h) | 3200 m³/h6400 m³/h9600 m³/h12800 m³/h16000 m³/h |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| MIST COMPACT S | AIRFLOW | SURFACE AREA | INTEGRATED | CONNECTIONS (mm) | DIMENSIONS (mm) | |||
|---|---|---|---|---|---|---|---|---|
| FW CODE | (m³/h) | (m²) | NO FAN * | INLET | OUTLET | W | L | H |
| 622MCTV104 | 3200 | 84 | Combined with a fan suitable for your project | Ø300 | Ø300 | 900 | 850 | 2260 |
| 622MCTV208 | 6400 | 168 | Combined with a fan suitable for your project | 2 x Ø300 | 2 x Ø300 | 900 | 1700 | 2260 |
| 622MCTV312 | 9600 | 252 | Combined with a fan suitable for your project | 3 x Ø300 | 3 x Ø300 | 900 | 2550 | 2260 |
| 622MCTV416 | 12800 | 336 | Combined with a fan suitable for your project | 4 x Ø300 | 4 x Ø300 | 900 | 3400 | 2260 |
| 622MCTV520 | 16000 | 420 | Combined with a fan suitable for your project | 5 x Ø300 | 5 x Ø300 | 900 | 4250 | 2260 |
Mist Compact – Compact and Powerful Oil Mist Filtration
Designed for those seeking maximum filtration performance in limited spaces!
Mist Compact is a space-saving yet powerful solution developed to protect employee health and maintain a clean environment in machining processes with high concentrations of oil mist filter and fine particles. Despite its compact size, it delivers industrial-grade performance.
Why Mist Compact?
- Compact Design: Optimized for confined spaces, allowing installation inside CNC enclosures or directly on the machine.
- High Filtration Efficiency: Its multi-layer internal filter structure captures oil mist, aerosol, and micro-particles with high efficiency.
- Easy Installation and Maintenance: User-friendly filter replacement system enables fast maintenance without requiring technical service support.
- Plug-and-Play Operation: Quick commissioning via 230V power connection, with no additional equipment required.
Technical Specifications
| Specification | Value |
|---|---|
| Airflow Capacity | 1250 m³/h |
| Motor Power | 0.75 kW (Single Phase – 230V) |
| Housing Structure | Painted Steel |
| Filter Stages | Multi-stage internal filtration system |
| Operating Principle | Oil mist and fine particle filtration |
| Installation Type | Top-mounted / side-mounted (suitable for compact spaces) |
Applications
- Compact CNC machining centers
- Oil-based cutting and machining machines
- Integrated washing systems
- Enclosed chip-forming manufacturing processes
- Laboratory-scale production lines
Mist Compact ensures effective filtration even in limited spaces, enhancing workplace safety while supporting environmental compliance.
Frequently Asked Questions (FAQ)
- 1. Which machines is Mist Compact suitable for?
- It can be mounted on CNC machines with limited space, enclosed machining units, or mobile production lines.
- 2. How easy is filter replacement?
- Thanks to its user-friendly locking mechanism, filters can be replaced quickly without requiring technical expertise.
- 3. Should this model or the MCOS model be preferred?
- Mist Compact is ideal for limited spaces with moderate oil mist emission. For processes with high mist and particle loads, the MCOS model is more suitable.
- 4. How is the power supply provided?
- It operates via a standard 230V outlet. No additional infrastructure investment is required.
- 5. What is the noise level?
- Its compact motor design allows low-noise operation without compromising operator comfort.
