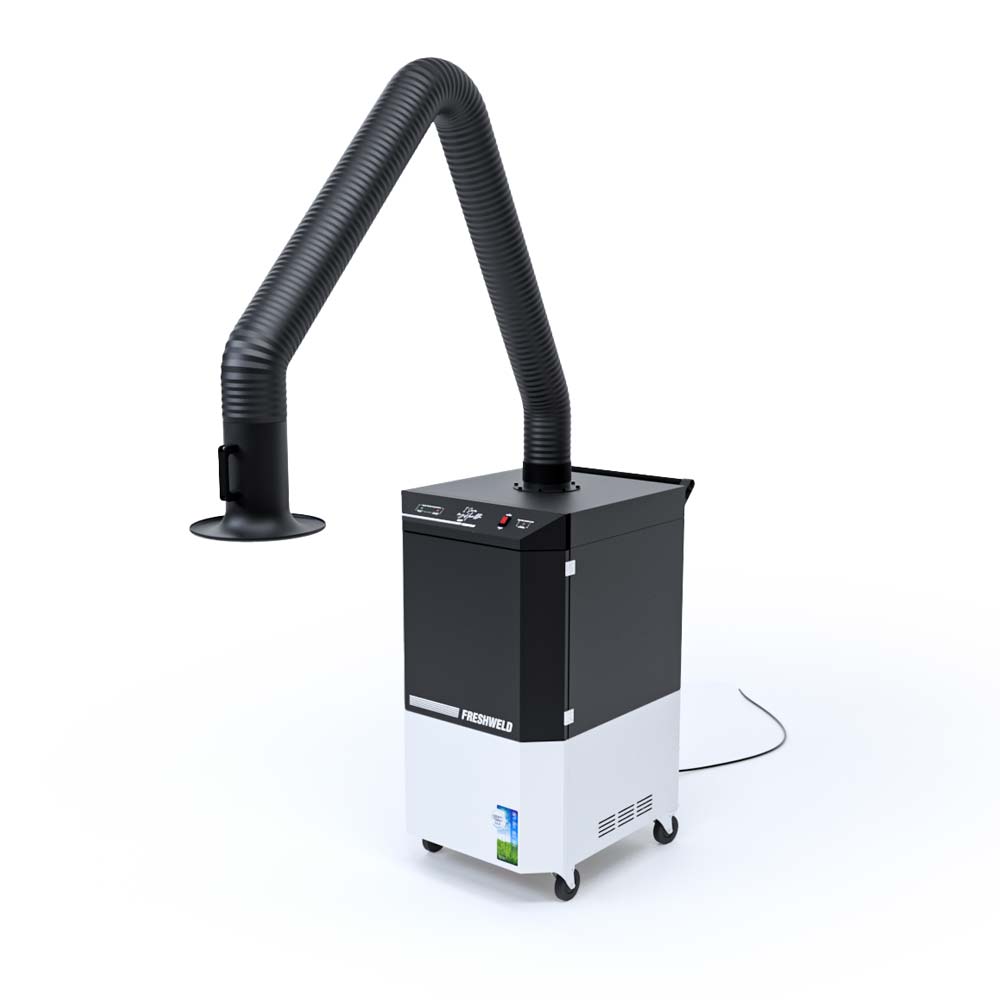

Fume and Dust Extraction Unit with Automatic Cleanable Cartridge Filter – Single Arm – M5/2100 (Jet Pulse)
The M5/2100 (Jet Pulse) single-arm welding fume extraction unit features an automatic cleanable filter system, providing effective source capture of hazardous dust and welding fumes produced during welding processes.
| Weight | 122 kg |
|---|---|
| Dimensions | 650 × 750 × 1285 mm |
| Arm Joint Type | Arm-lessInner Joint ArmOuter Joint Arm |
| Single Acrobat Arm Length | Arm-less1 x 2m1 x 3m1 x 4m |
Technical Notice
Our products are continuously enhanced to comply with technological developments, industry requirements, and current occupational health, safety, and environmental regulations. As a result, the images, technical information, and documents available on our website may vary from the latest product version. All order-specific technical details and the final scope of supply are clearly defined and provided during the quotation process.
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| M5/2100 | EXTRACTION ARM LENGTH | max. FAN CAPACITY @1250 Pa | MOTOR POWER | VOLUMETRIC AIRFLOW | EXTRACTION ARM | FILTER INFORMATIONS | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m) | (m³/h) | (kW) | (m³/h) | Joint type | Filter type | Class – Area | Cleaning method | W | L | H | (kg) |
| 151M521000 | w/o Arm | 3000 | 1,1 | 1500 | w/o Arm | Cartridge | M5 – 2×3 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 122 |
| 151M521IJ2 | 1 x 2 | 3000 | 1,1 | 1300 | Internal | Cartridge | M5 – 2×3 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 132 |
| 151M521IJ3 | 1 x 3 | 3000 | 1,1 | 1300 | Internal | Cartridge | M5 – 2×3 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 139 |
| 151M521IJ4 | 1 x 4 | 3000 | 1,1 | 1200 | Internal | Cartridge | M5 – 2×3 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 143 |
| 151M521EJ2 | 1 x 2 | 3000 | 1,1 | 1500 | External | Cartridge | M5 – 2×3 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 134 |
| 151M521EJ3 | 1 x 3 | 3000 | 1,1 | 1500 | External | Cartridge | M5 – 2×3 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 141 |
| 151M521EJ4 | 1 x 4 | 3000 | 1,1 | 1400 | External | Cartridge | M5 – 2×3 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 145 |
Applications
- Mobile welding fume extraction unit with automatic cleanable Jet-Pulse M5 cartridge filter and single articulated extraction arm
- Designed to filter harmful welding fumes that may contain hazardous substances released during welding operations.
- Suitable for filtering harmful welding fumes released during the processing of unalloyed and low-alloy steels.
- Designed for medium-intensity dust and welding fume filtration applications
- Provides optimal suction performance and high-efficiency filtration
Features
- 2 pcs M5-class cartridge filters in the Fine Filter category, compliant with EN779 standards, effective for particles between 0.3 ~ 1 μm
- Main filter contamination warning minimizes downtime by limiting maintenance to filter replacement intervals
- Thanks to the automatic Jet-Pulse system, filters can be cleaned without removing them from the housing or opening the cover (see Filter Maintenance Guide)
- The system performs automatic self-cleaning via compressed air inlet
- Integrated dust collection drawer enables safe and environmentally friendly dust disposal
- Patented front protective cover allows fast, practical, and easy filter cleaning, replacement, and waste emptying
- High dust retention capacity with a total filter surface area of 10 + 10 = 20 m² (*)
- Internally jointed articulated extraction arm option available up to a maximum length of 4 meters
- Easy mobility to desired locations thanks to swivel caster design
- Lockable wheels ensure operational stability
- Polyamide-rimmed rubber wheels provide quiet and smooth movement
- 3 m power supply cable
