Fume and Dust Extraction Unit with Automatic Cleanable Cartridge Filter – Double Arm – M5/2200 (Jet Pulse)

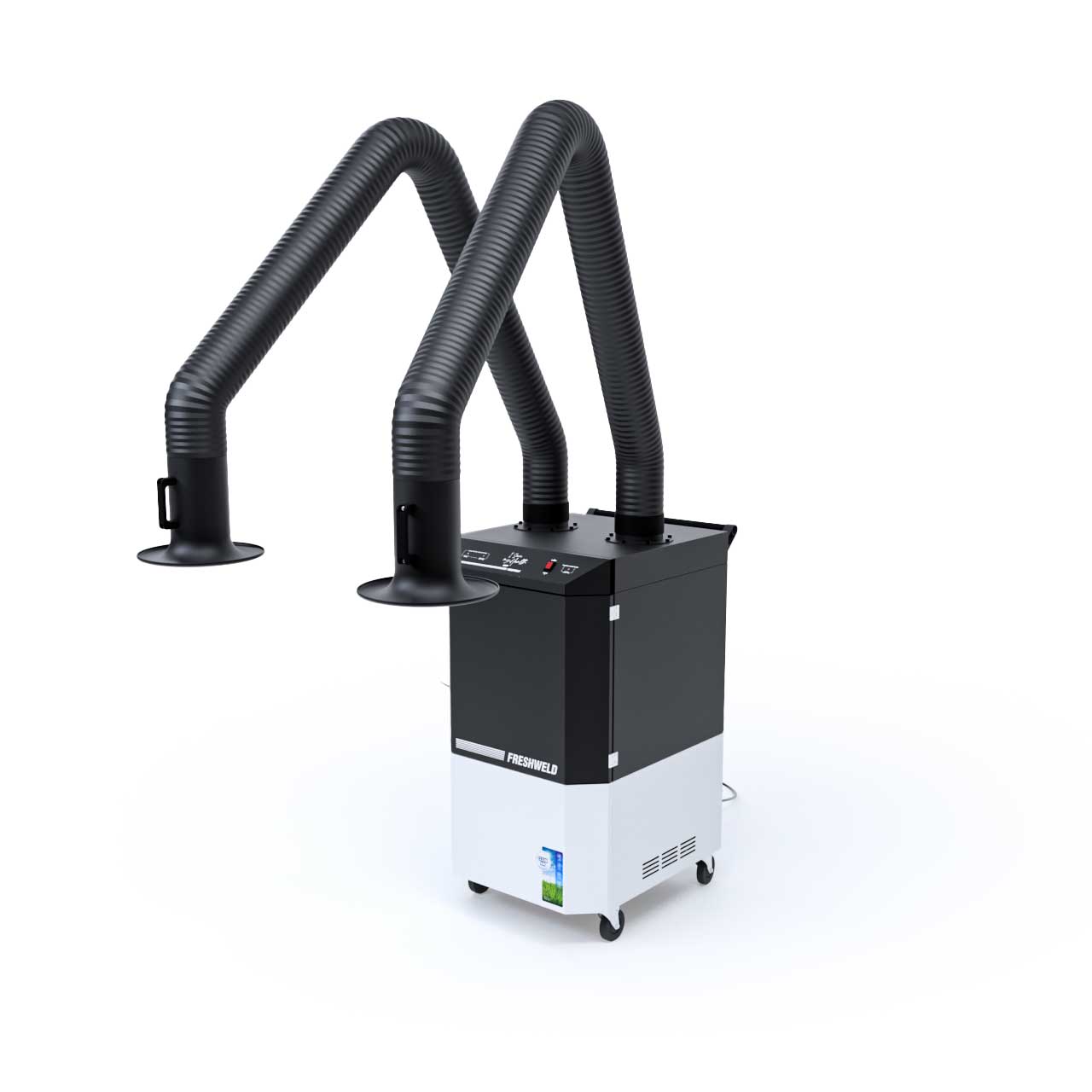

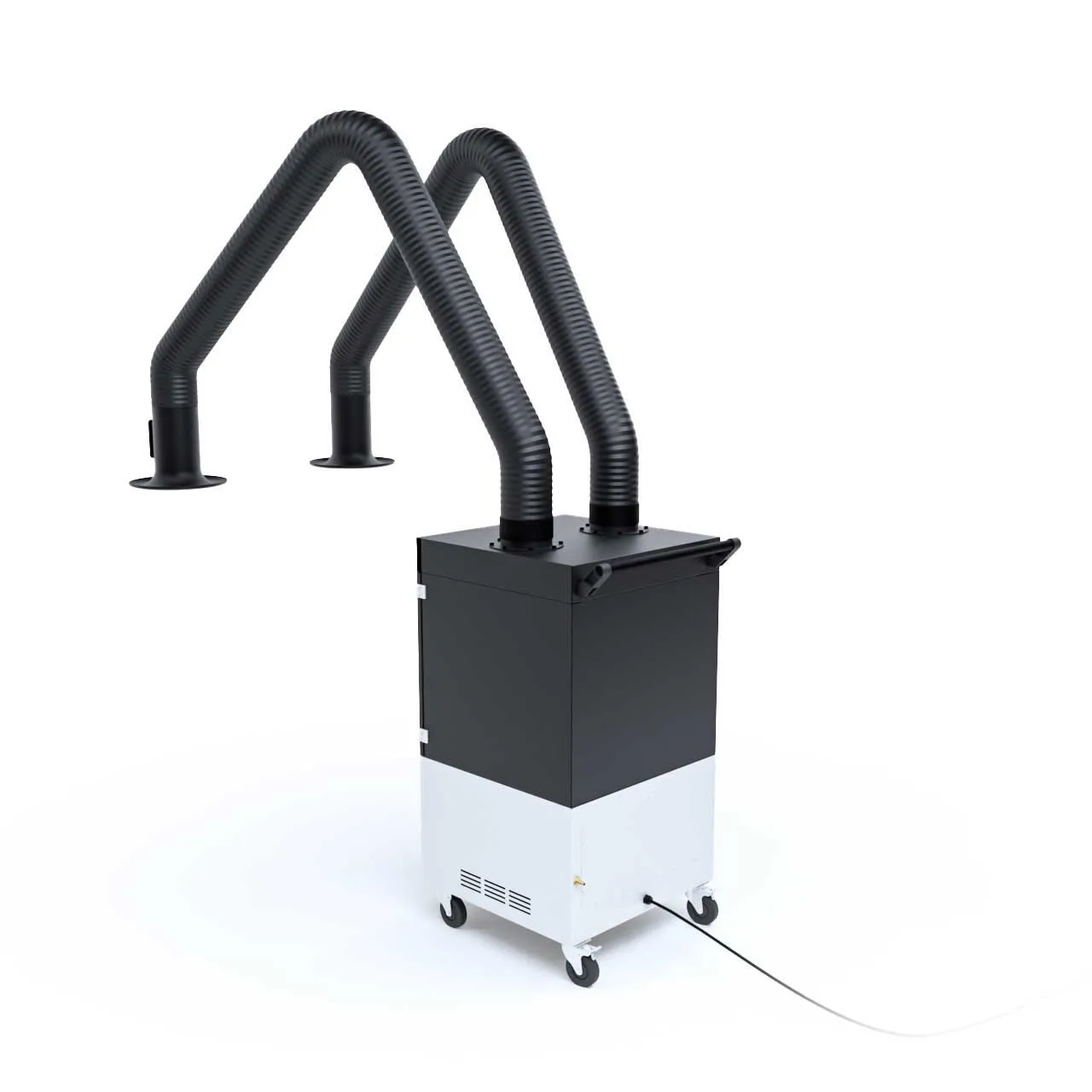

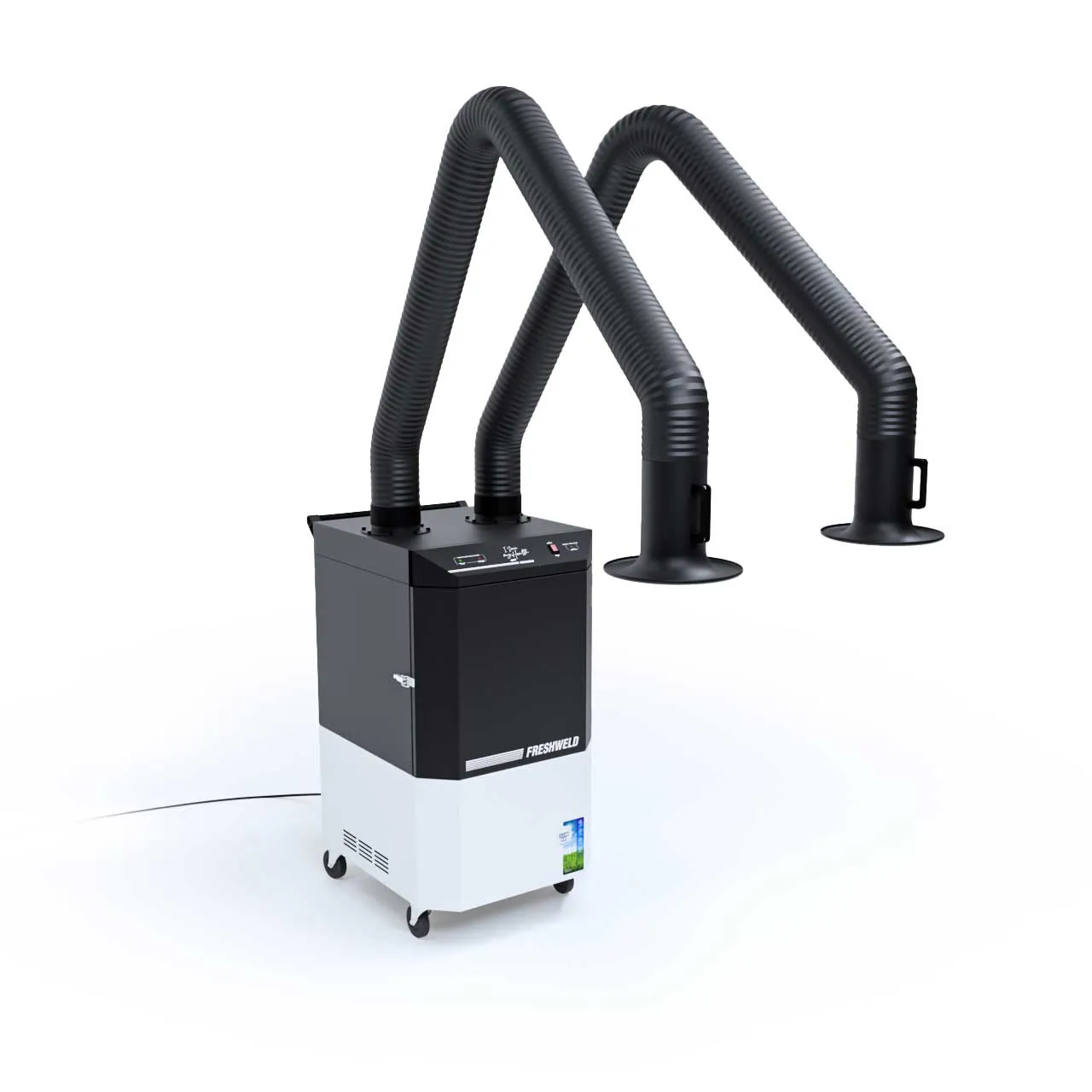

Automatic Cleanable Welding Fume Extraction Unit M5/2200 (Jet Pulse) with Dual Articulated Arms. A self-cleaning mobile welding fume extractor with Jet Pulse filtration, engineered to capture harmful welding fumes and airborne particulate matter at the source.
| Weight | 125 kg |
|---|---|
| Dimensions | 750 × 650 × 1285 mm |
| Arm Joint Type | Arm-lessInner Joint ArmOuter Joint Arm |
| Double Acrobat Arm Length | Arm-less2 x 2m2 x 3m2 x 4m |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| M5/2200 | EXTRACTION ARM LENGTH | max. FAN CAPACITY @1250 Pa | MOTOR POWER | VOLUMETRIC AIRFLOW | EXTRACTION ARM | FILTER INFORMATIONS | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m) | (m³/h) | (kW) | (m³/h) | Joint type | Filter type | Class – Area | Cleaning method | W | L | H | (kg) |
| 151M522000 | w/o Arm | 3000 | 1,1 | 1200 – 2200 | w/o Arm | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 125 |
| 151M522IJ2 | 2 x 2 | 3000 | 1,1 | 1100 – 1400 | Internal | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 145 |
| 151M522IJ3 | 2 x 3 | 3000 | 1,1 | 1100 – 1400 | Internal | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 159 |
| 151M522IJ4 | 2 x 4 | 3000 | 1,1 | 1100 – 1400 | Internal | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 167 |
| 151M522EJ2 | 2 x 2 | 3000 | 1,1 | 1200 – 2200 | External | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 125 |
| 151M522EJ3 | 2 x 3 | 3000 | 1,1 | 1100 – 1400 | External | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 145 |
| 151M522EJ4 | 2 x 4 | 3000 | 1,1 | 1100 – 1400 | External | Cartridge | F9 – 2×8 m² | Self Cleaning Jet-Pulse | 650 | 750 | 1285 | 159 |
Applications
- Mobile Fume Extraction Unit with F9 Manual Cleanable Cartridge Filter, Double Acrobatic Arm
- Designed to filter harmful welding fumes that may contain hazardous substances released during welding operations.
- Suitable for filtering harmful welding fumes released during the processing of unalloyed and low-alloy steels.
- Suitable for medium density dust and fume filtration.
- It has ideal suction and filtering power.
- It can be operated comfortably with its flexible arm structure at 2 different welding points at the same time
- Unused arm can be closed easily thanks to the flow-adjustable flapper
Features
- 2 high-efficiency F9 cartridge filters compliant with EN779 standard, designed for particles ranging from 0.3 ~ 1 μm
- Two articulated extraction arms, each 3 meters in length
- Main filter contamination indicator minimizes downtime by enabling maintenance only during filter replacement

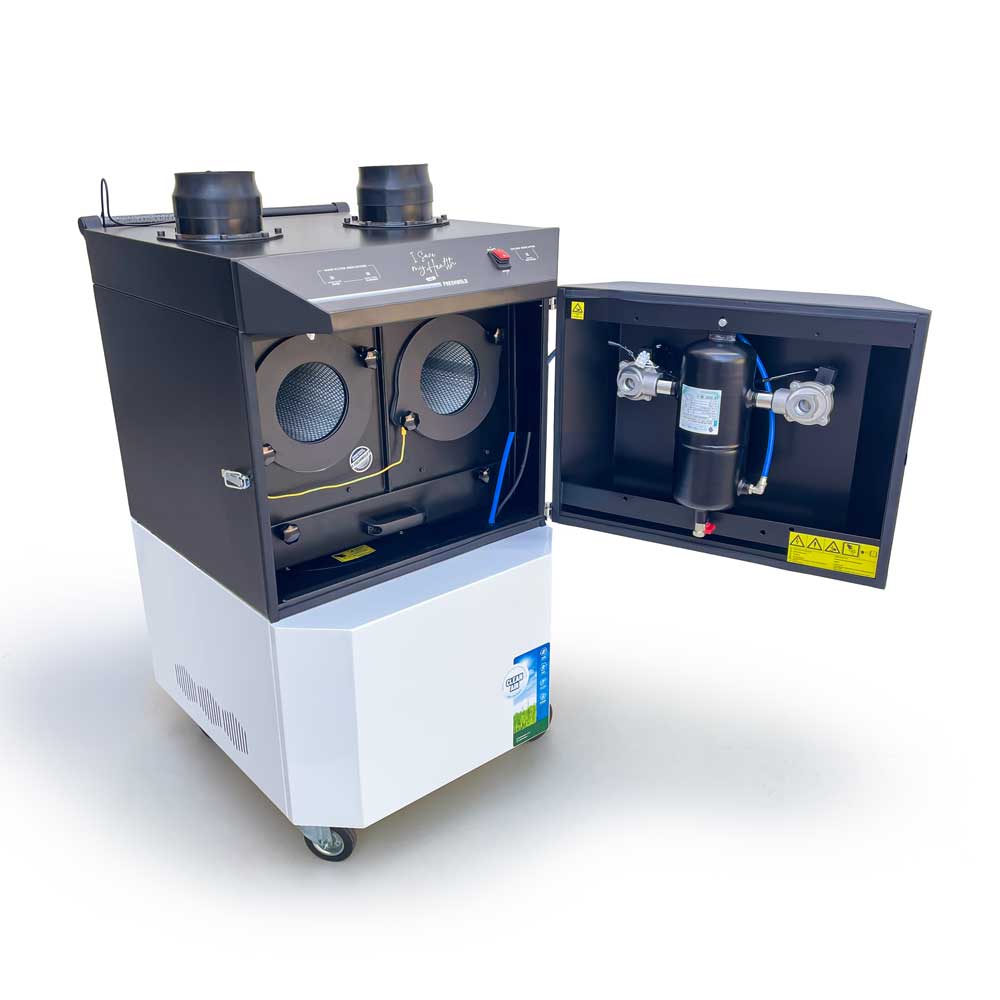

- Automatic Jet-Pulse cleaning system allows filter cleaning without removing filters or opening the housing (see Filter Maintenance Guide)
- Self-cleaning system activated via compressed air inlet
- Integrated dust collection drawer ensures safe, clean, and environmentally friendly dust disposal
- Patented front protective cover enables fast, practical, and easy filter cleaning, replacement, and waste emptying
- High dust holding capacity with a total filter surface area of 10 + 10 = 20 m² (*)
- Internally jointed articulated extraction arm up to 4 meters available upon request

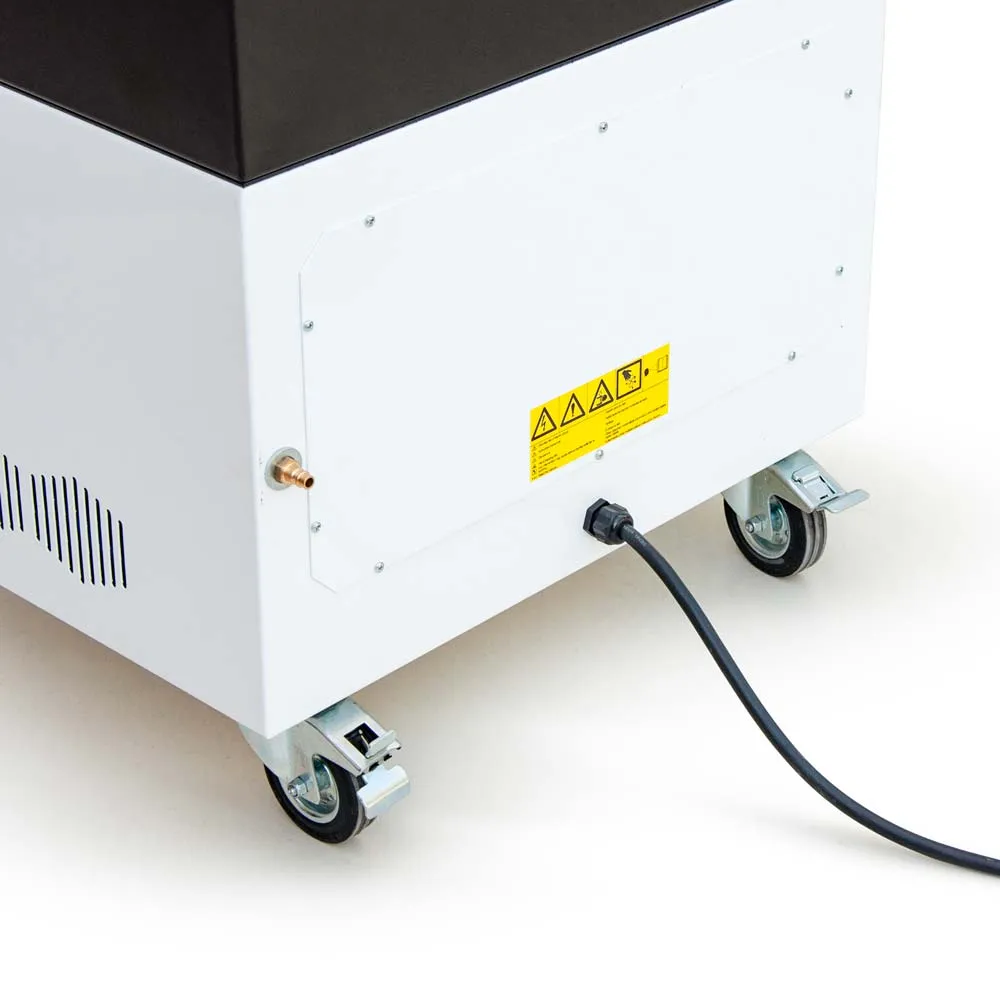

- Mobile design with swivel casters for easy relocation within the workspace
- Lockable wheels provide enhanced operational stability
- Polyamide-rimmed wheels ensure quiet and smooth movement
- 3 m power supply cable
