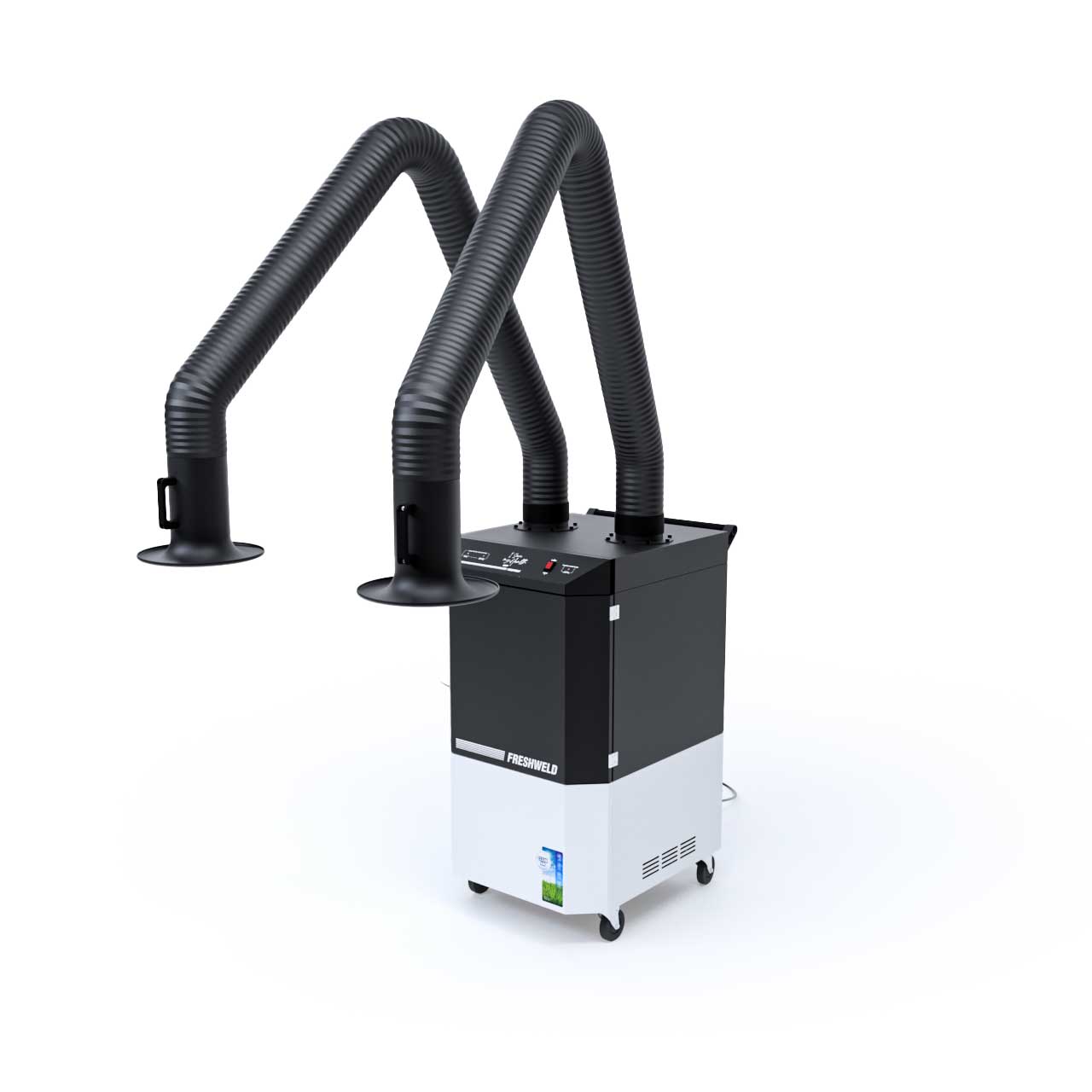

Double Arm Mobile Welding Fume Extraction Unit with Cartridge Cleanable Filter M4/2200
The mobile welding fume extraction unit with cleanable filters and dual articulated arm option protects against welding fume hazards and enables efficient filter cleaning using compressed air.
| Weight | 125 kg |
|---|---|
| Dimensions | 750 × 650 × 1285 mm |
| Double Acrobat Arm Length | Arm-less2 x 2m2 x 3m2 x 4m |
| Arm Joint Type | Arm-lessInner Joint ArmOuter Joint Arm |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| M4/2200 | EXTRACTION ARM LENGTH | max. FAN CAPACITY @1250 Pa | MOTOR POWER | VOLUMETRIC AIRFLOW | EXTRACTION ARM | FILTER INFORMATIONS | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m) | (m³/h) | (kW) | (m³/h) | Joint type | Filter type | Class – Area | Cleaning method | W | L | H | (kg) |
| 141M422000 | w/o Arm | 3000 | 1,1 | 1200 – 2200 | w/o Arm | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 125 |
| 141M422IJ2 | 2 x 2 | 3000 | 1,1 | 1100 – 1400 | Internal | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 145 |
| 141M422IJ3 | 2 x 3 | 3000 | 1,1 | 1100 – 1400 | Internal | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 159 |
| 141M422IJ4 | 2 x 4 | 3000 | 1,1 | 1100 – 1400 | Internal | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 167 |
| 141M422EJ2 | 2 x 2 | 3000 | 1,1 | 1200 – 2200 | External | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 125 |
| 141M422EJ3 | 2 x 3 | 3000 | 1,1 | 1100 – 1400 | External | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 145 |
| 141M422EJ4 | 2 x 4 | 3000 | 1,1 | 1100 – 1400 | External | Cartridge | F9 – 2×8 m² | 4-6 bar Manually | 650 | 750 | 1285 | 159 |
Applications
- Mobile Fume Extraction Unit with F9 Manual Cleanable Cartridge Filter, Double Acrobatic Arm
- Designed to filter harmful welding fumes that may contain hazardous substances released during welding operations.
- Suitable for filtering harmful welding fumes released during the processing of unalloyed and low-alloy steels.
- Suitable for medium density dust and fume filtration.
- It has ideal suction and filtering power.
- It can be operated comfortably with its flexible arm structure at 2 different welding points at the same time
- Unused arm can be closed easily thanks to the flow-adjustable flapper
Features
- 2 pcs F9-class cartridge filters in the Fine Filter category, compliant with EN779 standards, effective for particles between 0.3 ~ 1 μm
- Dual articulated extraction arms with 3-meter length
- Main filter contamination warning minimizes downtime by limiting maintenance to filter replacement intervals
- Cleanable Filters can be cleaned with compressed air without being removed from the housing (see Filter Maintenance Guide)
- Integrated dust collection drawer enables safe and environmentally friendly dust disposal
- Patented front protective cover allows fast, practical, and easy filter cleaning, replacement, and waste emptying
- High dust retention capacity with a total cleanable filter surface area of 10 + 10 = 20 m² (*)
- Internally jointed articulated extraction arm option available up to a maximum length of 4 meters
- Easy mobility to desired locations thanks to swivel caster design
- Lockable wheels ensure operational stability
- Polyamide-rimmed rubber wheels provide quiet and smooth movement
- 3 m power supply cable
