OIL MIST FILTRATION SYSTEMS Oil Mist Collection

Industrial Oil Mist Filter Collection and Fume Extraction Unit for CNC Machines Using Cutting Oil – SKY Oil Mist

Name: SKY Oil Mist Filter for CNC Machines Using Cutting Oil • NEW
SKU: 603SKY0250
Price: 2371 EUR
Availability: InStock

The SKY Oil Mist Filter efficiently captures oil mist, micro-aerosols, and harmful fumes generated during machining processes using cutting oil in CNC machines. With its recyclable oil recovery feature, it protects the environment while increasing production efficiency. Compatible with leading CNC brands such as DMG Mori, Mazak, and Haas.

Place of Use

Airflow m³/h

Clear

Weight	17 kg
Dimensions	390 × 390 × 470 mm
Place of Use	Cutting Oil Filtering
Airflow m³/h	250 m³/h500 m³/h1000 m³/h1500 m³/h2000 m³/h2500 m³/h

Local Manufacturing,<br>Global Standards

Local Manufacturing,
Global Standards

99% Filtration
Efficiency

Energy-Efficient and<br>Sustainable Design

Energy-Efficient and
Sustainable Design

Full Compliance with<br>OHS / HSE Regulations

Full Compliance with
OHS / HSE Regulations

SKU : 603SKY0250 Categories : OIL MIST FILTRATION SYSTEMS, Oil Mist Collection Tag : New and Popular Brand: FRESHWELD®

Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.

Technical Specifications Table

SKY	INLET	MOTOR POWER	AIRFLOW	NOISE LEVEL	FILTER TYPE	FILTER CLASS	FILTER PROPERTIES	PLACE OF USE	SURFACE AREA	DIMENSIONS	WEIGHT
FW CODE	(Ø) – mm	(kW)	(m³/h)	dB(A)					(m²)	Ø x h mm	(kg)

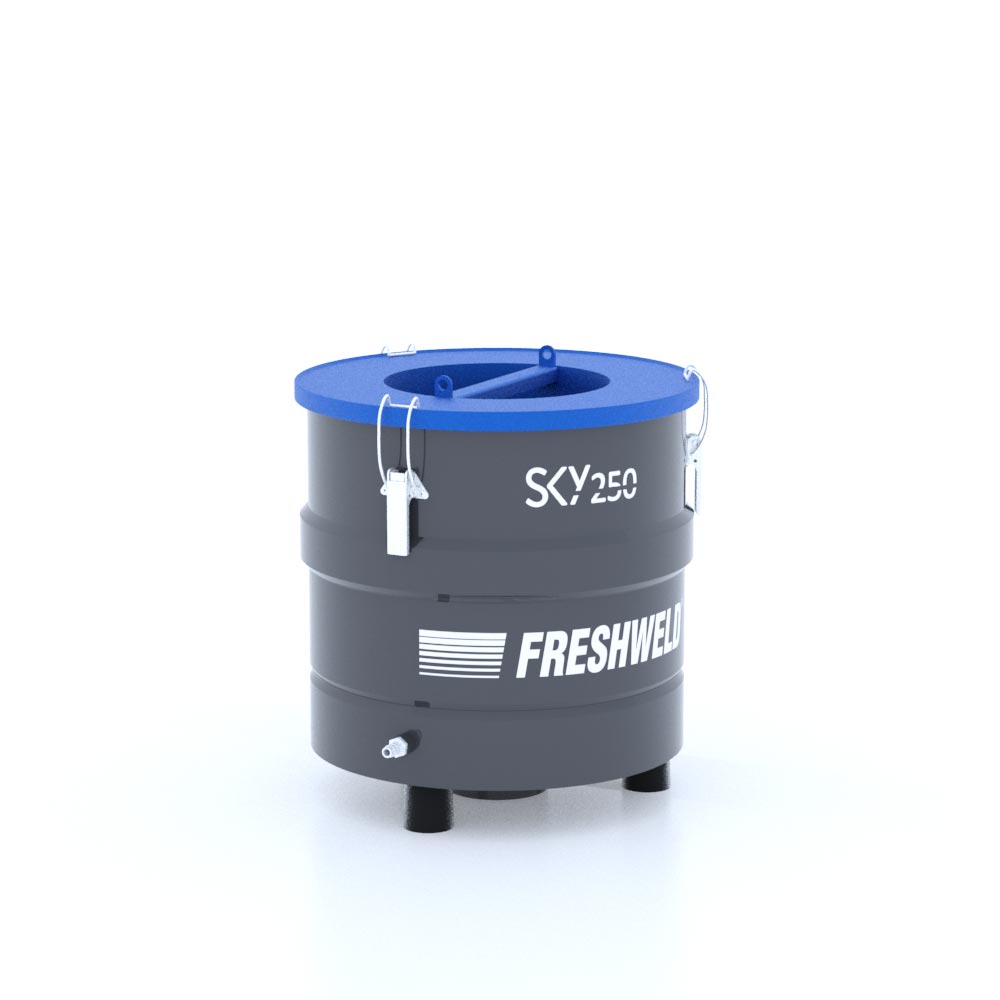

603SKY0250	100	0,12	250	62	Cartridge	M	Coalescence	Cutting Oil	2	390×470	17
603SKY0500	100	0,18	500	62	Cartridge	M	Coalescence	Cutting Oil	2	390×470	18
603SKY1000	150	0,37	1000	64	Cartridge	M	Coalescence	Cutting Oil	6	490×540	30

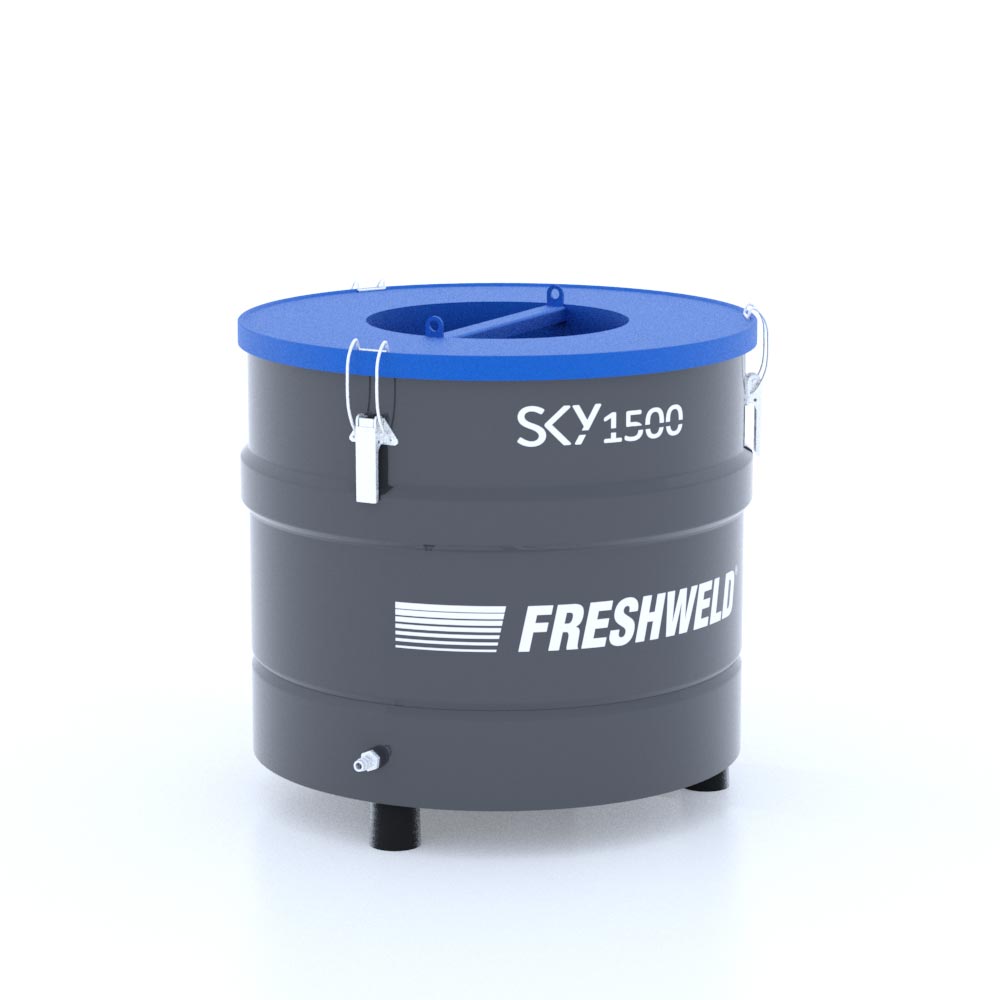

603SKY1500	150	0,55	1500	64	Cartridge	M	Coalescence	Cutting Oil	6	490×540	33
603SKY2000	200	0,75	2000	65	Cartridge	M	Coalescence	Cutting Oil	10	590×590	46
603SKY2500	200	1,1	2500	65	Cartridge	M	Coalescence	Cutting Oil	10	590×590	50

Oil mist and microscopic particles generated during machining processes with cutting oil in CNC lathes, milling machines, and washing systems pose serious risks to both operator health and machine performance.
The SKY Oil Mist filter system is a compact, high-efficiency oil mist filtration solution specifically designed to capture cutting oil mist and airborne contaminants at the source.

Why SKY Oil Mist?

99.97% Filtration Efficiency: Captures particles down to 0.3 microns using centrifugal pre-filtration combined with an H13-class HEPA oil mist filter.
Modular Configuration: Can be customized with pre-filters, activated carbon filters, and extended filter surface options for cutting oil applications.
Easy Installation & Maintenance: Ready for operation in just 15 minutes. Filter replacement can be performed easily by operators.

Contact us for tailored solutions. Together, we determine the ideal airflow rate and oil mist filtration system suitable for your cutting oil process.

Application Areas

CNC lathes & vertical machining centers
Cutting and washing machines
Production lines using cutting oil
Grinding, polishing, and honing operations
Component washing systems

Improve indoor air quality in all metalworking environments with SKY Oil Mist, enhancing both operator comfort and production efficiency.

Frequently Asked Questions (FAQ)

1. Which CNC machines are compatible with SKY Oil Mist?: It is compatible with most CNC machining centers, lathes, milling, grinding, and washing machines. Its compact design allows easy installation even in limited spaces.
2. How often should the filters be replaced?: Depending on operating intensity, pre-filters typically require replacement every 3–6 months, while HEPA filters last approximately 6–12 months. Airflow performance can be monitored via an optional manometer.
3. Can I install the unit myself?: Yes. No technical service support is required. All mounting accessories and the user manual are supplied with the unit.
4. What is the energy consumption?: Thanks to energy-efficient motor technology, average power consumption ranges between 0.25 and 0.75 kWh, ensuring low operating costs.
5. Can the unit be relocated if needed?: Yes. With an optional mobile stand or wheeled base, the unit can be easily moved within the facility.
