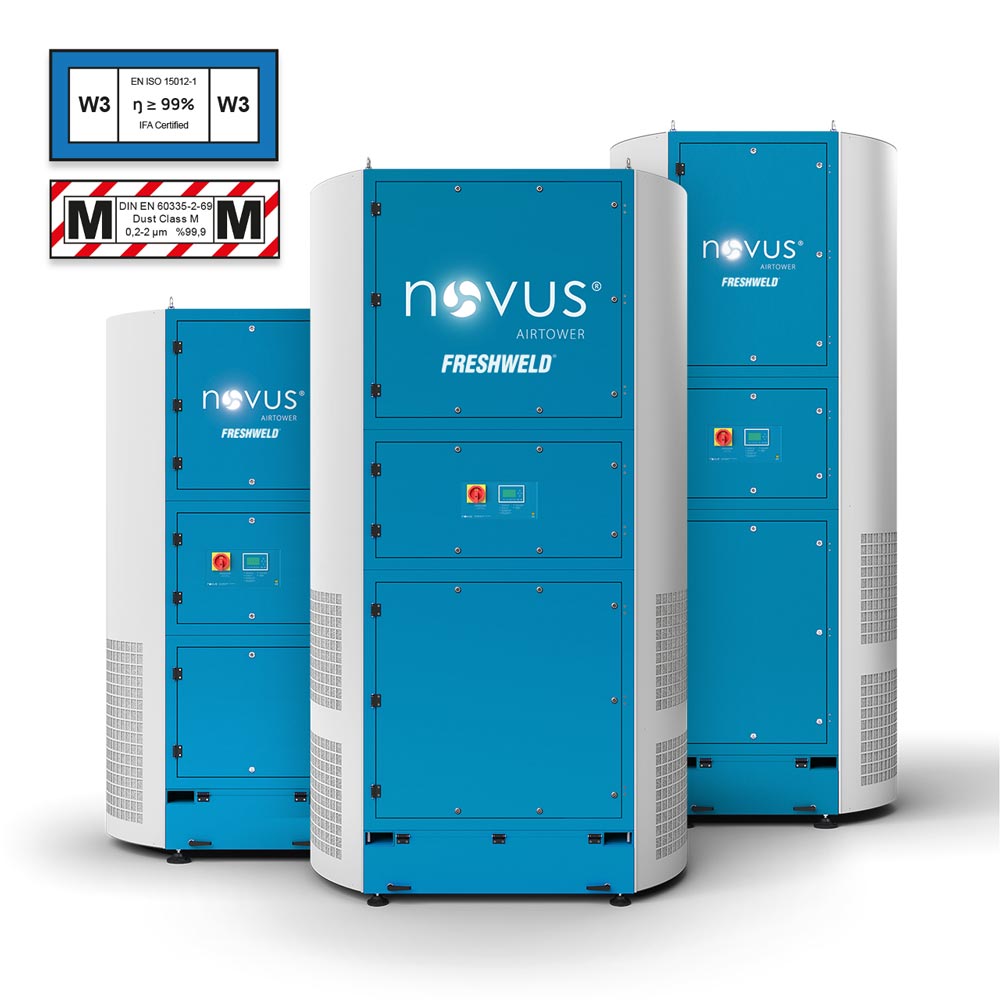

High-Volume Welding Fume Filtration Tower IFA W3 Certified NOVUS Central Industrial System
IFA W3 Certified NOVUS W3 Welding Fume Filtration Tower systems are compact, high-capacity central industrial filtration solutions engineered for high-efficiency welding fume, fine dust, and hazardous particulate removal. With flexible airflow design and automatic filter cleaning, they are ideal for large-scale facilities requiring safe air recirculation.
| Weight | 990 kg |
|---|---|
| Dimensions | 2066 × 1756 × 3643 mm |
| Hava Debisi | 5000m³10000m³15000m³20000m³ |
Please be advised: By communicating via WhatsApp, you are considered to have accepted the relevant legal obligations and GDPR responsibilities. Your mobile operator may apply charges for WhatsApp usage. FRESHWELD® cannot be held liable for any potential issues that may arise.
Technical Specifications Table
| NOVUS W3 | AIRFLOW | MOTOR POWER | FILTRATION STAGES | TOTAL FILTRATION AREA | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| FW CODE | (m³/h) | (kW) | 1° | 2° | 3° | W | L | H | (kg) | |
| 711IFAW305 | 5000 | 5,5 | 4 x M6 Nano – 21m² | 1 x F9 – 39m² | 3 x G4 – 4m² | 135m² | 1619 | 1675 | 2885 | 990 |
| 711IFAW310 | 10000 | 7,5 | 4 x M6 Nano – 37,8m² | 1 x F9 – 39m² | 6 x G4 – 8m² | 238,2m² | 1619 | 1675 | 3643 | 1280 |
| 711IFAW315 | 15000 | 11 | 6 x M6 Nano – 37,8m² | 1 x F9 – 65m² | 6 x G4 – 8m² | 339,8m² | 2066 | 1756 | 3643 | 1480 |
| 711IFAW320 | 20000 | 15 | 6 x M6 Nano – 37,8m² | 1 x F9 – 65m² | 6 x G4 – 8m² | 339,8m² | 2066 | 1756 | 3643 | 1590 |
IFA W3 Certified NOVUS Welding Fume Filtration Tower is Fully Automatic, Programmable, Plug & Play Industrial Factory Ventilation System
- Designed for production areas where large workpieces are manufactured and local extraction systems such as articulated arms cannot be used.
- Suitable for emissions generated from various technical processing operations, including welding fumes, fine dust, particulates, aerosols, and gaseous air contaminants.
Welding operations are rarely performed in the same position and at the same working height. Therefore, effective welding fume filtration requires flexible extraction technology and consistently high filtration performance.
The FRESHWELD NOVUS W3 Airtower is specifically engineered for variable welding stations, large-scale production areas, and high-tonnage facilities with intensive robotic welding operations. Manufactured in full compliance with IFA W3 certification standards, it ensures safe recirculation of purified air in accordance with international occupational health regulations. Operating on a “Plug & Play” principle, it requires no additional ducting, discharge, or ventilation connections and is ready for immediate operation upon installation.
Position the unit, connect power and compressed air, and your industrial ventilation system will be operational within a short time—experience improved indoor air quality and workforce efficiency within one hour.
Main Application Areas
- Processes generating heavy soot and welding fumes
- Dust and particulate-producing manufacturing operations
- Armored and military vehicle manufacturing facilities
- Large-scale industrial workspaces
- Facilities with intensive robotic welding systems
- Plants generating aerosol emissions
- Automobile, truck, and bus manufacturing plants
- Defense industry production facilities
- Agricultural machinery manufacturing plants
- Heavy industrial machinery production facilities
- Foundry and metal processing plants
- Iron and steel industry facilities
- Aerospace manufacturing and maintenance facilities
- Home appliance manufacturing plants
- Hardware production facilities
- High-tonnage production environments
Features
- The FRESHWELD Novus W3 Central Industrial Filtration Tower is suitable for workspaces of all sizes.
- Operates as a standalone filtration tower and does not require additional hoods, ductwork, or chimney connections.
- Requires only an electrical connection and a compressed air connection for automatic filter cleaning.
- Constructed from advanced impact-, scratch-, and heat-resistant polycarbonate materials.
- Airflow capacity can be optimized from 5,000 m³/h up to 20,000 m³/h, engineered according to specific facility requirements (refer to Technical Specifications table).
Options
- Manufactured and tested according to IFA W3 certification standards,
- Remote control capability from a safe distance,
- Integrated air quality sensor enabling operation only when pollution is detected and automatic shutdown after purification—supporting reduced carbon footprint levels,
- Efficiency package for additional energy savings and noise reduction,
- Enhanced safety package against flying sparks and fire risks,
- Activated carbon filter media for gas purification and odor reduction,
- Reduced operating costs with nano-fiber layered filter cartridges.
